Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Drive/Propeller Shaft >> BE41.10-P-1000-01F Propeller Shaft

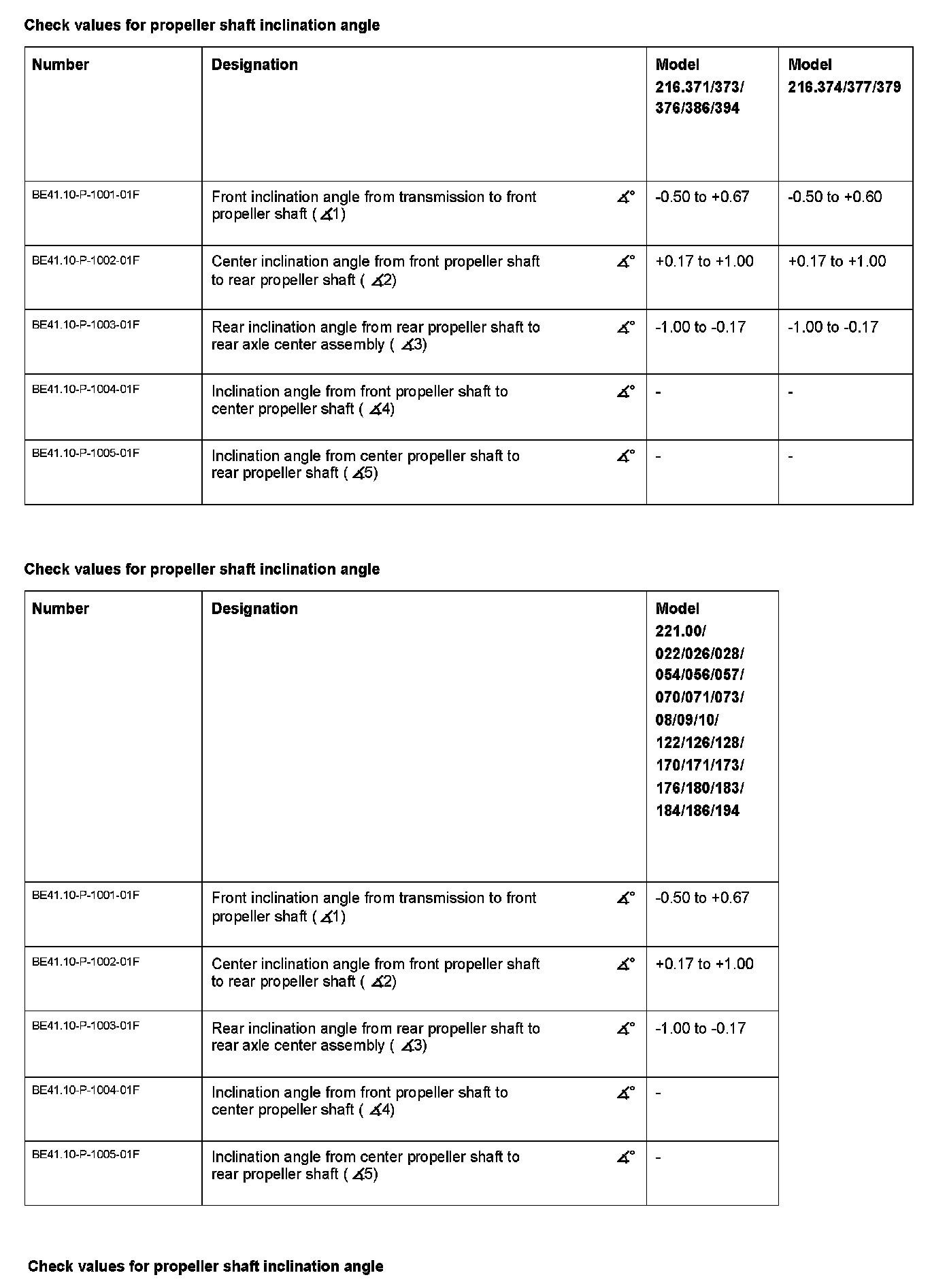

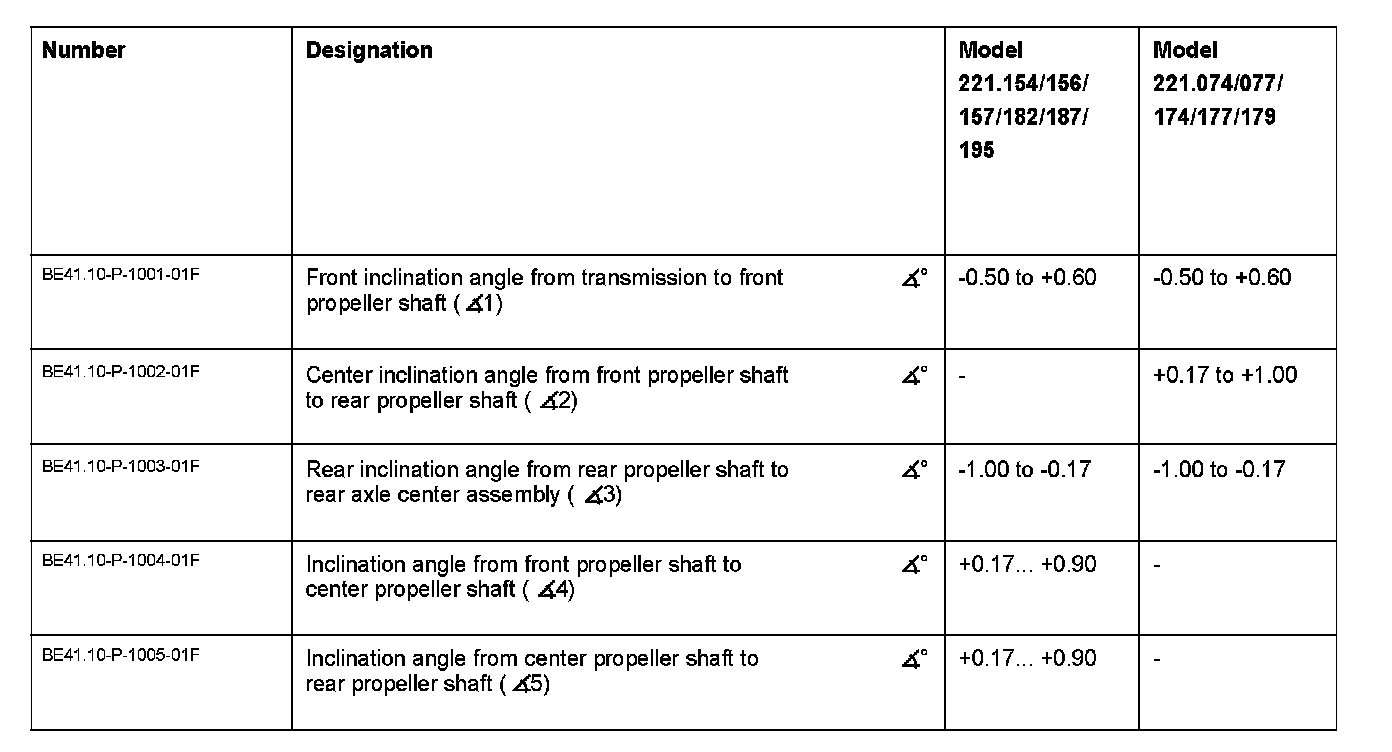

BE41.10-P-1000-01F Propeller Shaft



BE41.10-P-1000-01F Propeller Shaft
Model 216, 221
