Mercedes Benz
>>
2012
>>
S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transmission and Drivetrain
>>
Differential Assembly
Differential Assembly
AR35.31-P-0530SX Rear Axle
-
with TRANSMISSION 722.9/6

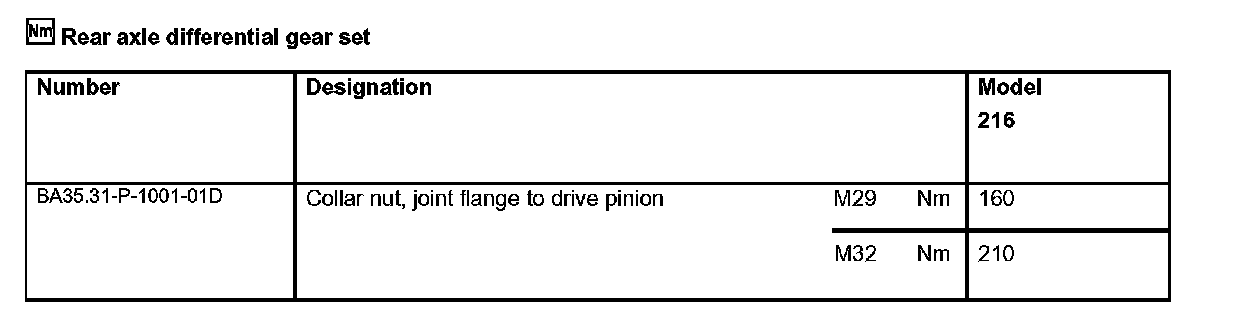

Rear axle differential gear set:

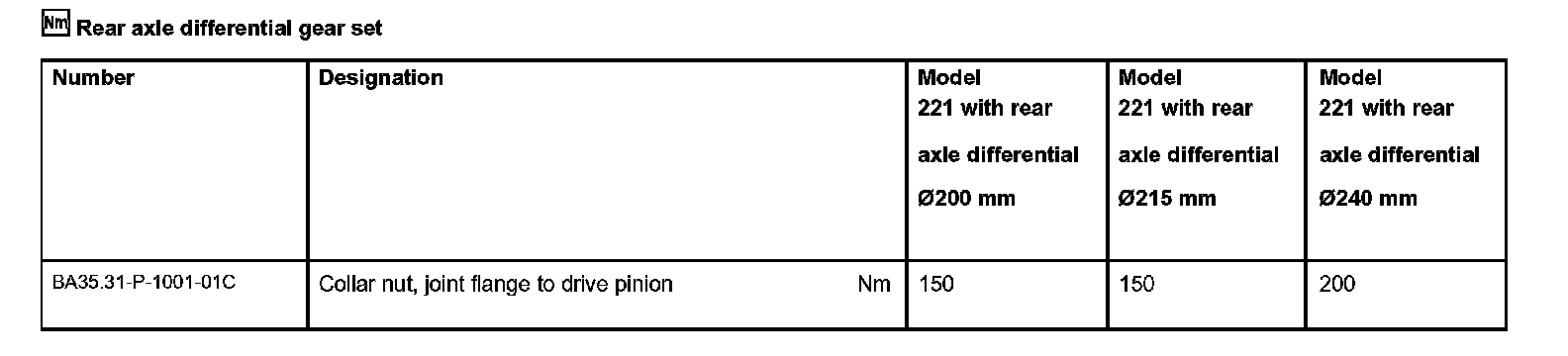

Rear axle differential gear set:
