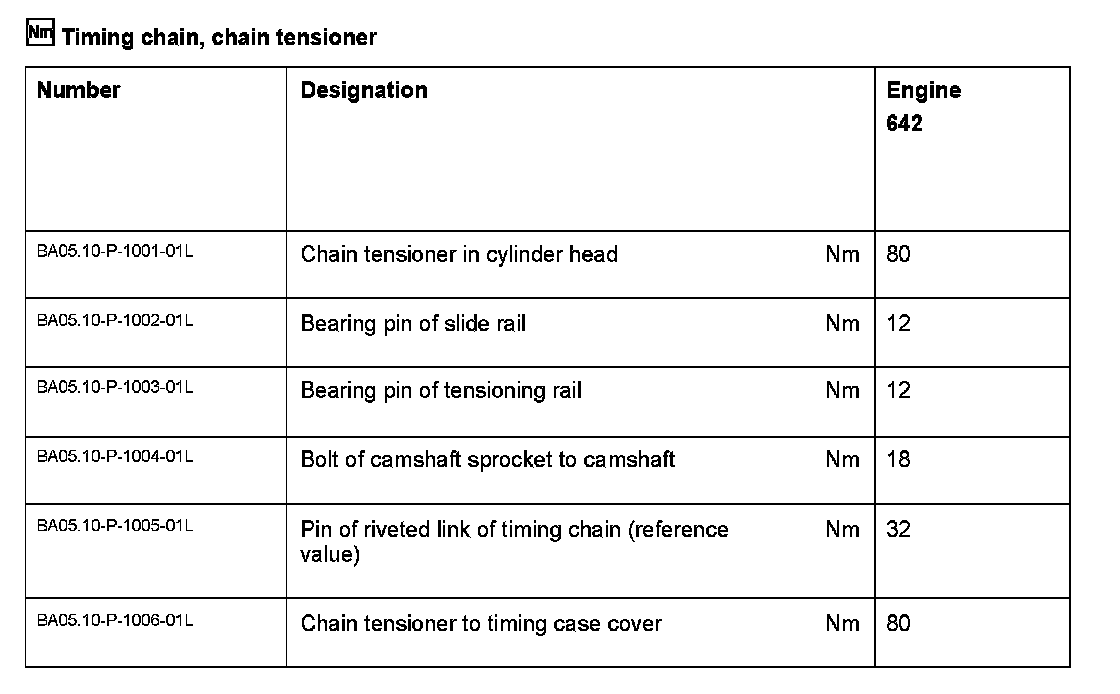

BA05.10-P-1000-01L Timing Chain Drive, Toothed Belt Drive
BA05.10-P-1000-01L Timing Chain Drive, Toothed Belt Drive
BA05.10-P-1000-01L
Timing Chain
Drive, Toothed Belt Drive
ENGINE 642
