Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Oil Pan, Engine

Oil Pan, Engine

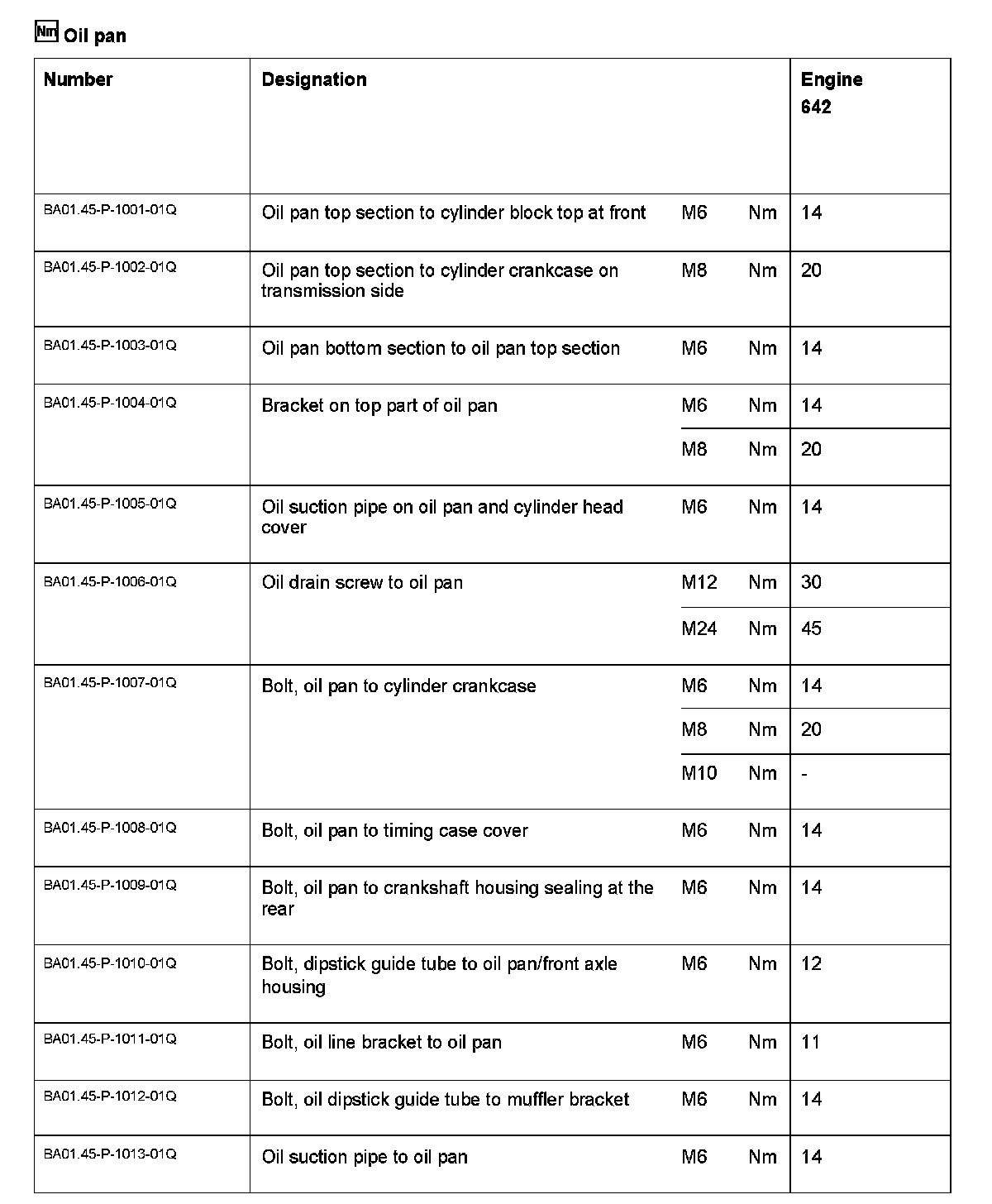

BA01.45-P-1000-01Q Oil Pan
ENGINE 642
