FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Brake Hose/Line
Brake Hose/Line

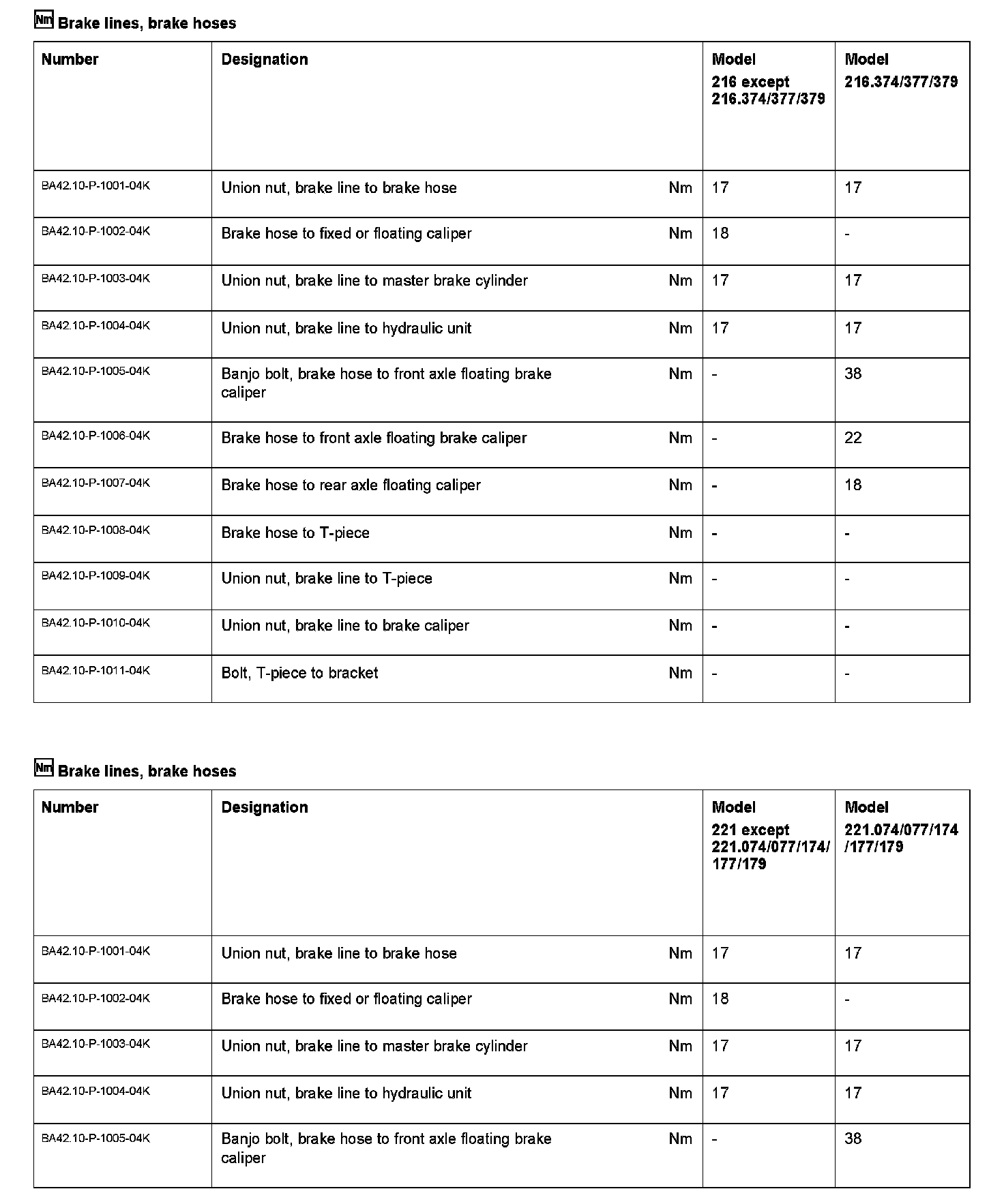

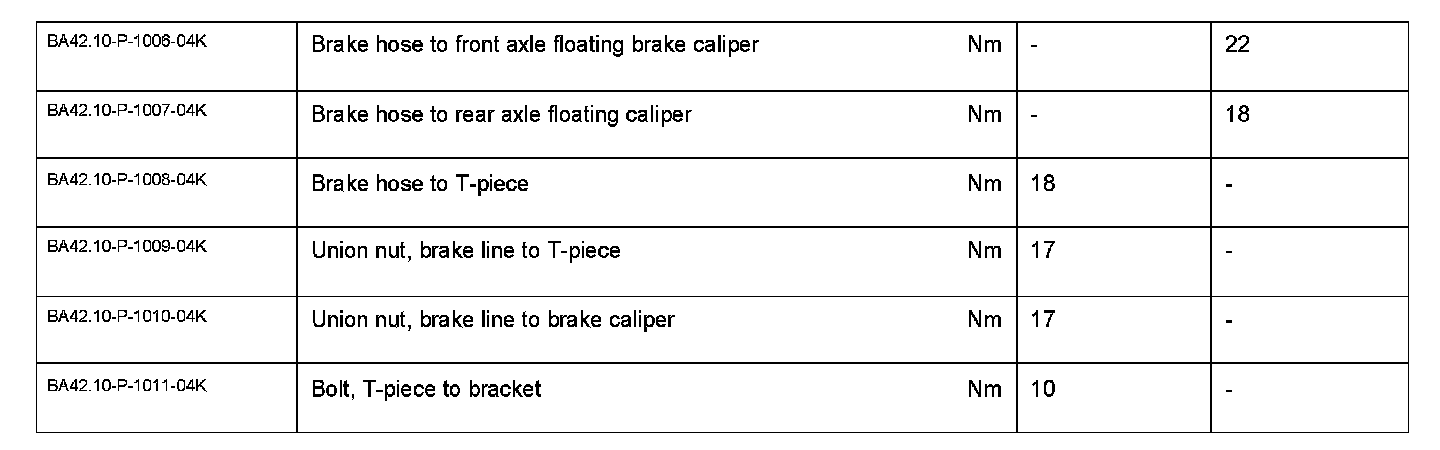

BA42.10-P-1000-04K Brake Lines, Brake Hoses
Model 216, 221
