Combination Switch: Service and Repair



AR54.25-P-2800SX Remove/Install Combination Switch

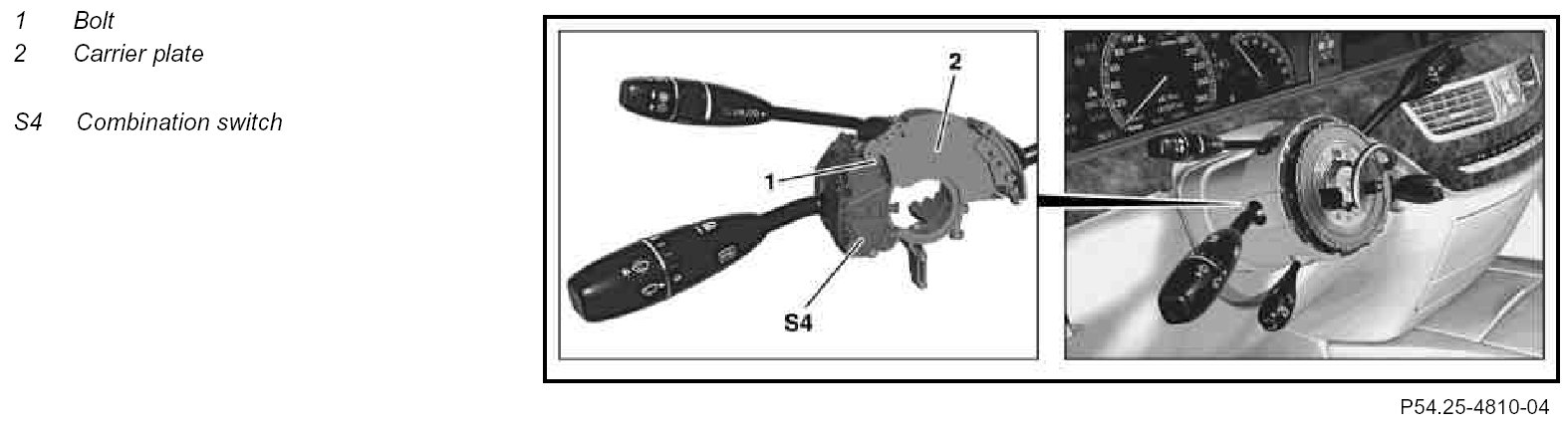

Component Identification:

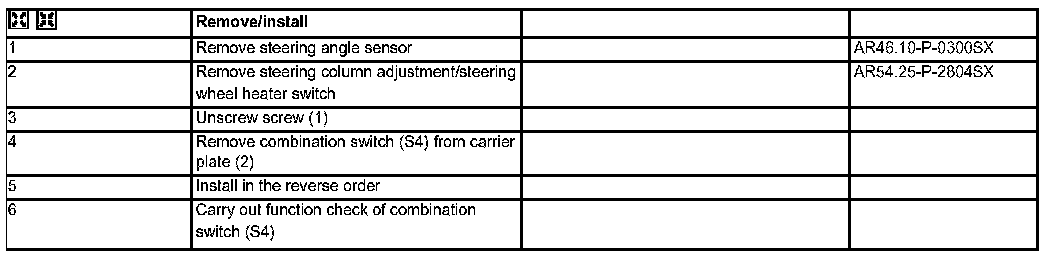

Steps 1 - 6:
