Oil Temperature Sensor/Switch: Service and Repair

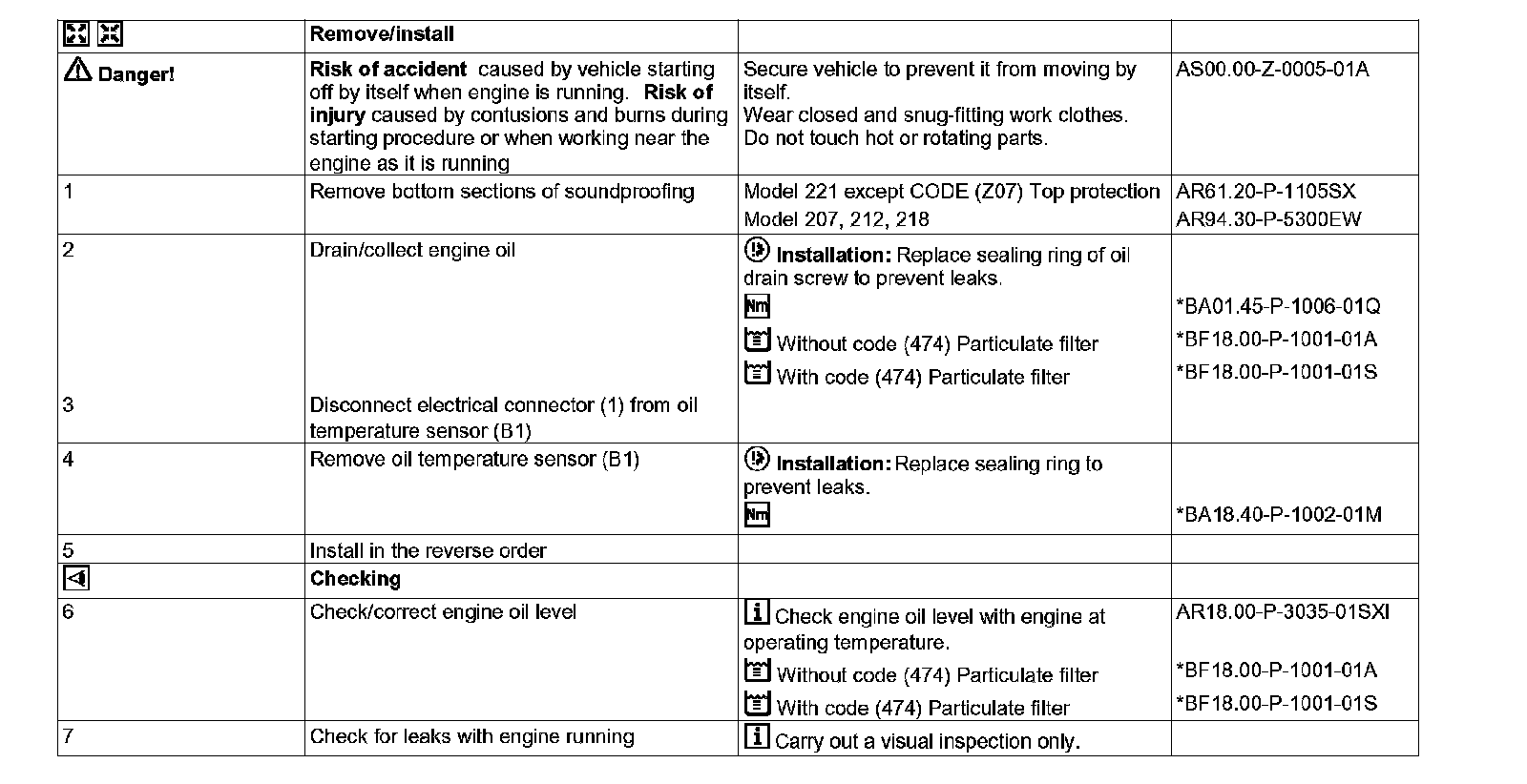

AR18.40-P-4123SXI Remove/Install Sensor For Engine Oil Temperature
-ENGINES 642 in MODEL 207, 212, 218, 221

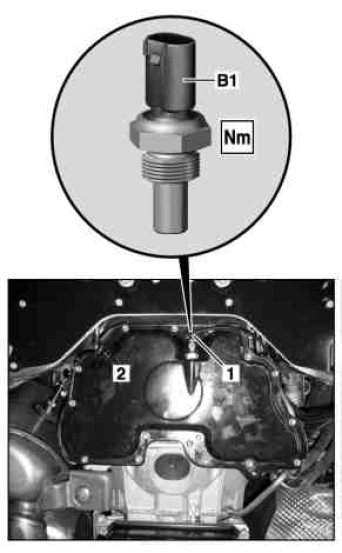

1 Electrical connector
2 Oil pan bottom section

B1 Oil temperature sensor
