Integrated Accessory Switch Assembly: Diagrams

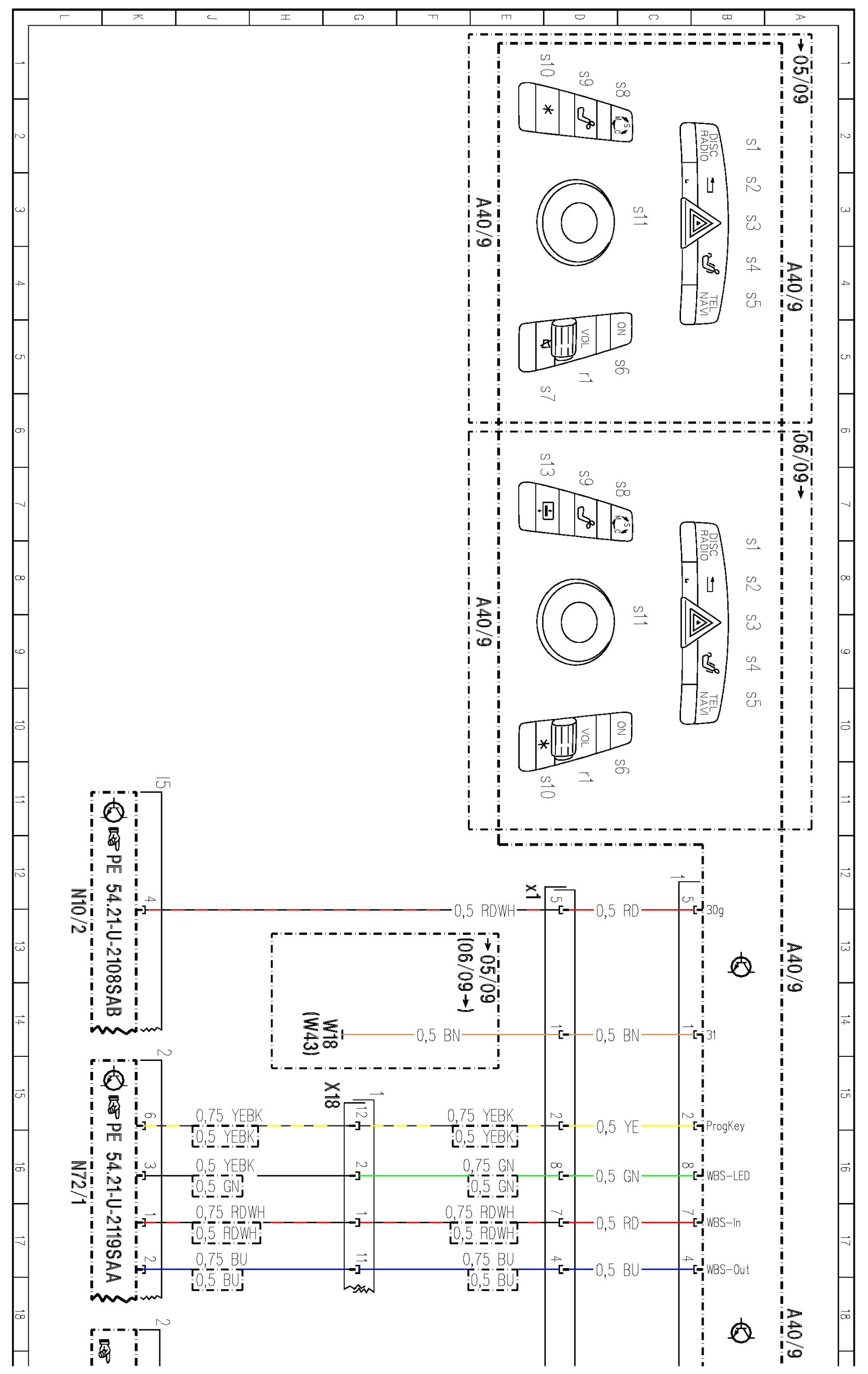

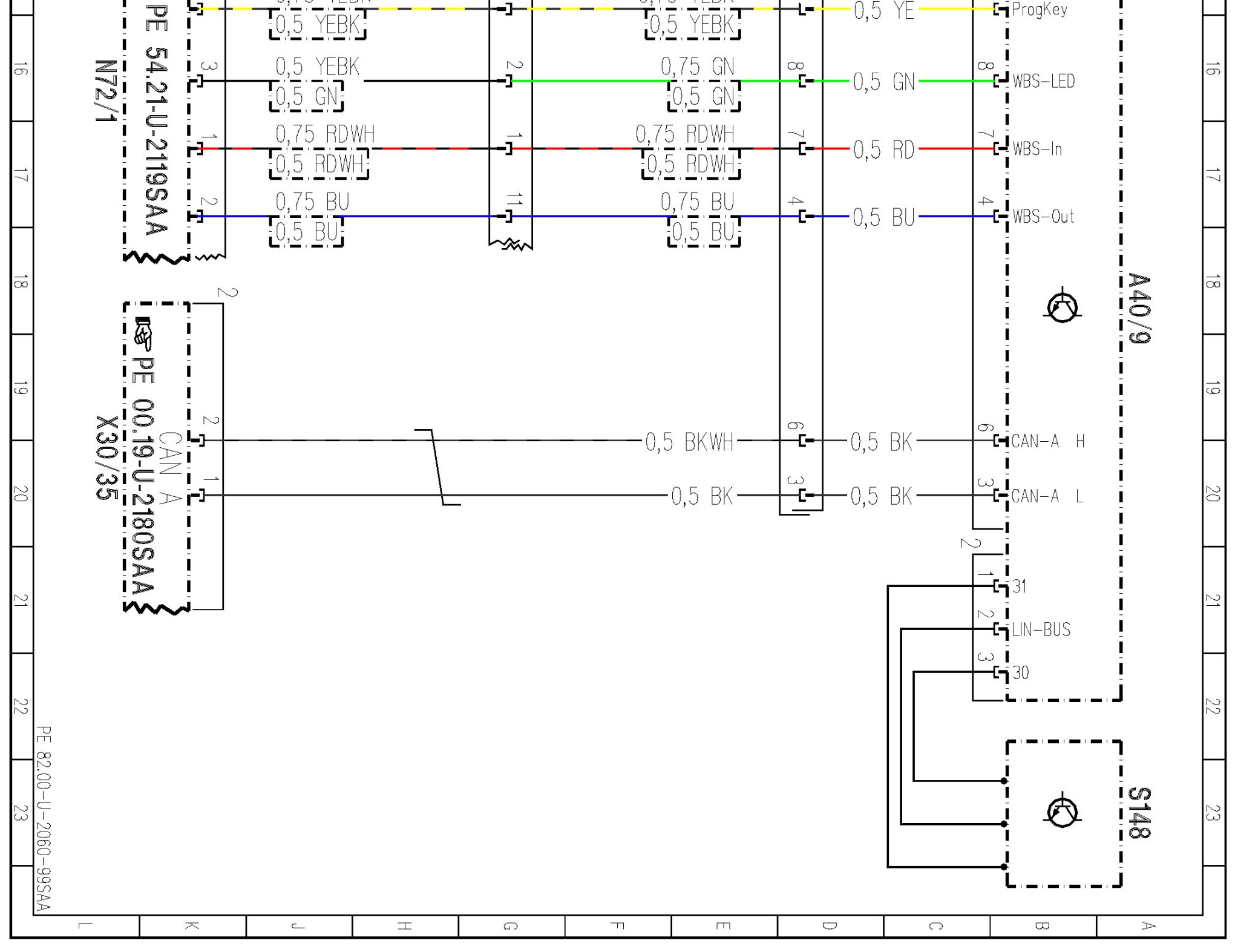

PE82.00-U-2060SAA Front Central Operating Unit

MODEL 221
- Control unit A40/9

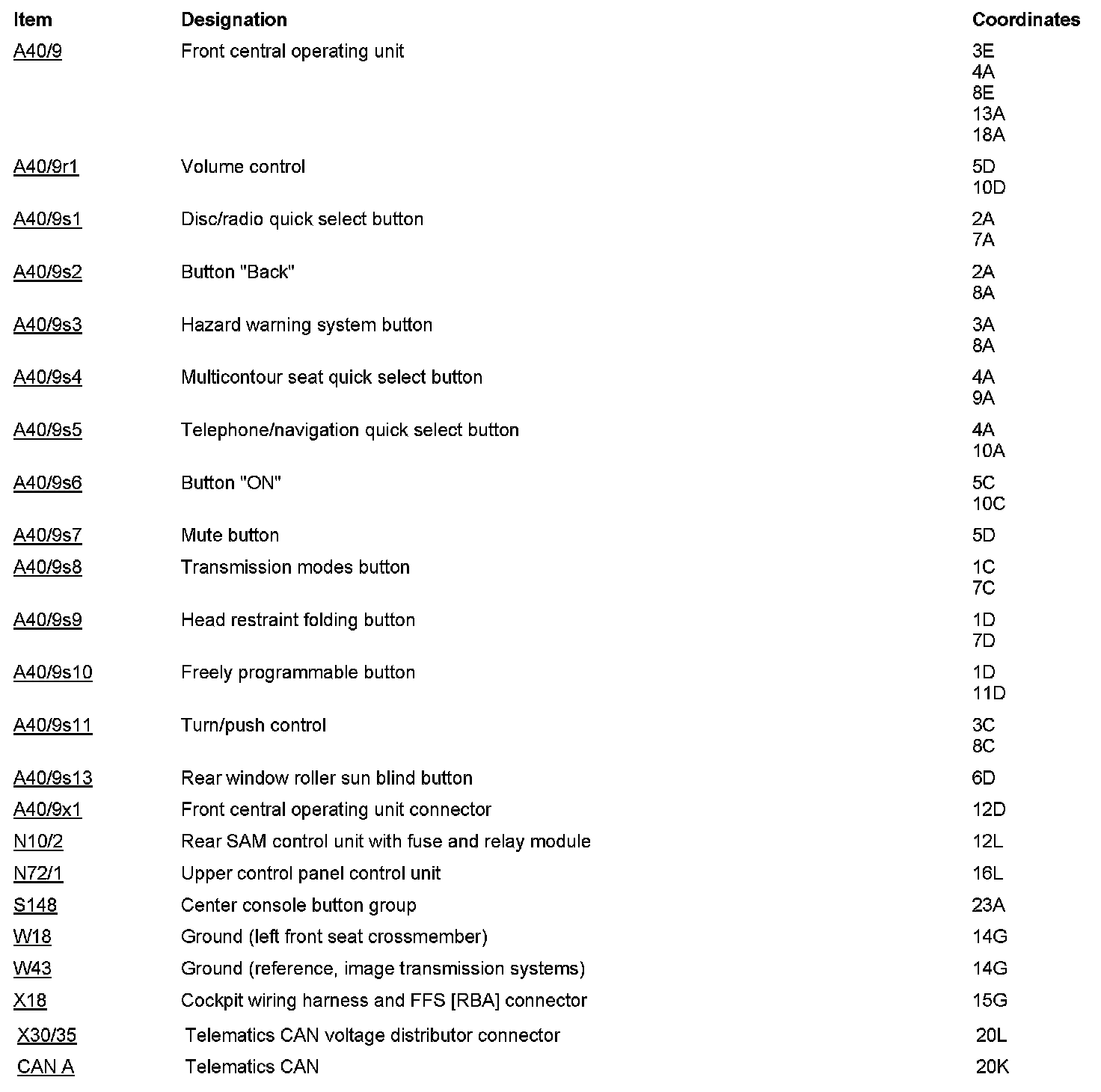

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
