AR91.40-P-0681SX Remove/Install Rear Seat Belts
AR91.40-P-0681SX Remove/Install Rear Seat Belts
AR91.40-P-0681SX Remove/Install Rear
Seat Belts
Component Identification:

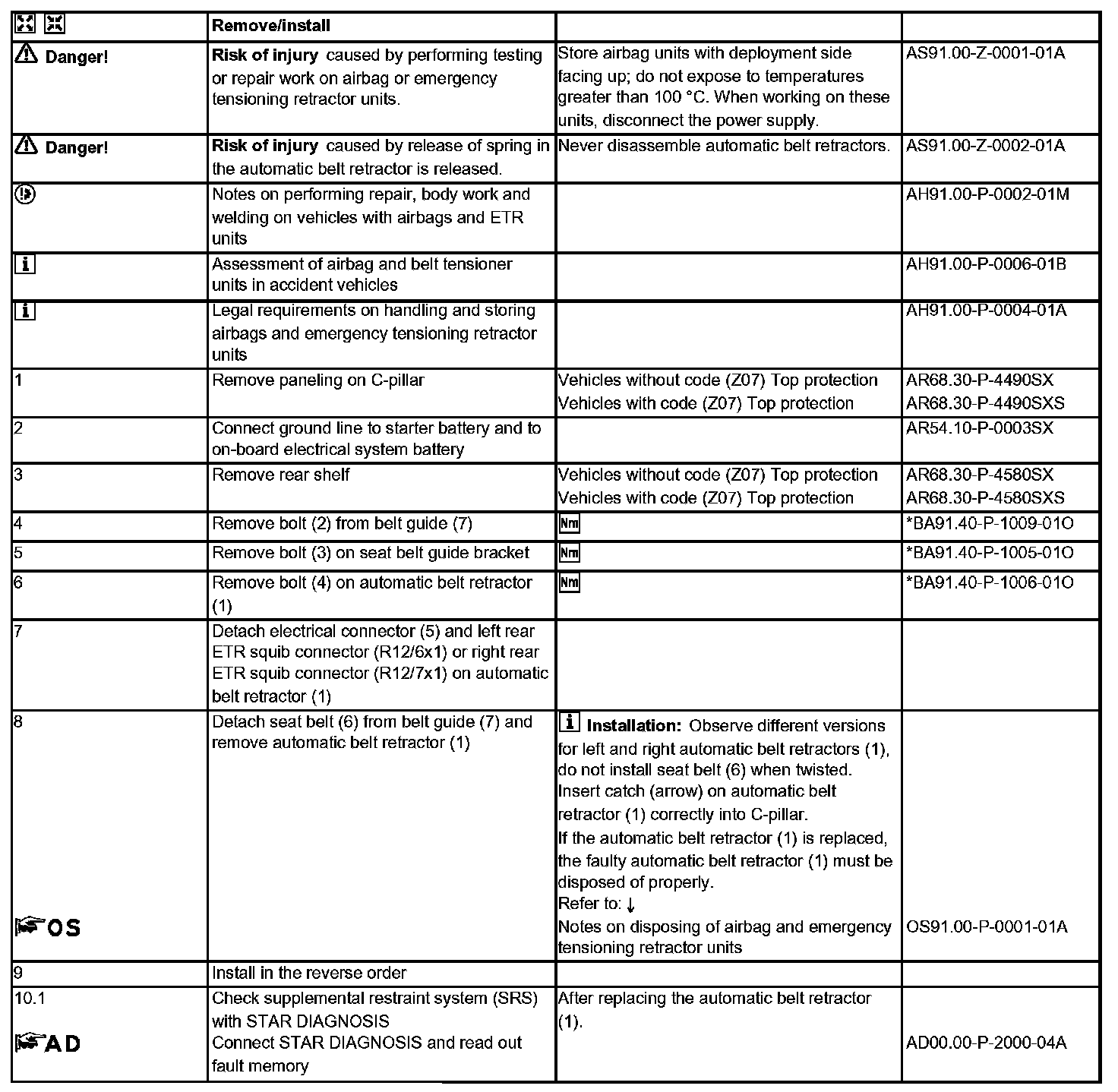

Steps 1 - 10.1:

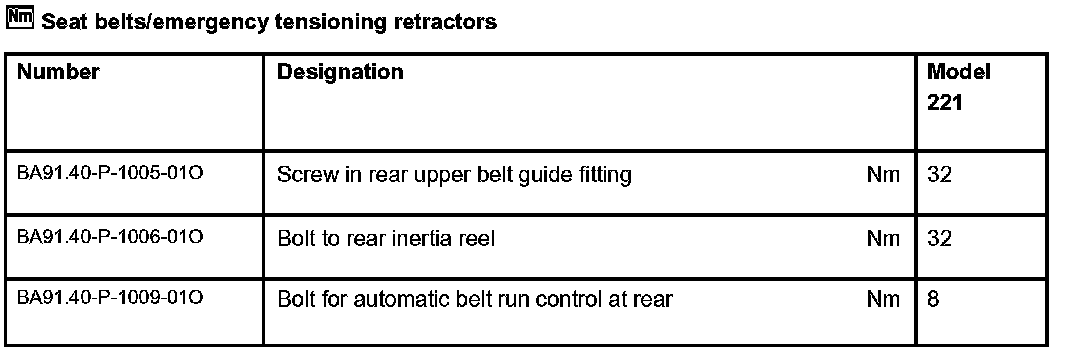

Seat Belts/Emergency Tensioning Retractors:
