AR91.40-P-0630SX Remove/Install Seat Belt With Emergency Tensioning Retractor



AR91.40-P-0630SX Remove/Install Seat Belt With Emergency Tensioning Retractor

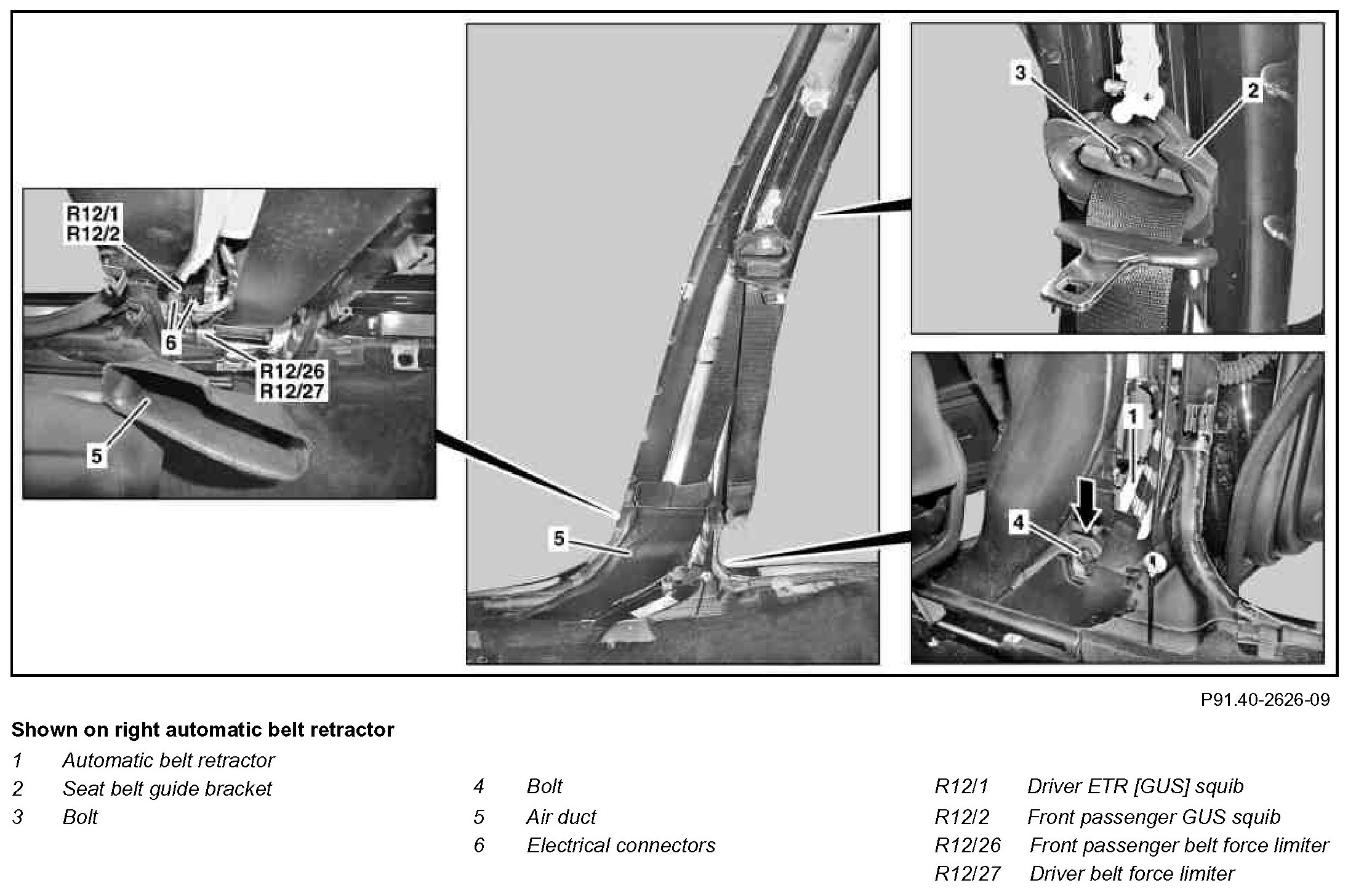

Component Identification:

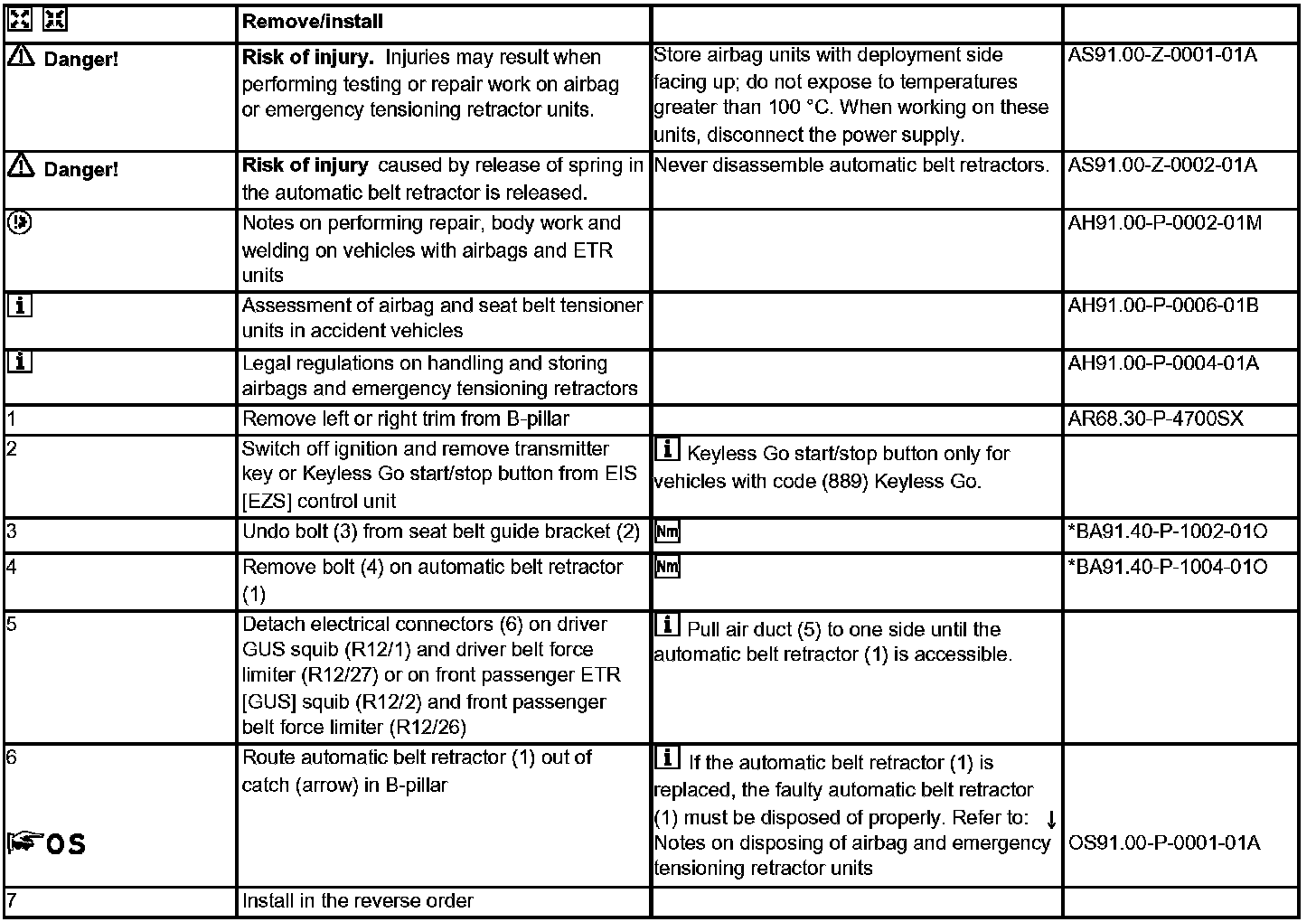

Steps 1 - 7:




Steps 8.1:

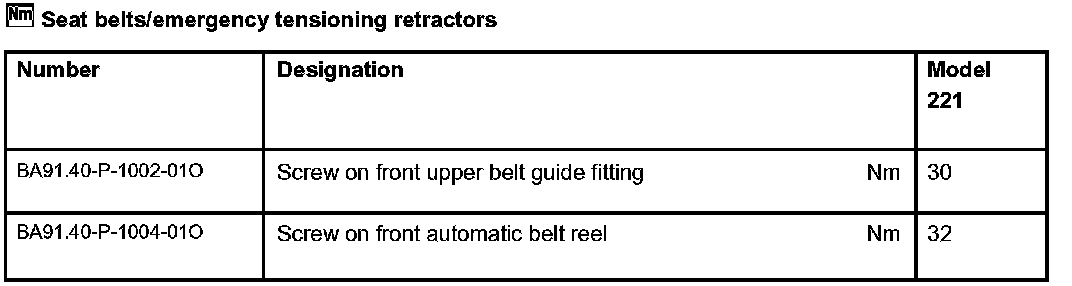

Seat Belts/Emergency Tensioning Retractors:

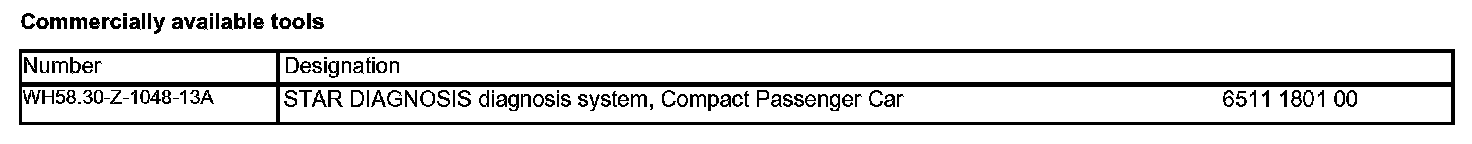

Commercially Available Tools:
