Clockspring Assembly / Spiral Cable: Service and Repair



AR46.10-P-0200SX Remove/install clock spring contact

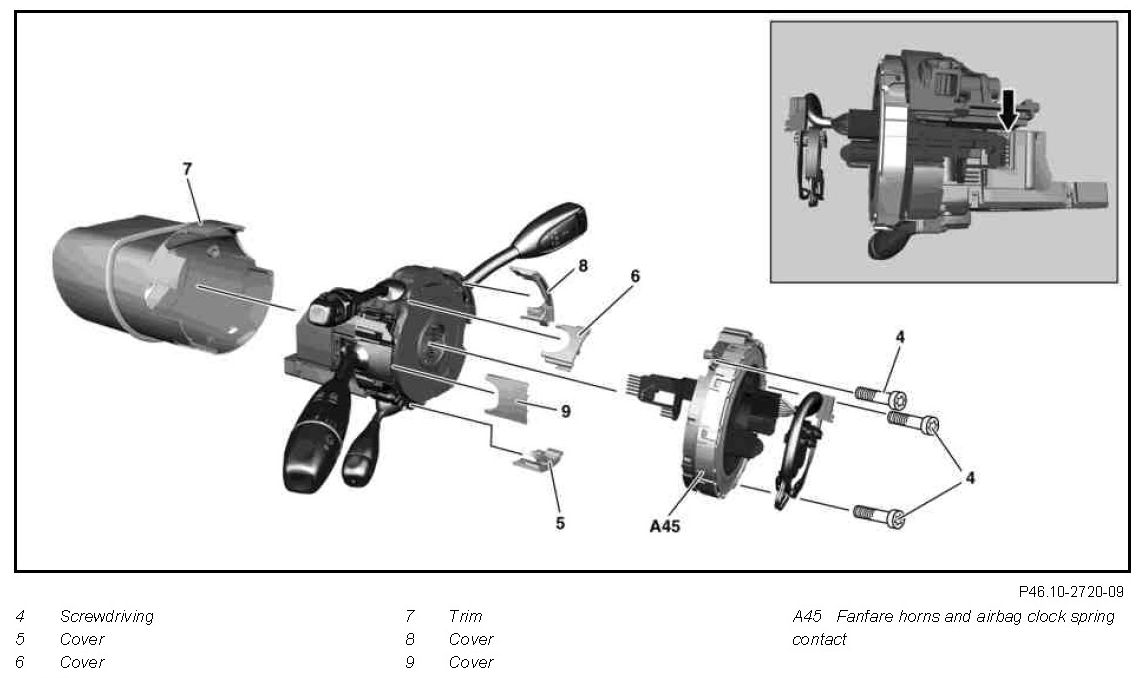

Component Identification:

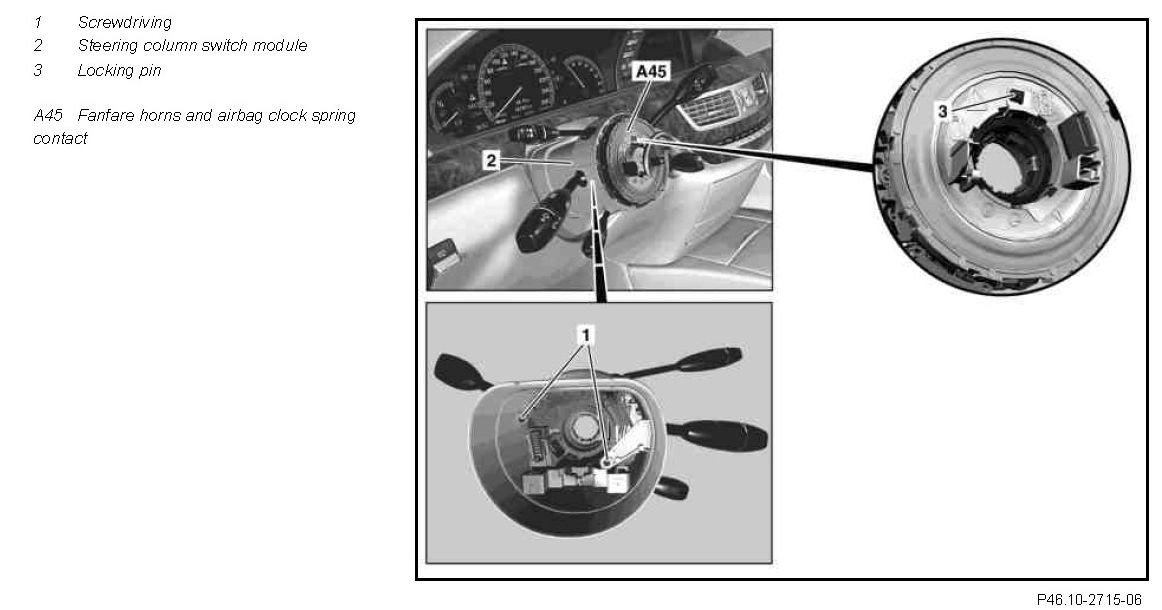

Component Identification:

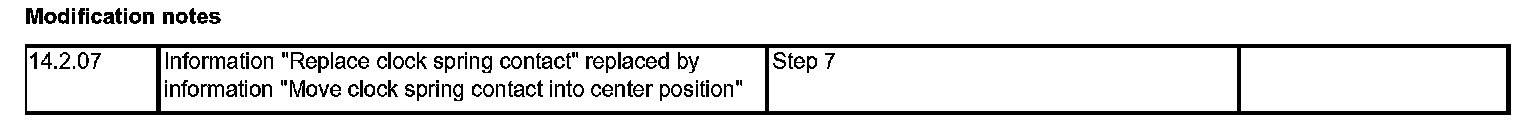

Modification notes:

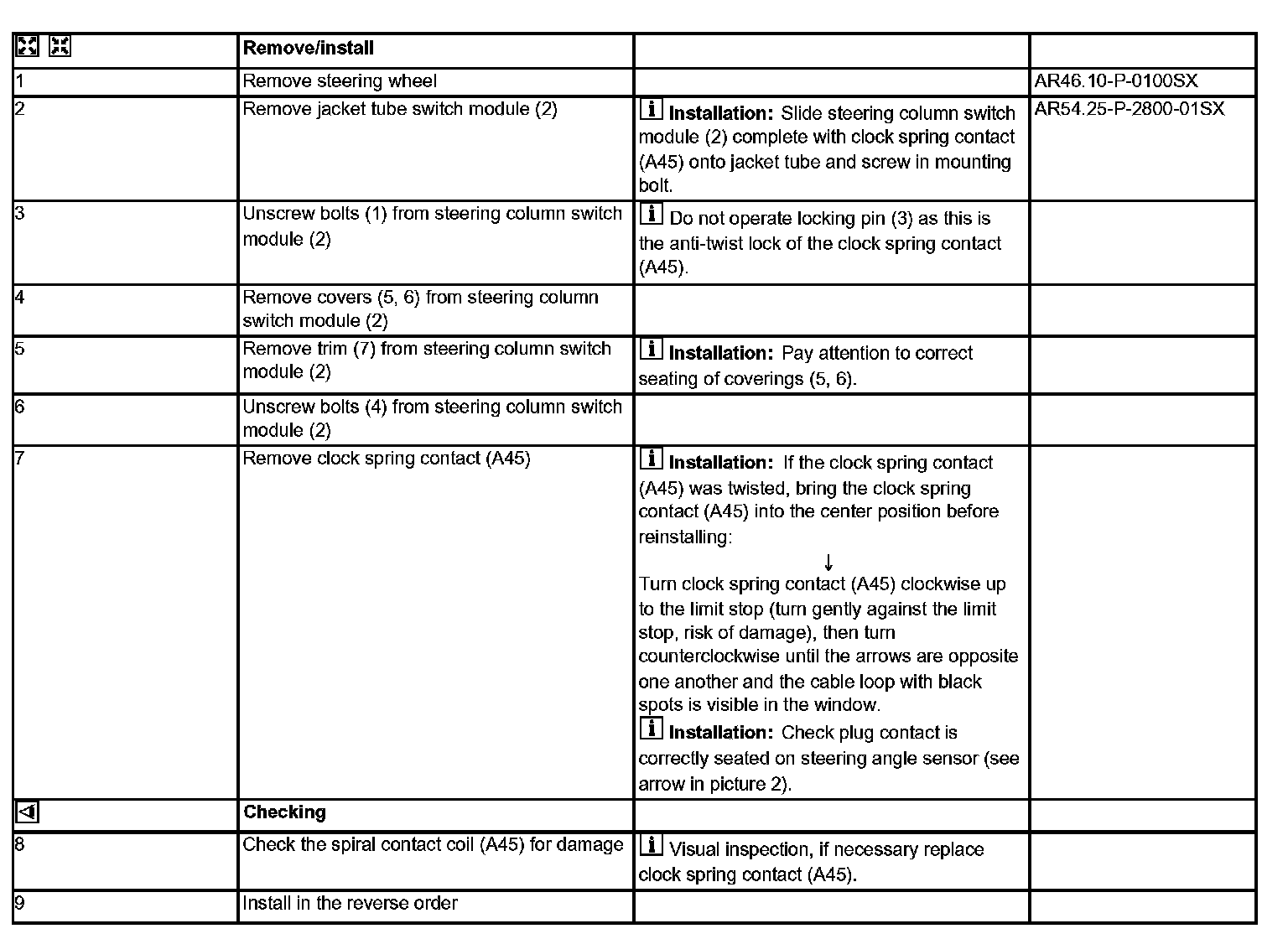

Remove/install Steps 1-9:
