AR91.60-P-0660SX Remove/Install Airbag Unit on the Steering Wheel



AR91.60-P-0660SX Remove/install Airbag Unit On The Steering Wheel

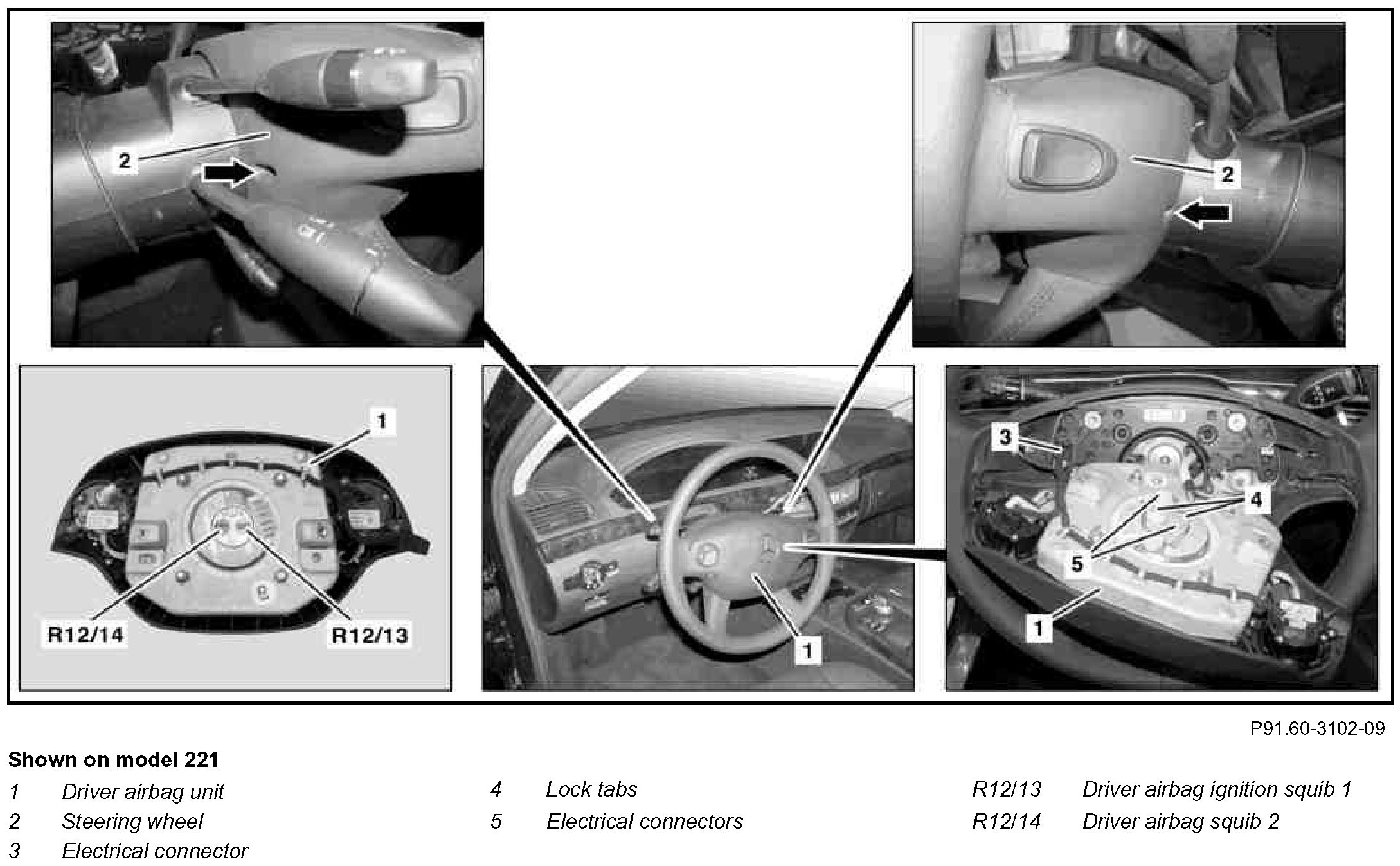

Component Identification:

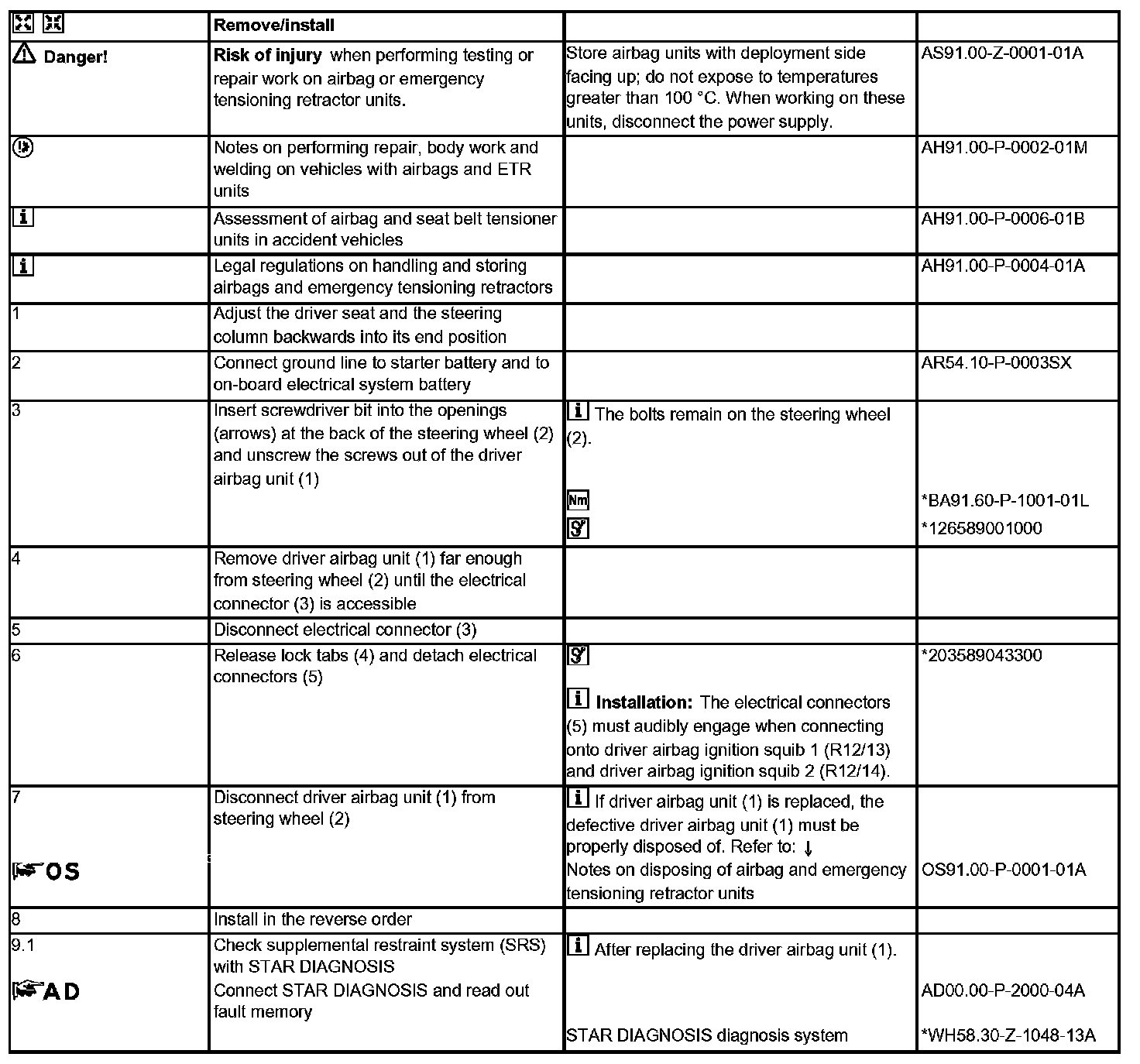

Steps 1-9.1:

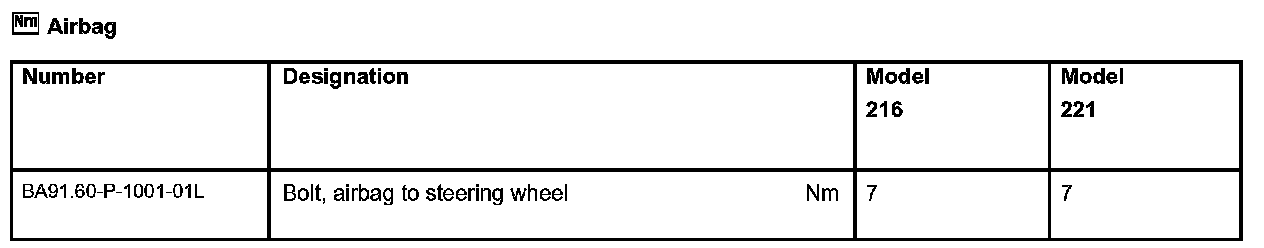

Airbag:

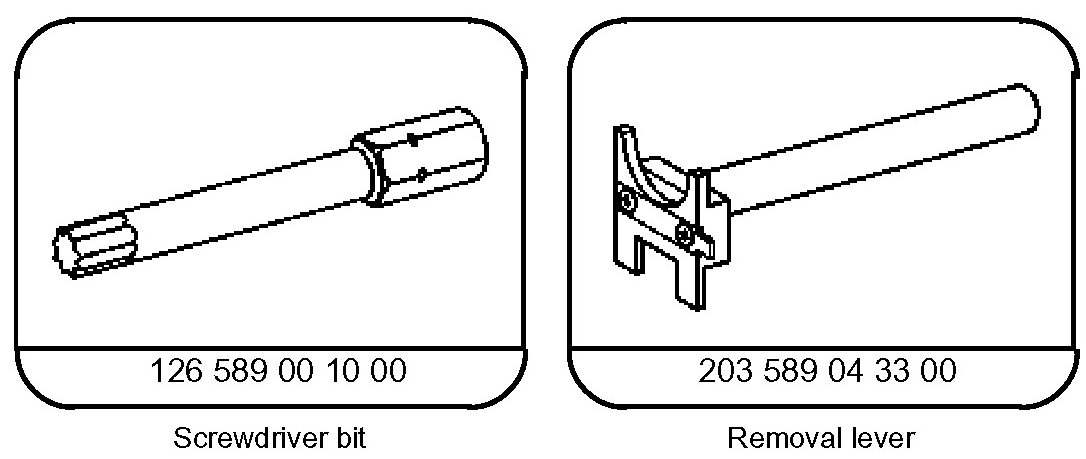

Special Tools:

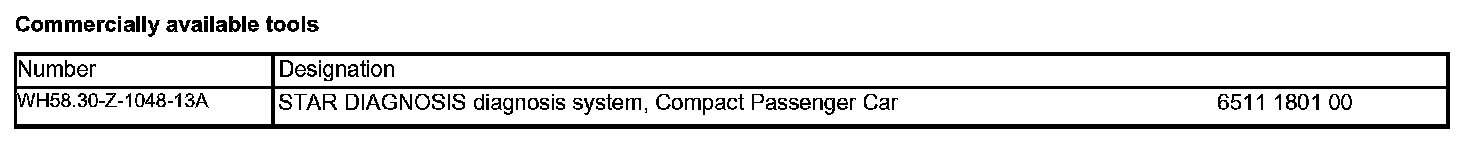

Commercially Available Tools:
