AR91.60-P-0200SX Remove/Install Driver Kneebag



AR91.60-P-0200SX Remove/Install Driver Kneebag
- as of 1.9.08 with CODE (294) Kneebag [model 221]

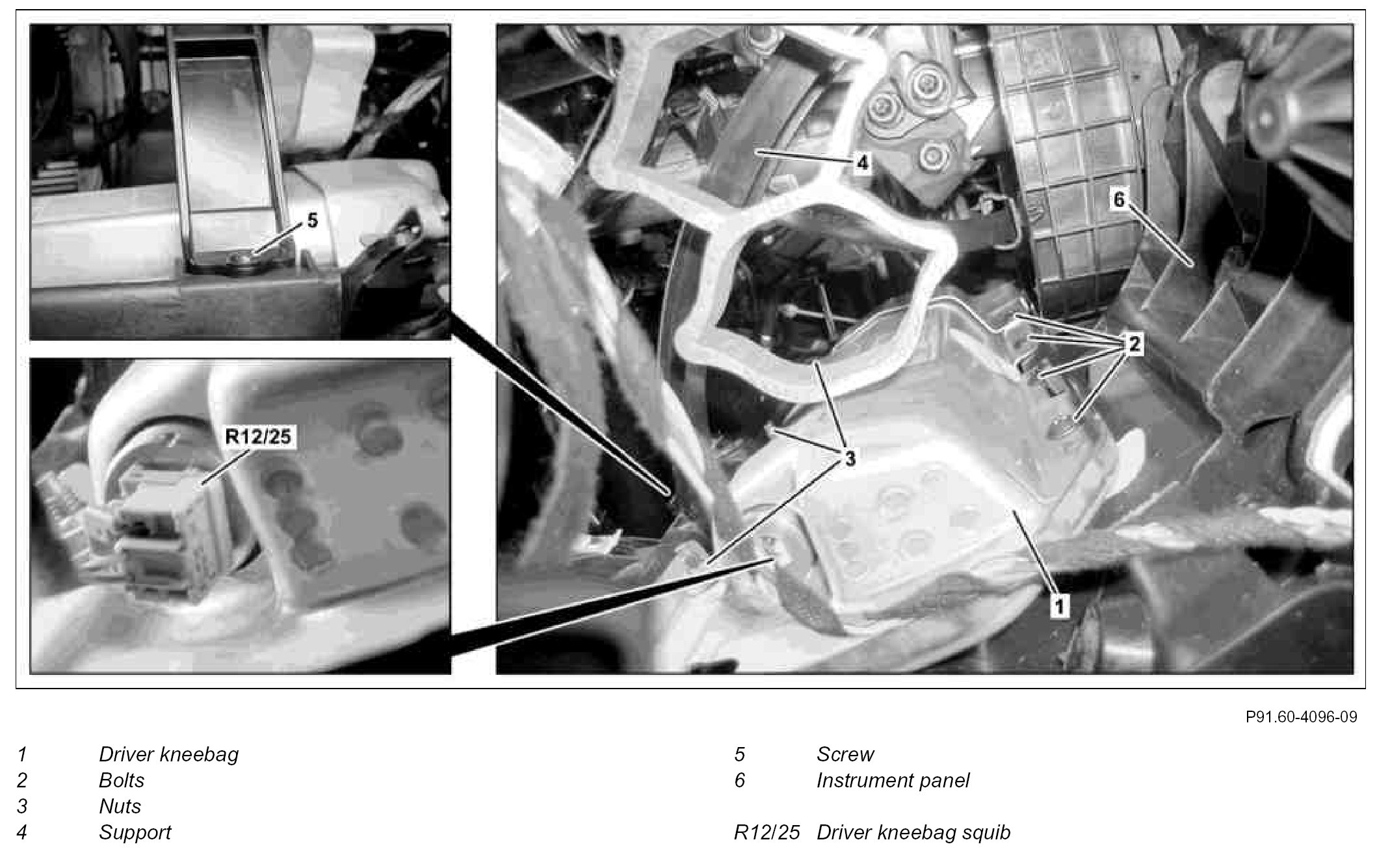

Component Identification:

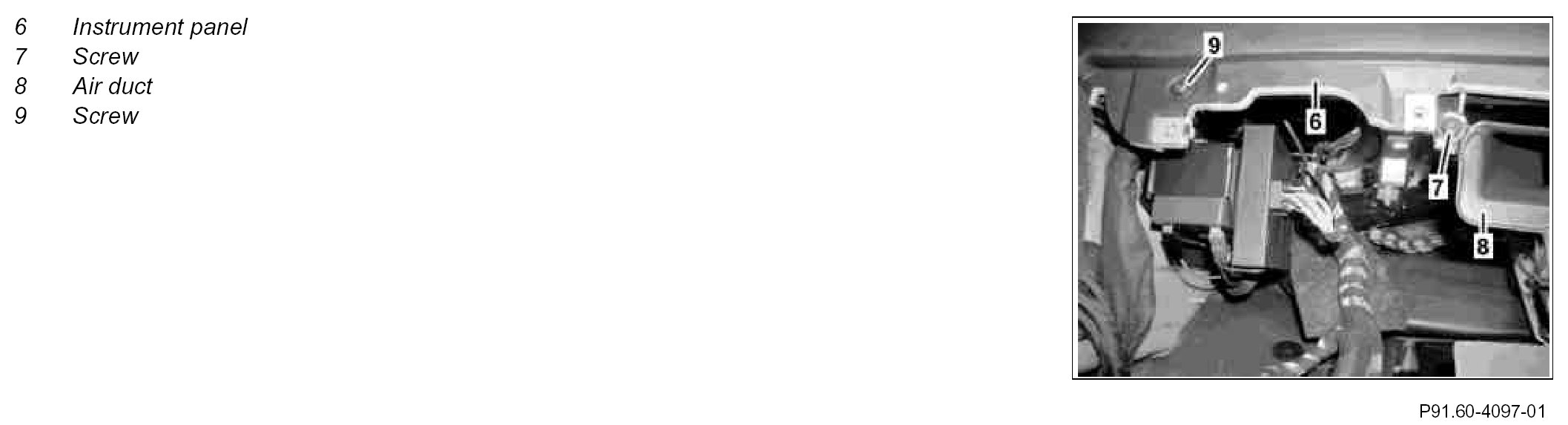

Component Identification:

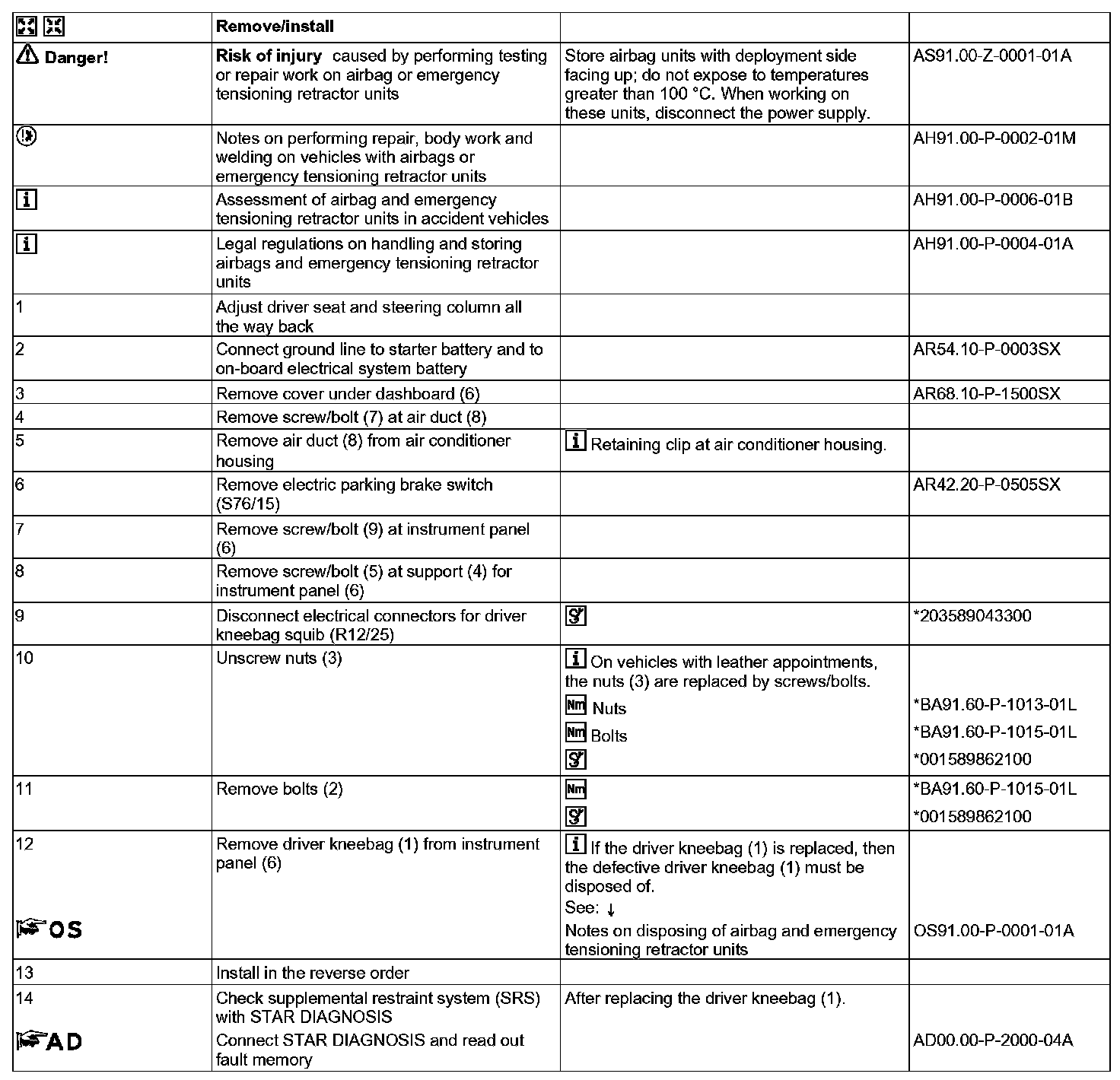

Steps 1 - 14:

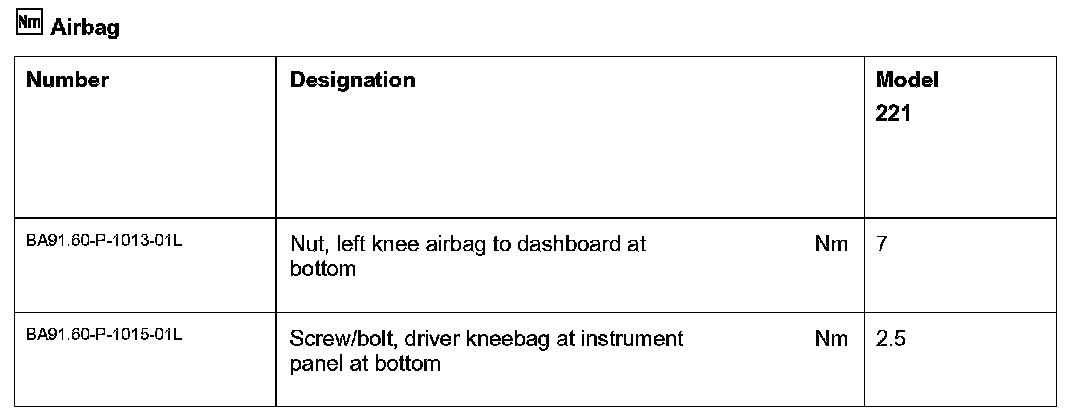

Airbag:

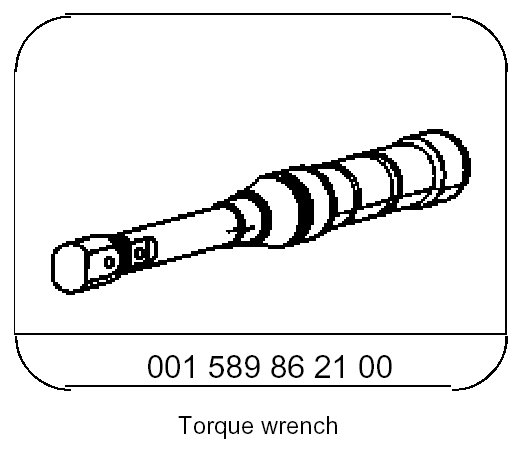

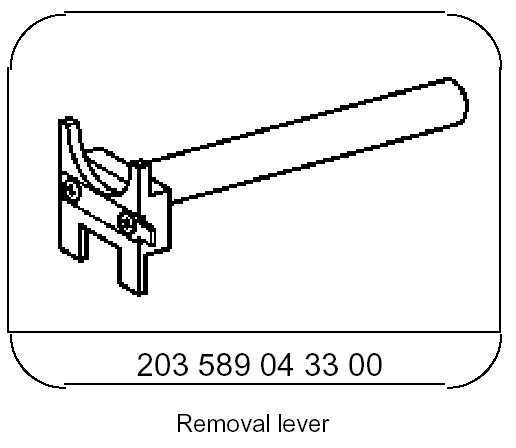

Special Tools:




Special Tools:
