Auxiliary Battery Relay: Service and Repair

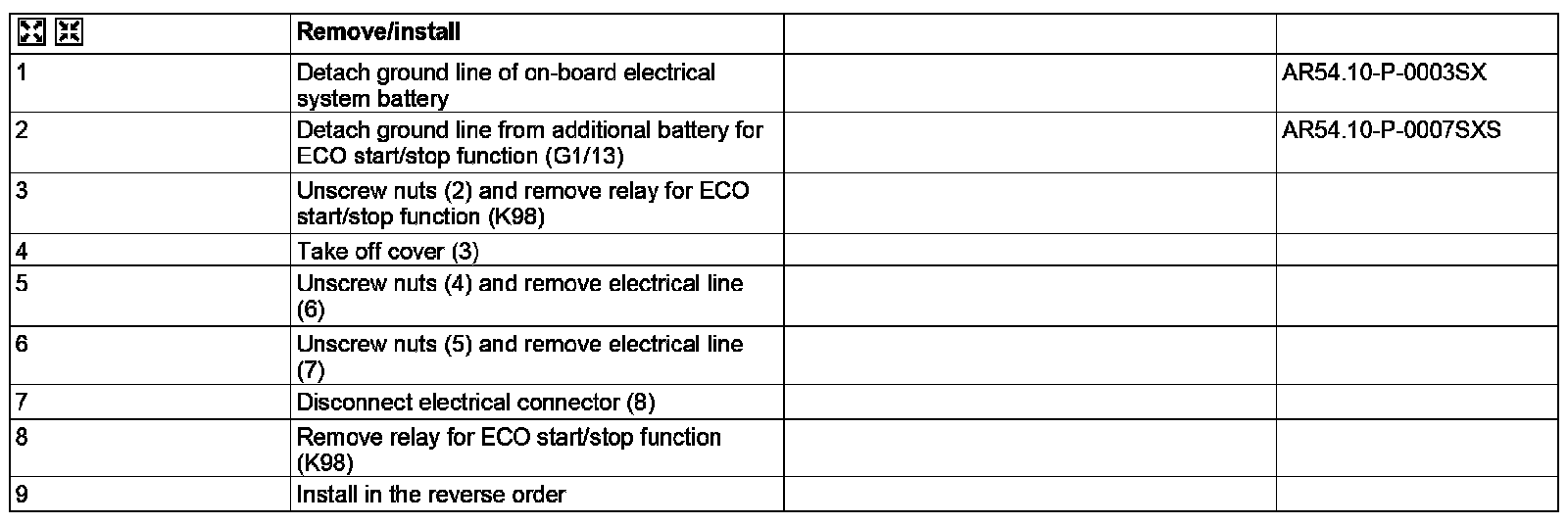

AR54.15-P-2000SX Remove/install Additional Battery Relay
- MODEL 216, 221
- with CODE (B03) ECO start/stop function

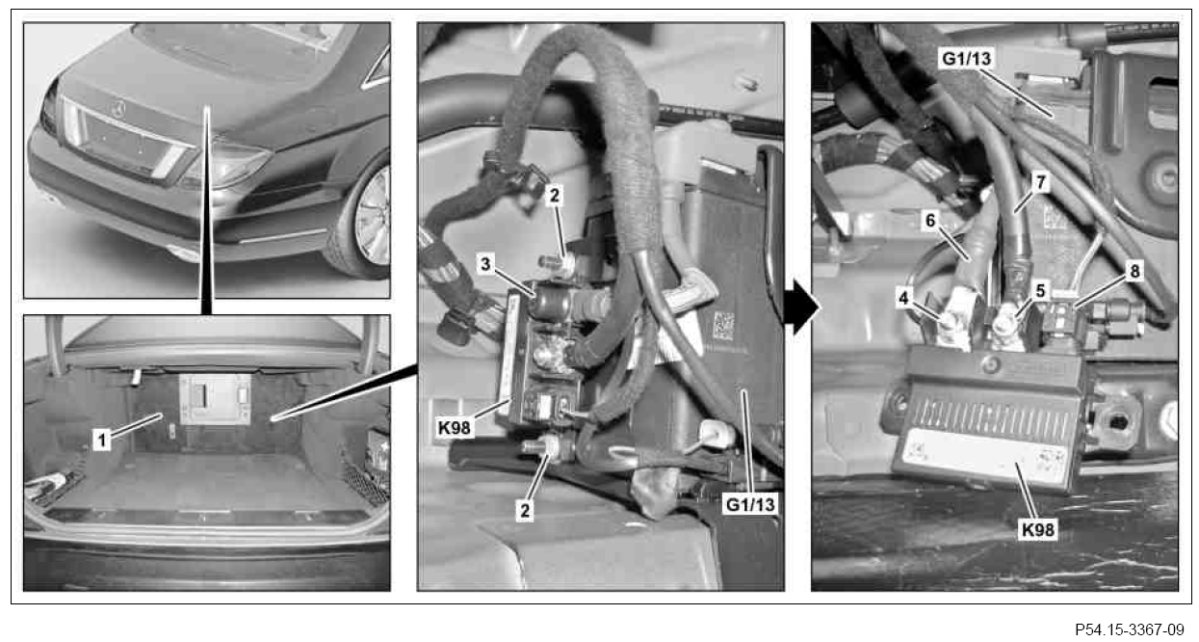

Shown on model 216

2 Nut
3 Cover
4 Nut
5 Nut
6 Electrical line
7 Electrical line
8 Electrical connector
G1/13 ECO start/stop function additional battery
K98 ECO start/stop function relay
