Air Bag Control Module: Service and Repair
AR91.60-P-0624SX Remove/install Restraint Systems Control Unit

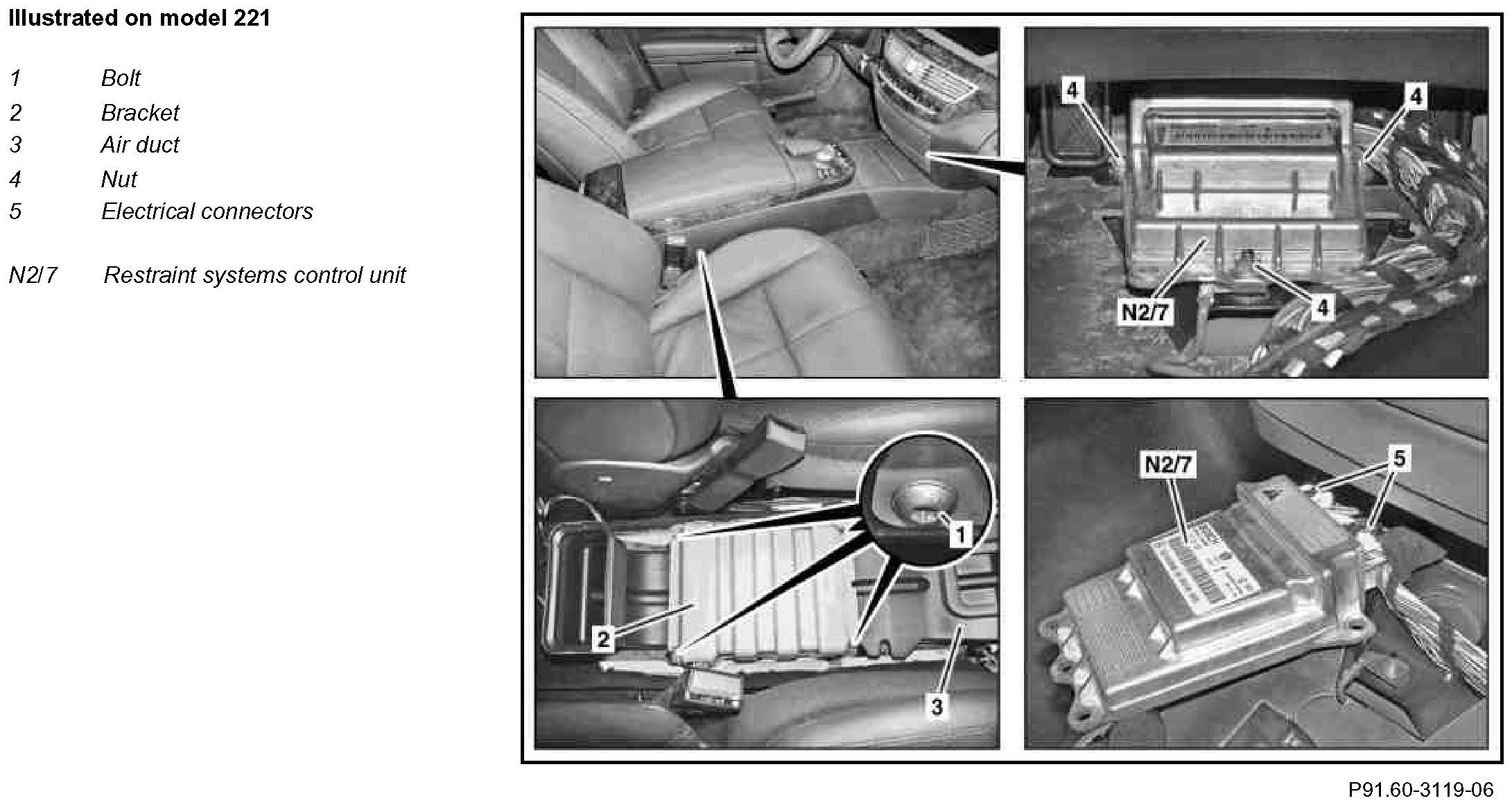

Component Identification:

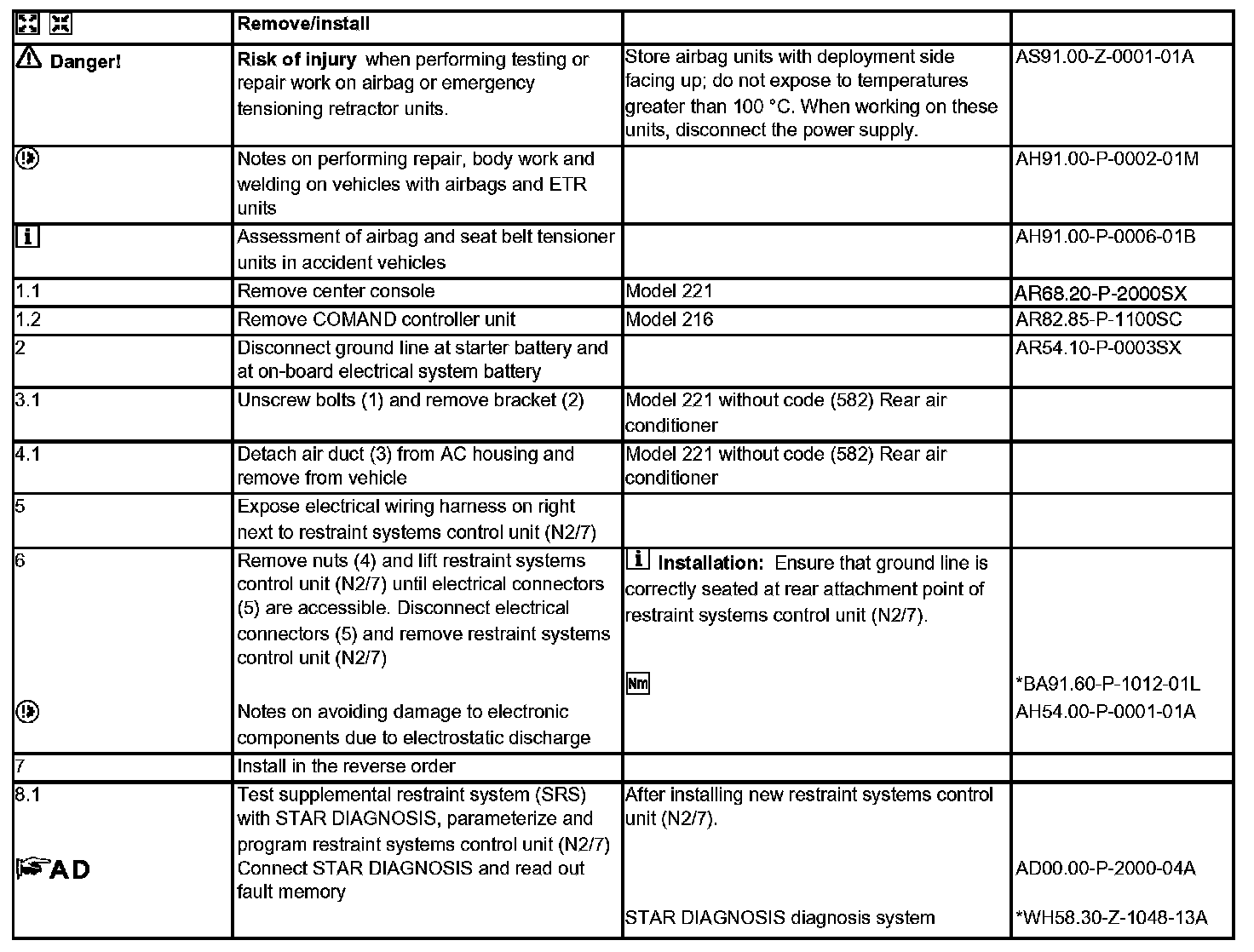

Steps 1-8.1:
Airbag:
Commercially Available Tools:
