Traction Control Module: Service and Repair



AR42.45-P-0820SX Remove/install electronic stability program (ESP) control unit

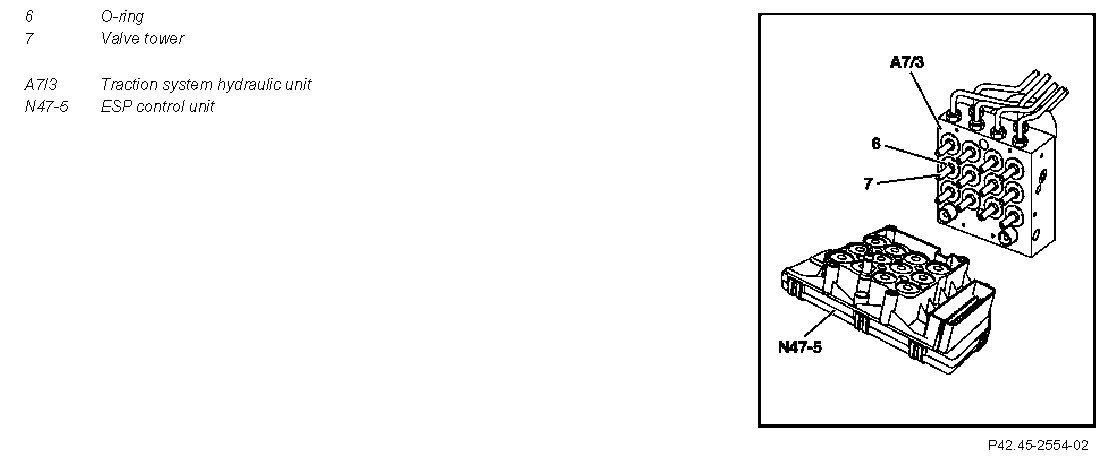

Component Identification:

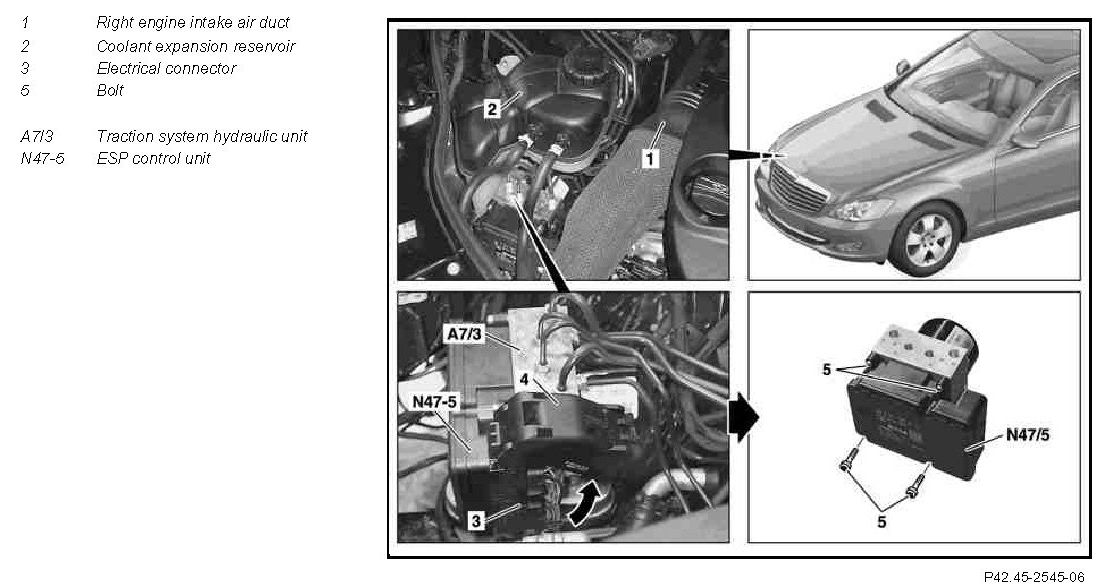

Component Identification:

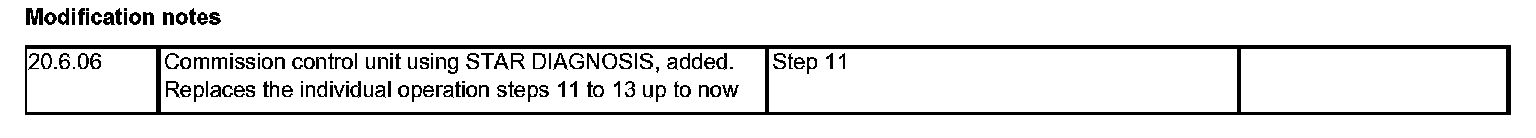

Modification notes:




Remove/install Steps 1-2:

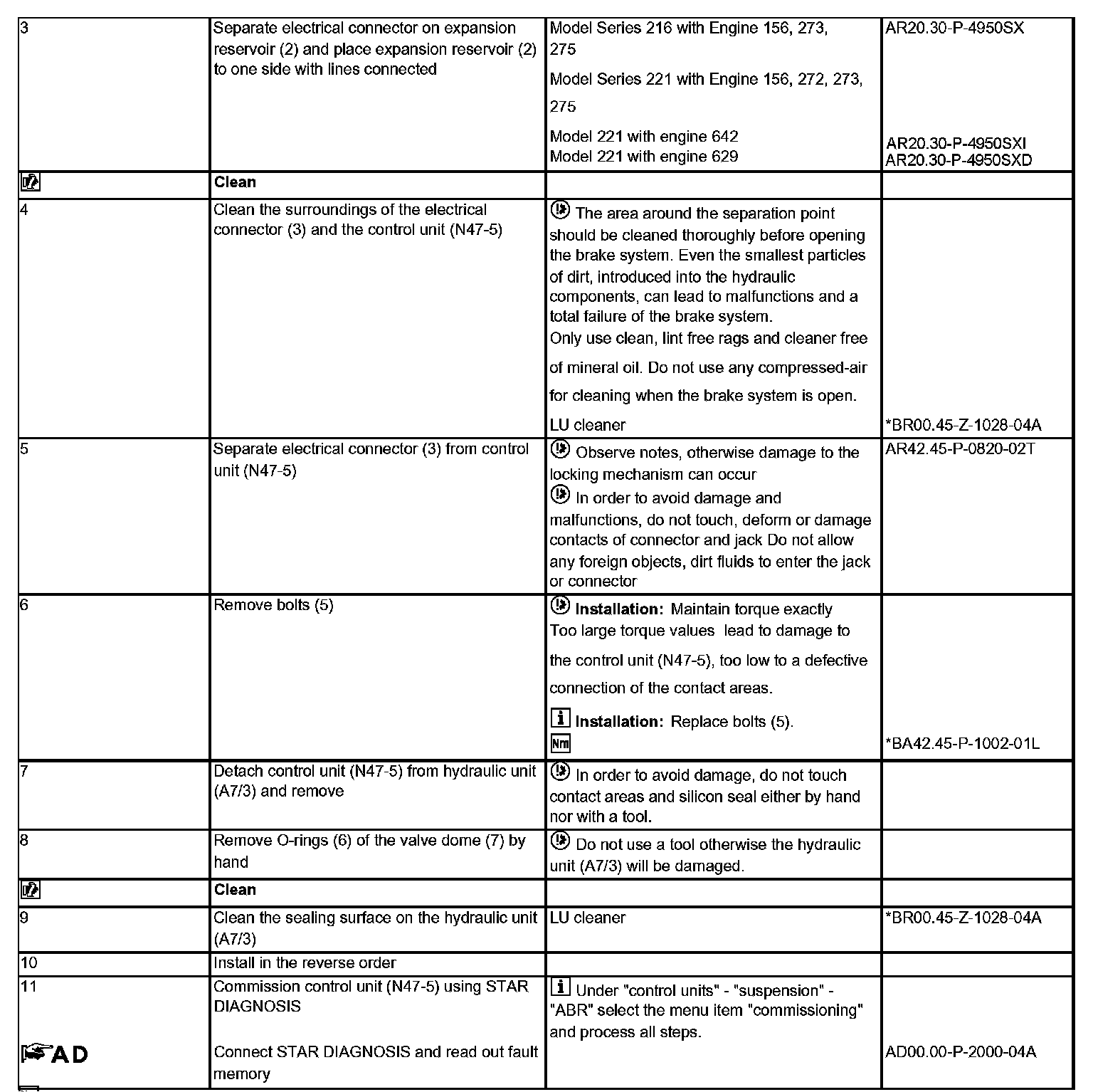

Remove/install Steps 3-11:

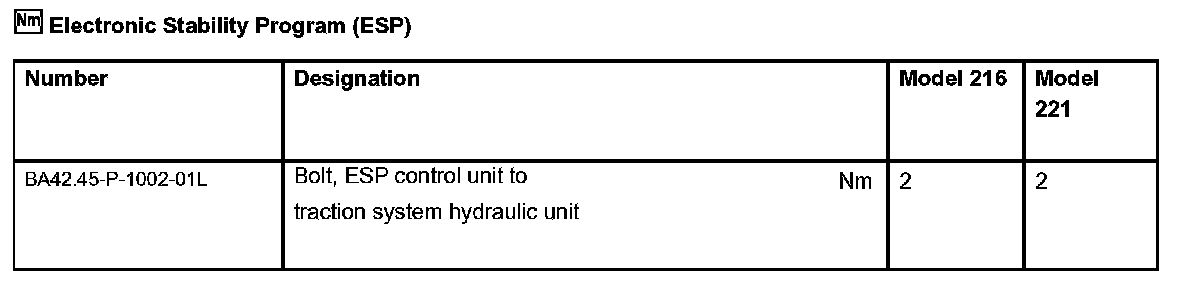

Electronic Stability Program (ESP):




Repair materials:
