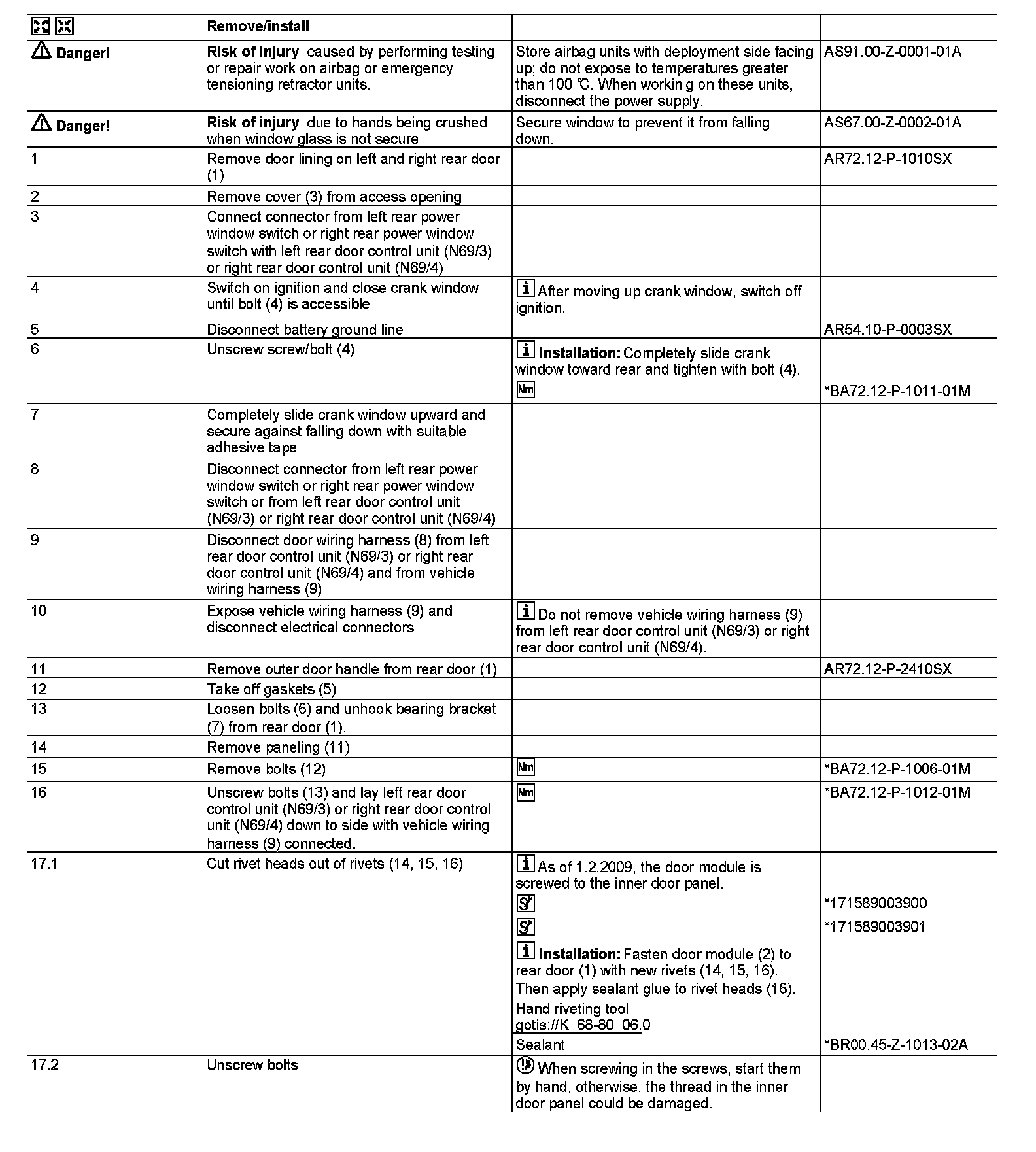

AR72.12-P-0103SX Remove/Install Rear Door Module

AR72.12-P-0103SX Remove/Install Rear Door Module
MODEL 221.0
MODEL 221.1
- except CODE (Z07) Top protection

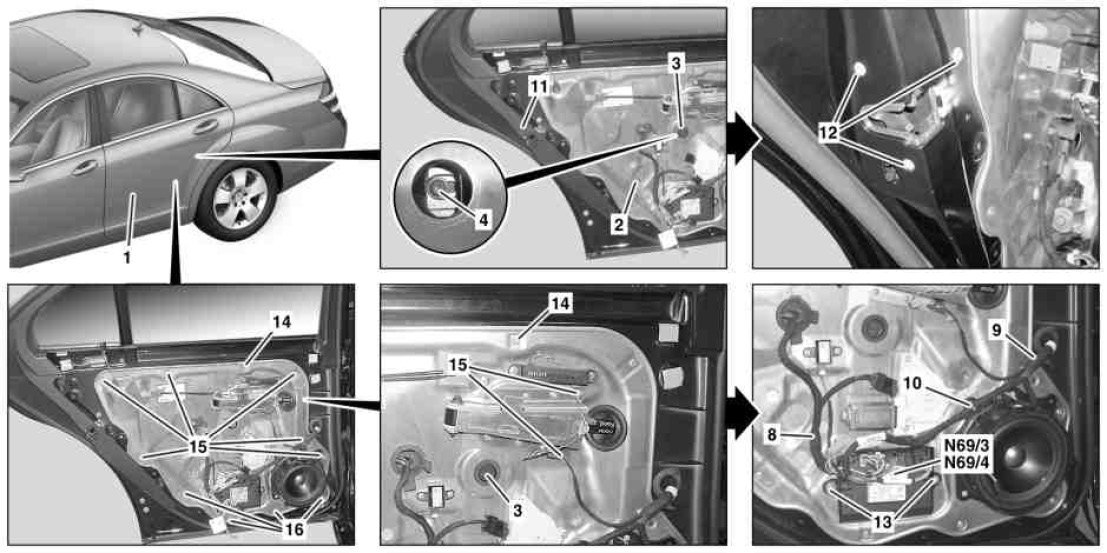

Illustrated on module 221.0 with riveted door module

1 Rear door
2 Door module
3 Cover
4 Screw
8 Door wiring harness
9 Vehicle wiring harness
10 Cable tie
11 Cover
12 Bolts
13 Bolts
14 Rivet
15 Rivets
16 Rivets

N69/3 Door control module rear left
N69/4 Door control module rear right





Shown on model 221.0

1 Rear door
5 Seals
6 Screw
7 Bearing bracket

















171 589 00 39 00
Rivet milling cutter





171 589 00 39 01
Milling bit crown





221 589 00 39 00
Press-out tool
