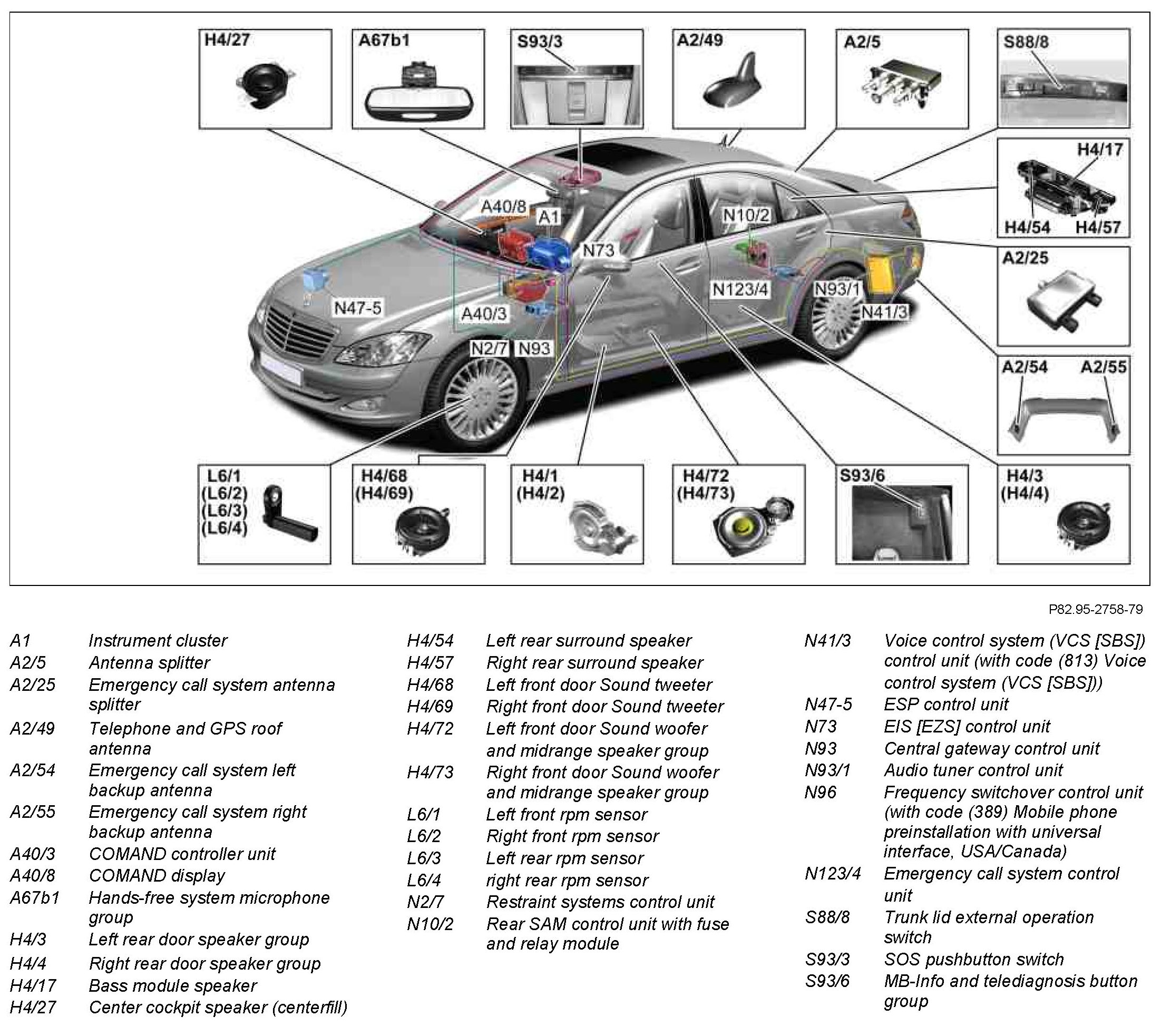

GF82.95-P-0004-01LEU Emergency Call System, Location Of Components



GF82.95-P-0004-01LEU Emergency Call System, Location Of Components
- with CODE (359) TELE AID emergency call system


Component Identification:
