Collision Avoidance Module: Service and Repair



AR54.65-P-0025SX Remove/Install Backup Camera Control Unit
- with CODE (218) Backup camera

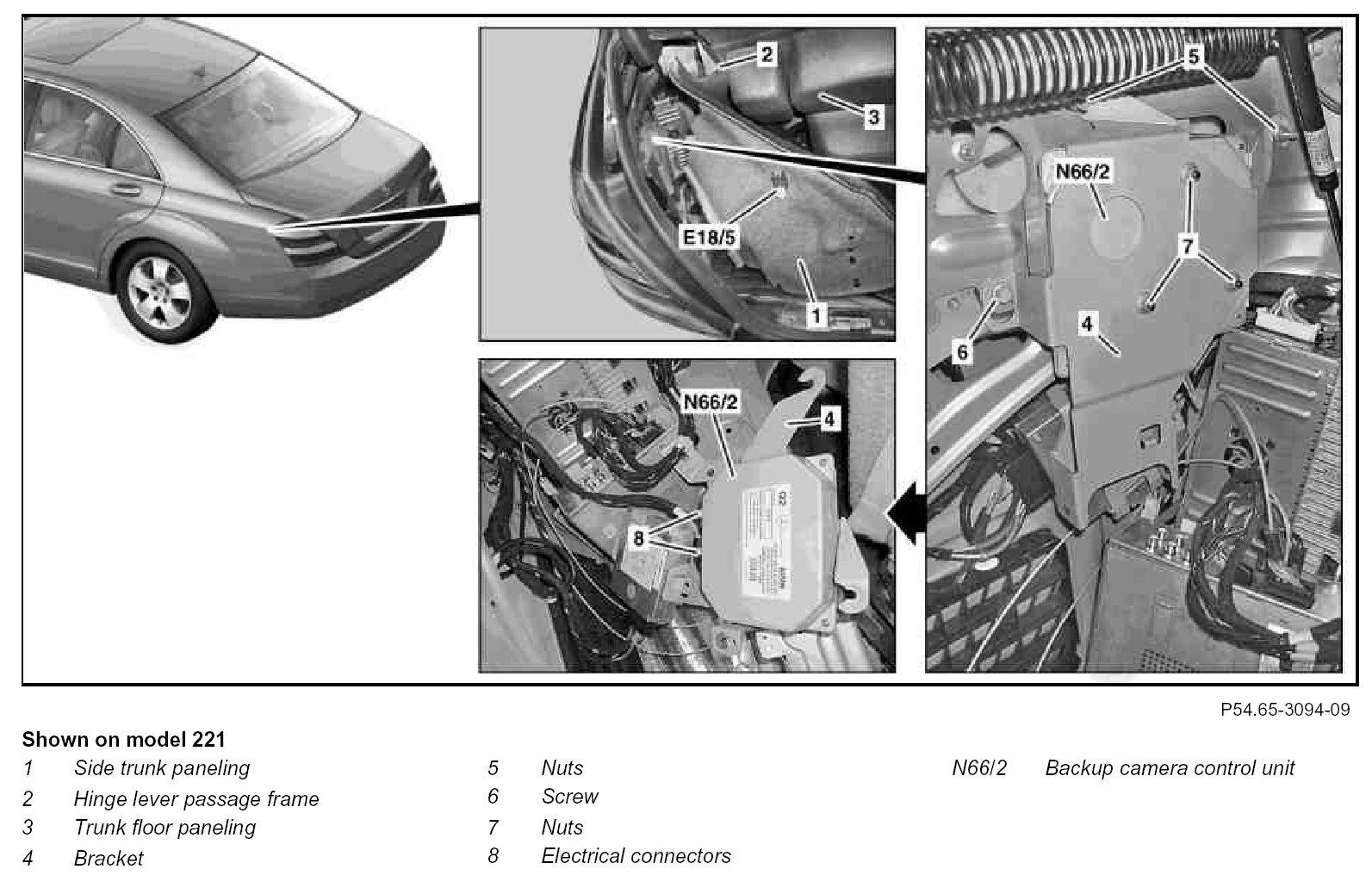

Component Identification:




Steps 1 - 9:
