Central Control Module: Service and Repair



AR54.21-P-0817SX Central Gateway Control Unit (ZGW), Remove And Install

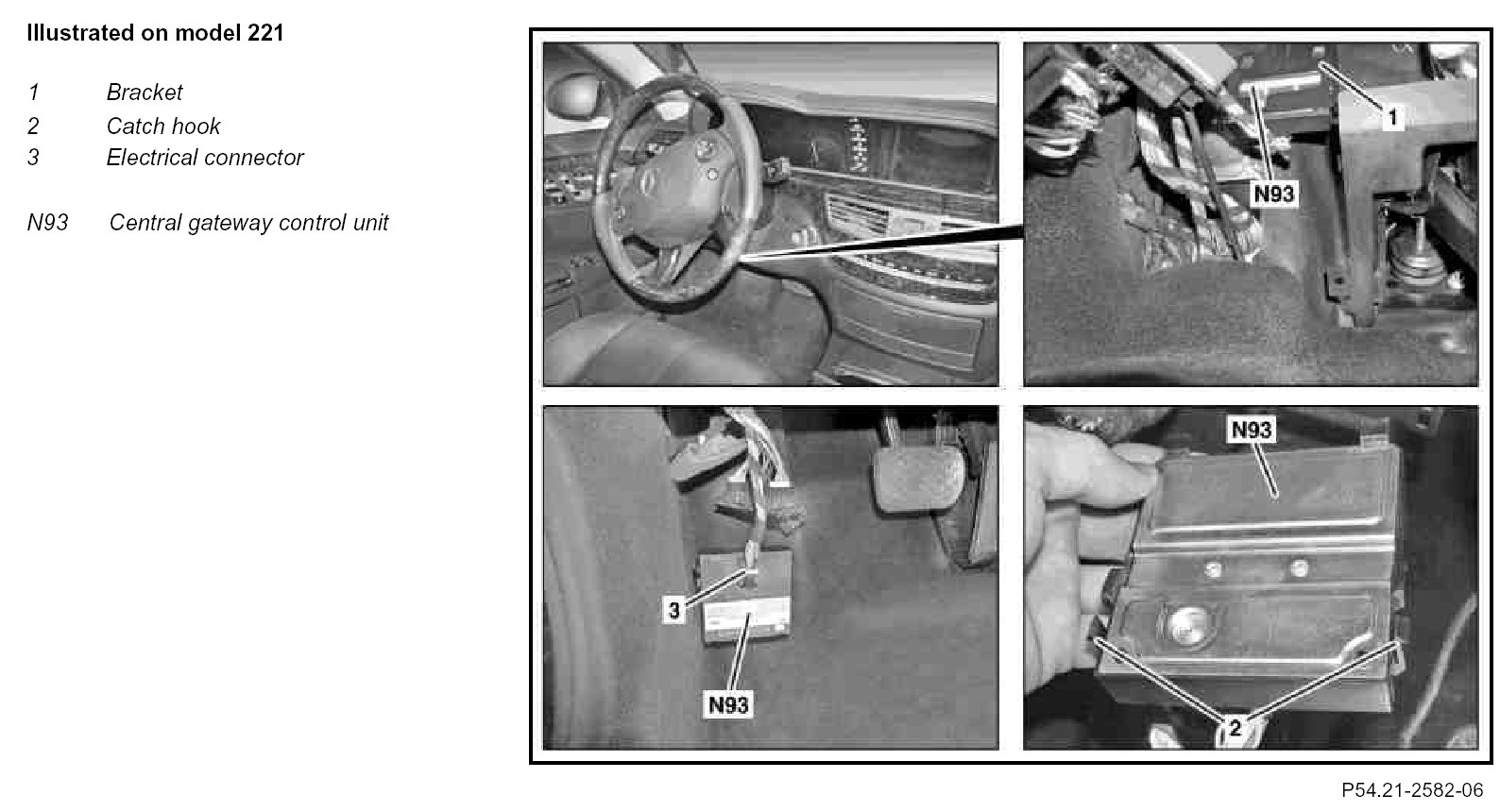

Component Identification:

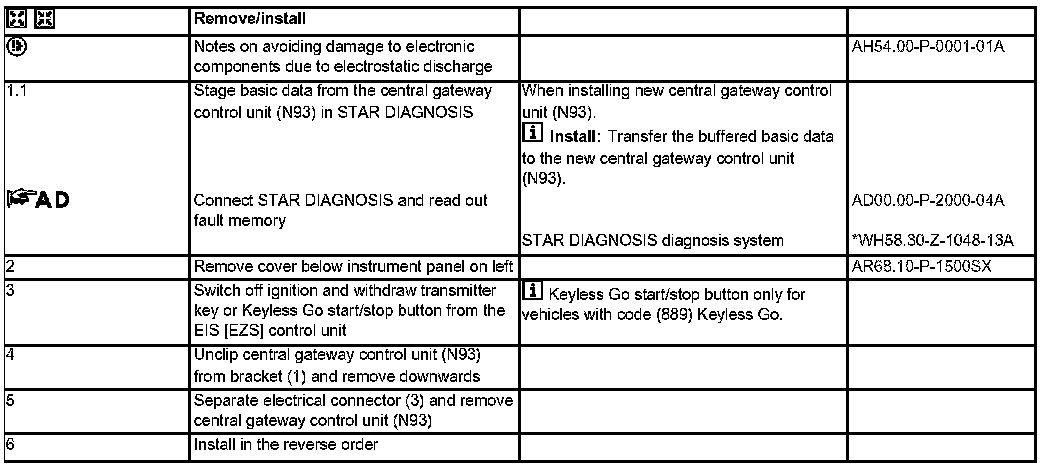

Steps 1.1 - 6:




Commercially Available Tools:
