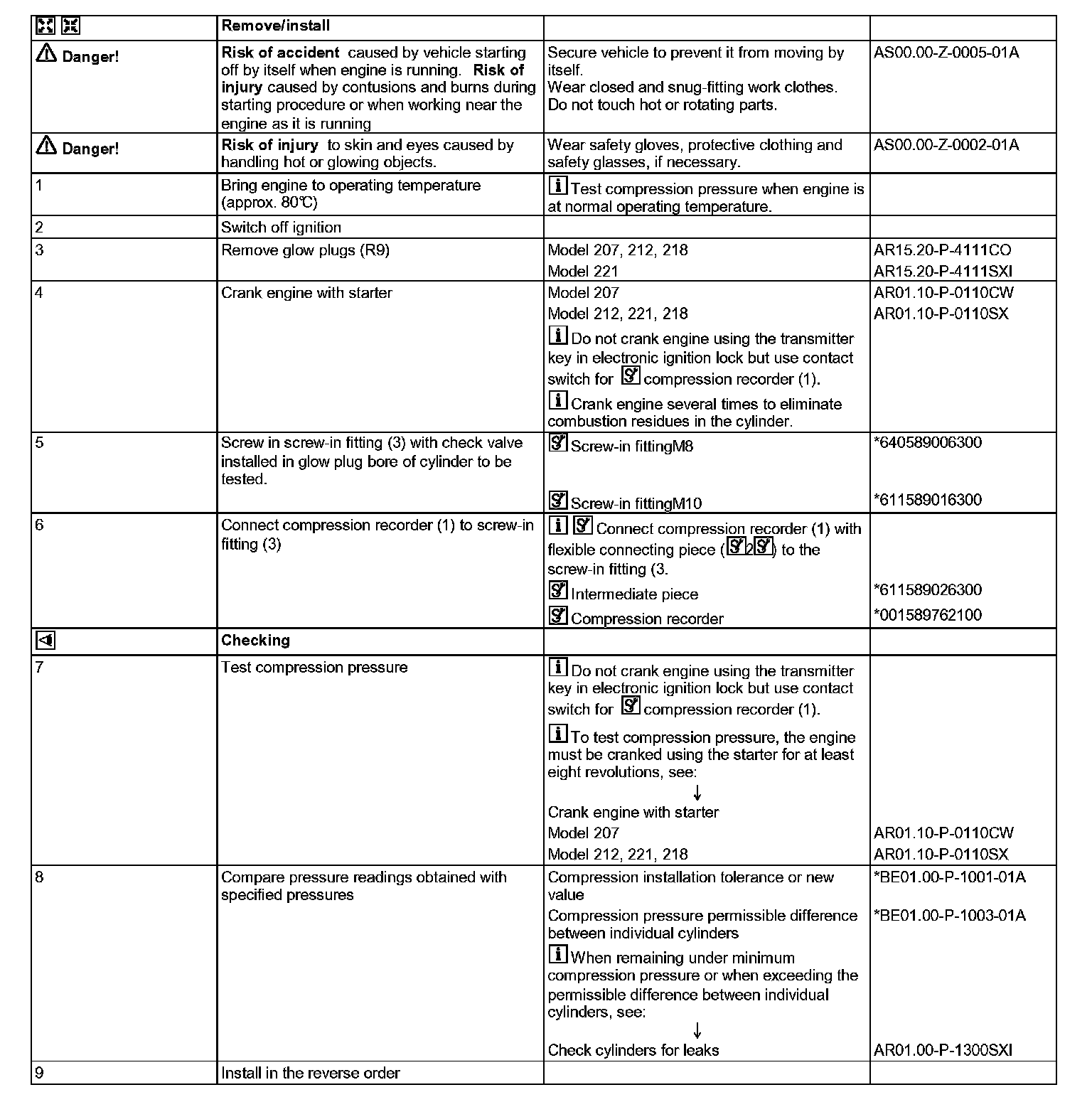

AR01.00-P-1200SXI Test Compression Pressure

AR01.00-P-1200SXI Test Compression Pressure






Shown on model 221

1 Compression recorder
2 Intermediate piece
3 Screw-in fitting

R9 Glow plugs











611 589 02 63 00
Intermediate piece





001 589 76 21 00
Compression tester





640 589 00 63 00
Screw-in fitting





611 589 01 63 00
Screw-in fitting
