AR47.10-P-4000SX Empty Fuel Tank If Fuel Pump Is Faulty
AR47.10-P-4000SX Empty Fuel Tank If Fuel Pump Is Faulty
AR47.10-P-4000SX Empty
Fuel Tank
If
Fuel Pump
Is Faulty

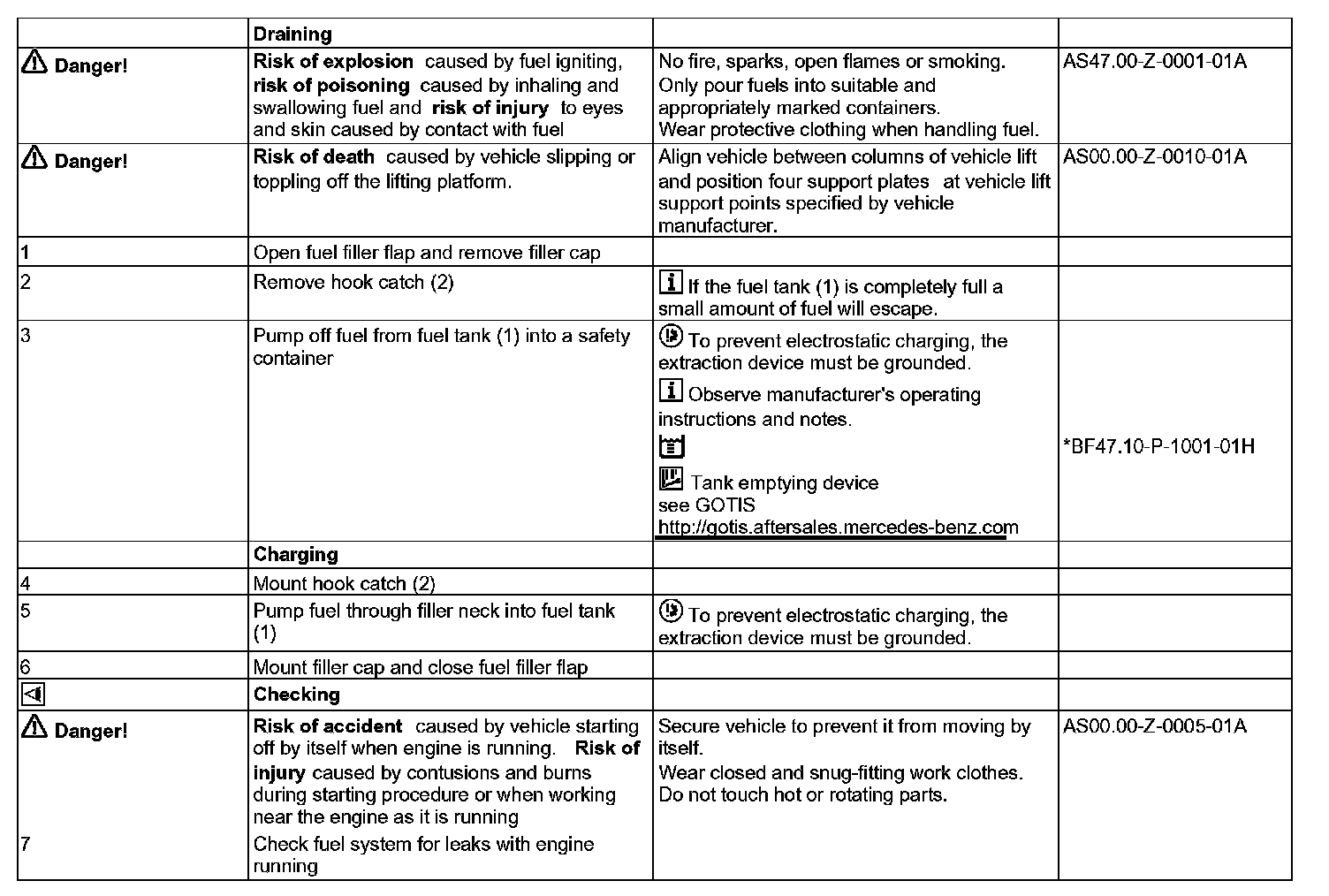

Steps 1 - 7:

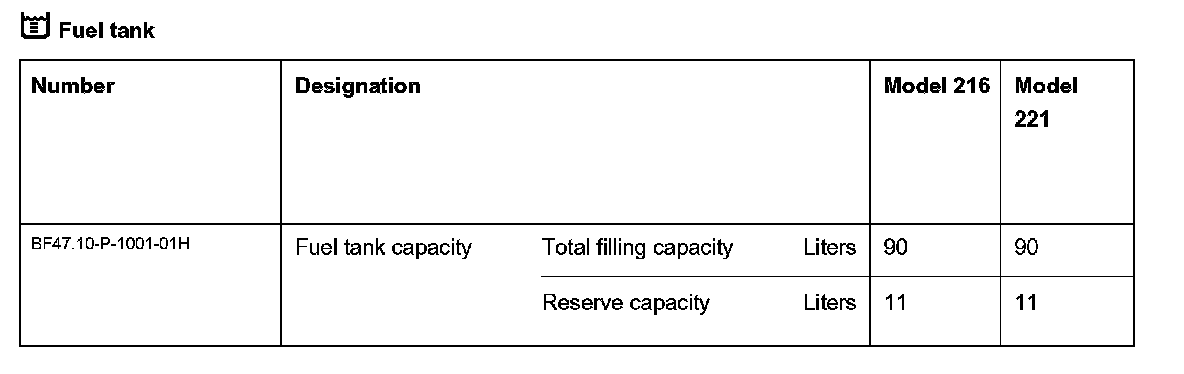

Fuel Tank:
