Fuel Pump: Diagrams

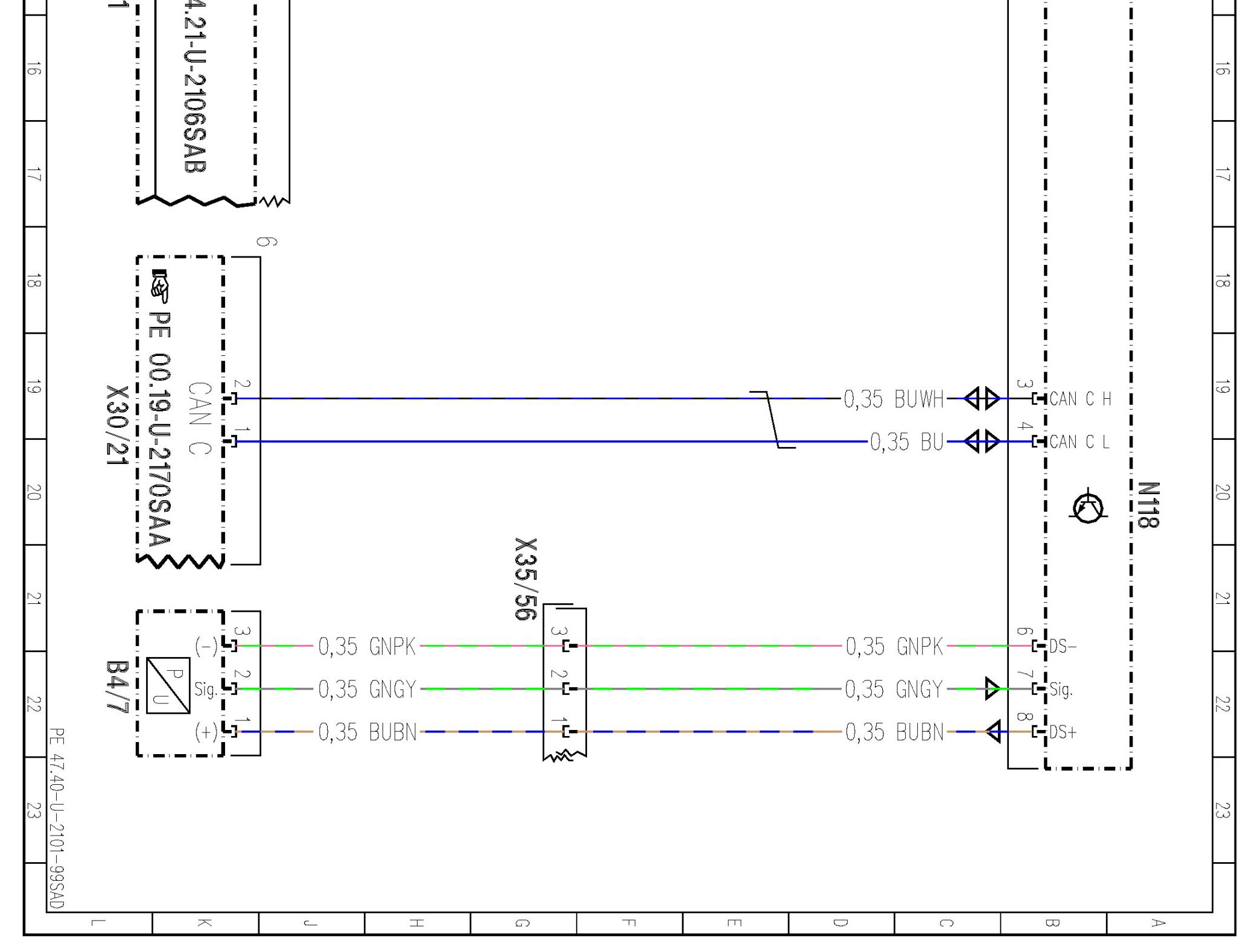

PE47.40-U-2101SAD Fuel Pump Control Unit

ENGINE 642.8 in MODEL 221

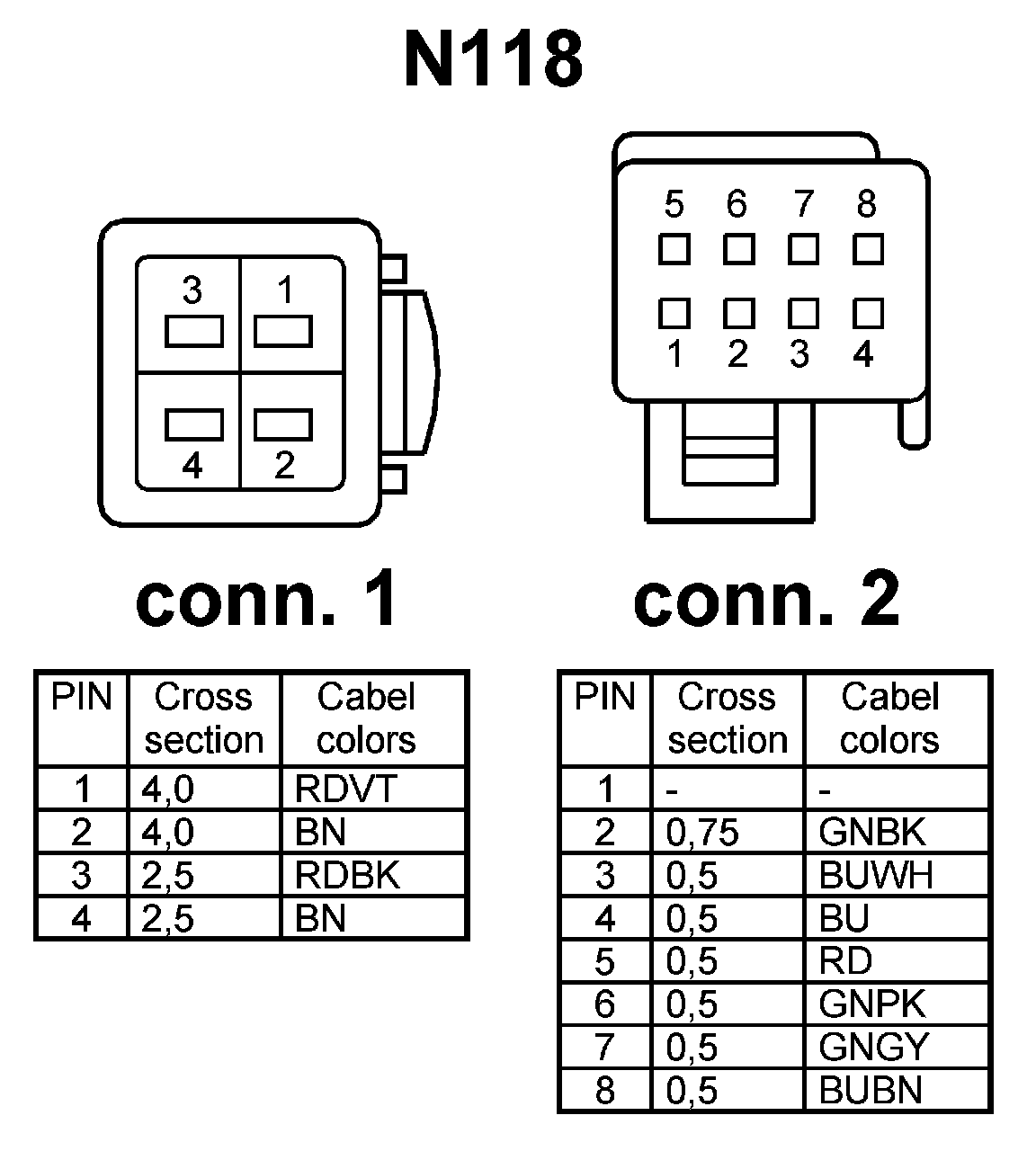

- Control unit N118



































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
