Fuel Injector: Service and Repair

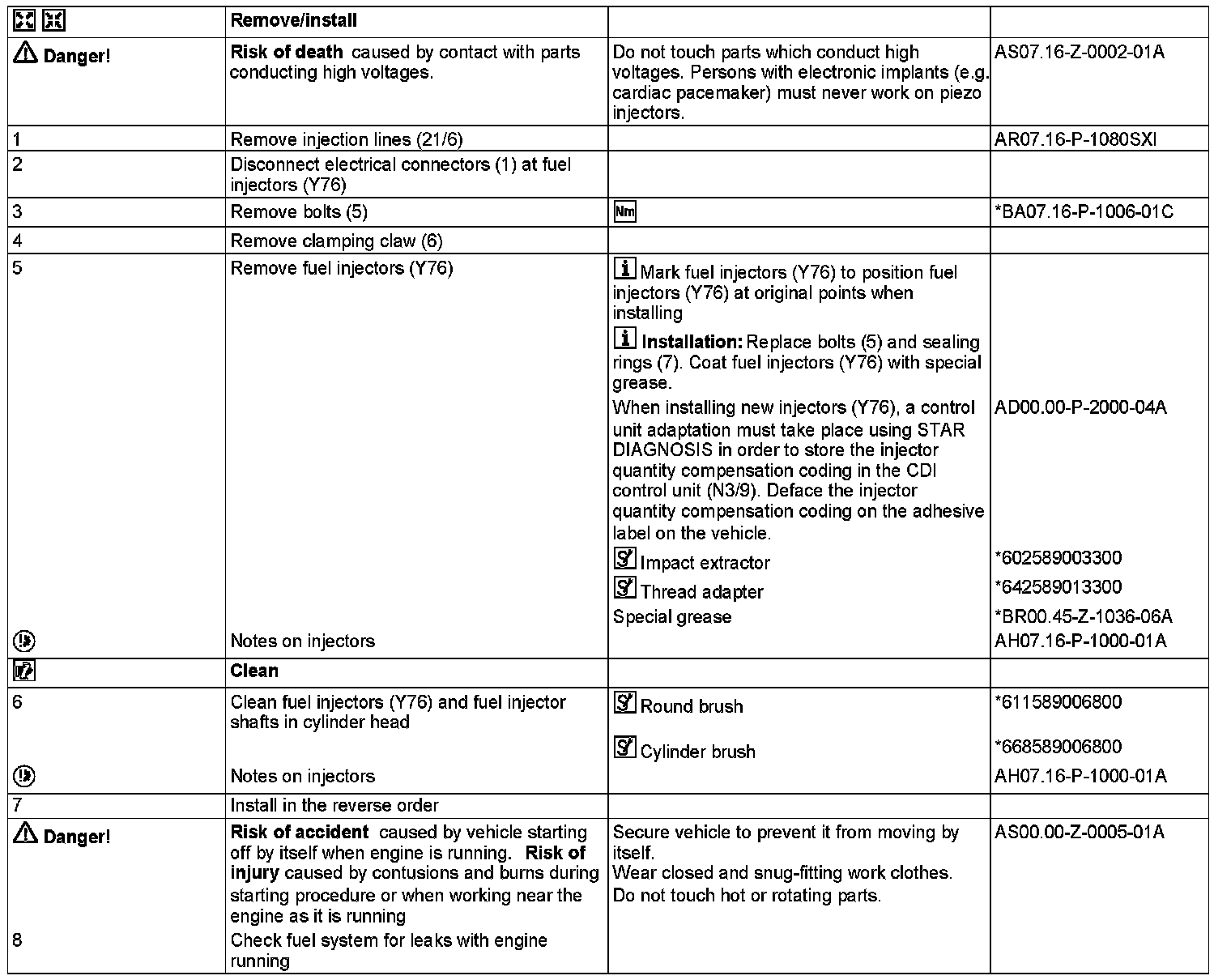

AR07.16-P-1000SXI Remove/install Injectors
- ENGINES 642 in MODEL 207, 212, 218, 221

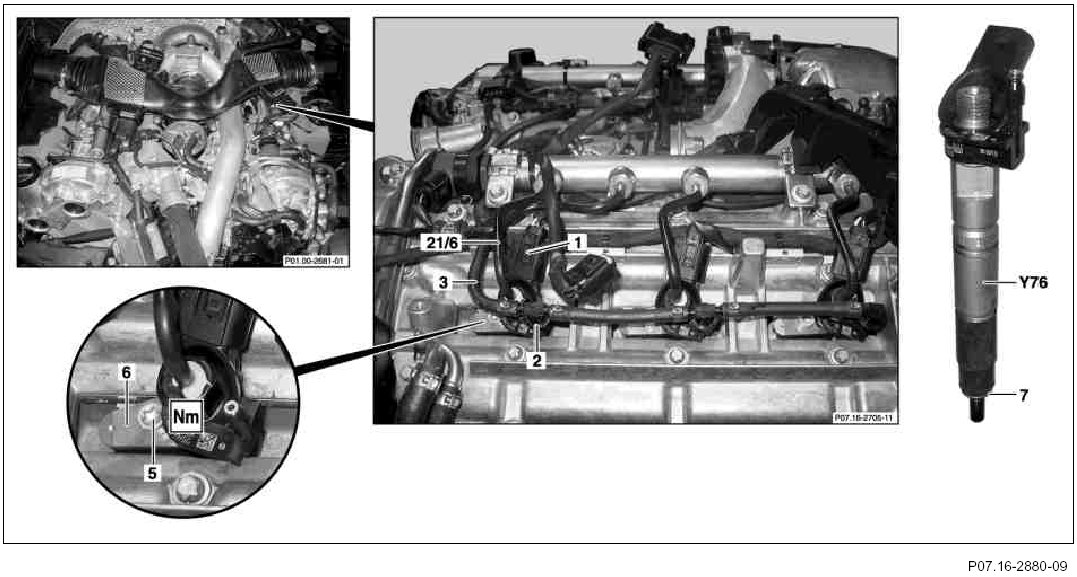

1 Electrical connector
2 Securing clamp
3 Leak oil line

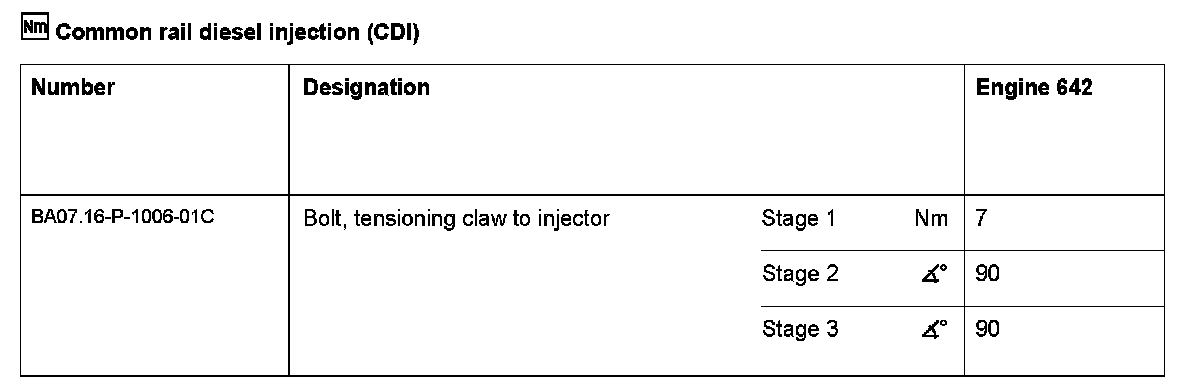

5 Bolt
6 Clamping claw
7 Sealing ring
21/6 Injection line
Y76 Fuel injector











611 589 00 68 00, Round brush







668 589 00 68 00, Cylinder brush







602 589 00 33 00, Impact extractor







642 589 01 33 00, Threaded adapter
