Diesel MFI Pump: Service and Repair

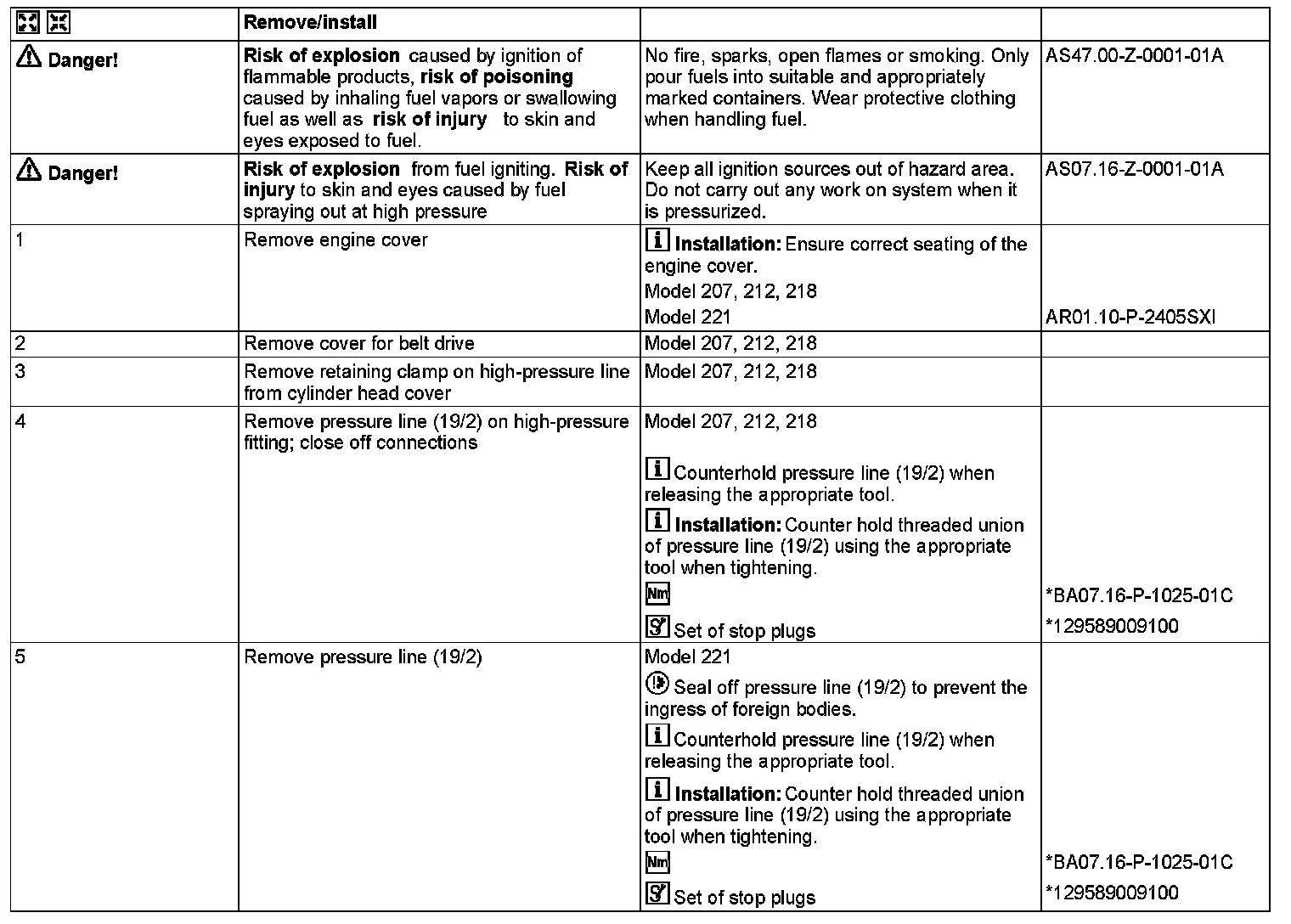

AR07.02-P-1020SXI Remove/install High-pressure Pump
- ENGINES 642 in MODEL 207, 212, 218, 221







1 Fuel hose
2 High-pressure pump
3 Fuel hose
4 Bolts
19/2 Pressure line
B50 Fuel temperature sensor
Y94 Quantity control valve


















129 589 00 91 00, Set of stop plugs
