EGR Cooler: Service and Repair

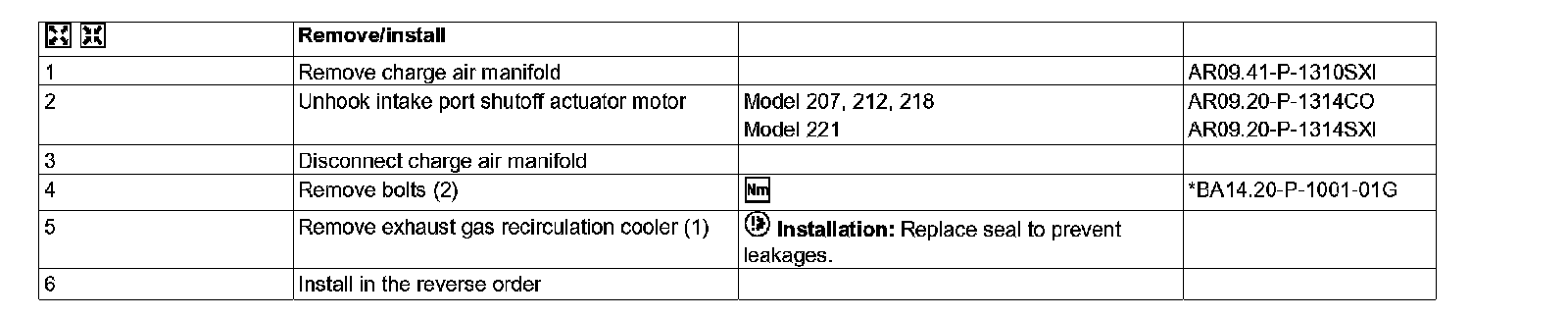

AR14.20-P-7665SXI Remove/Install Exhaust Gas Recirculation Cooler
-ENGINES 642 in MODEL 207, 212, 221, 218

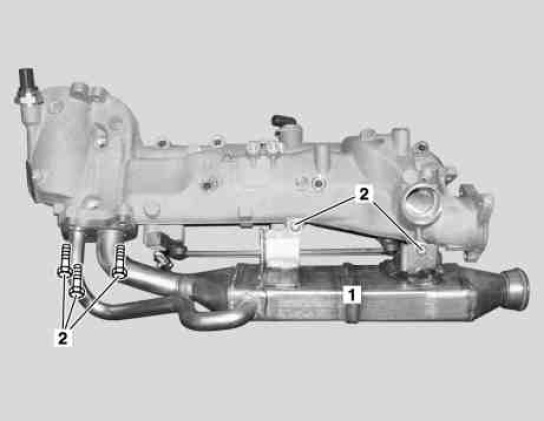

1 Exhaust gas recirculation cooler
2 Bolts
