Electrical Diagrams

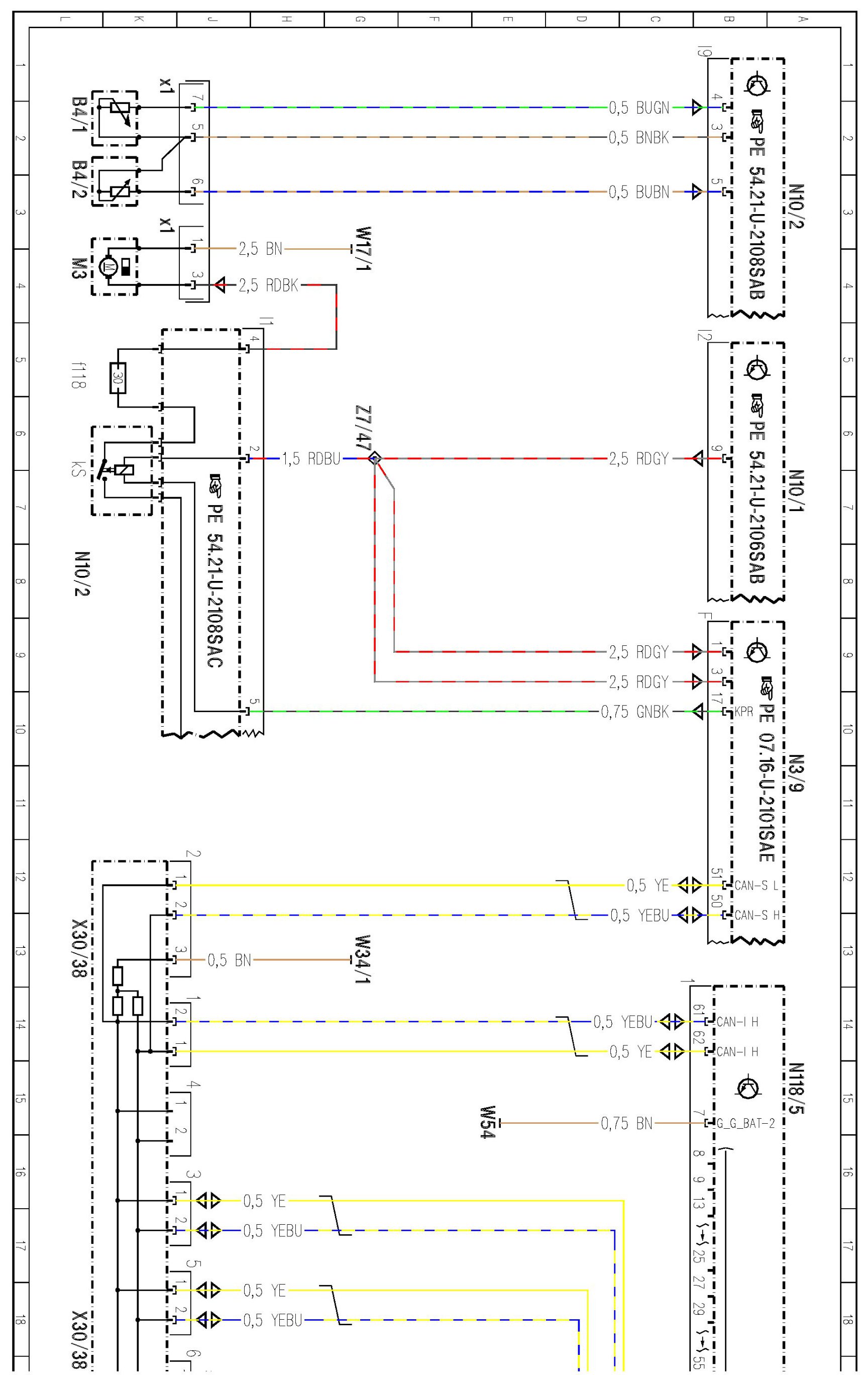

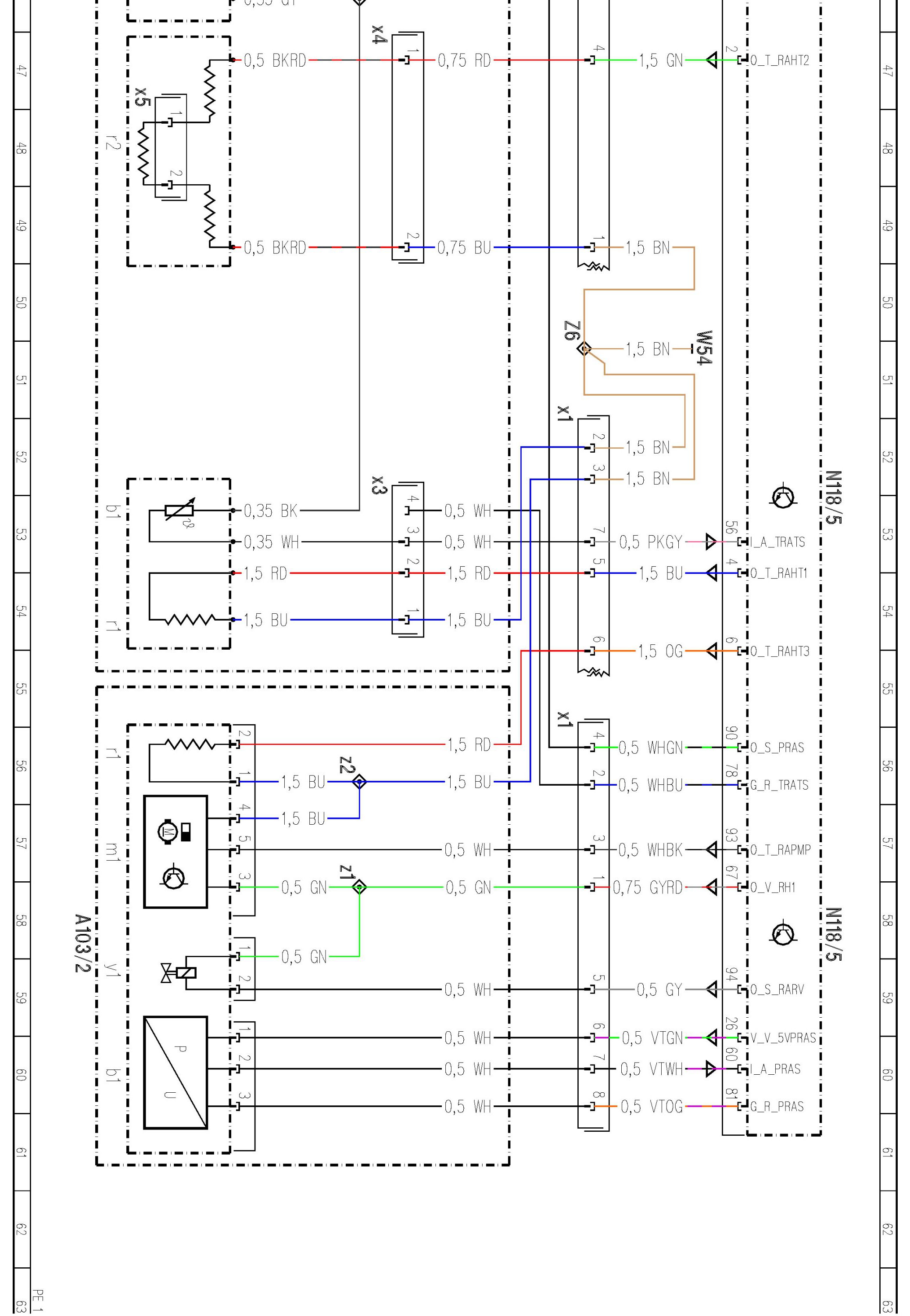

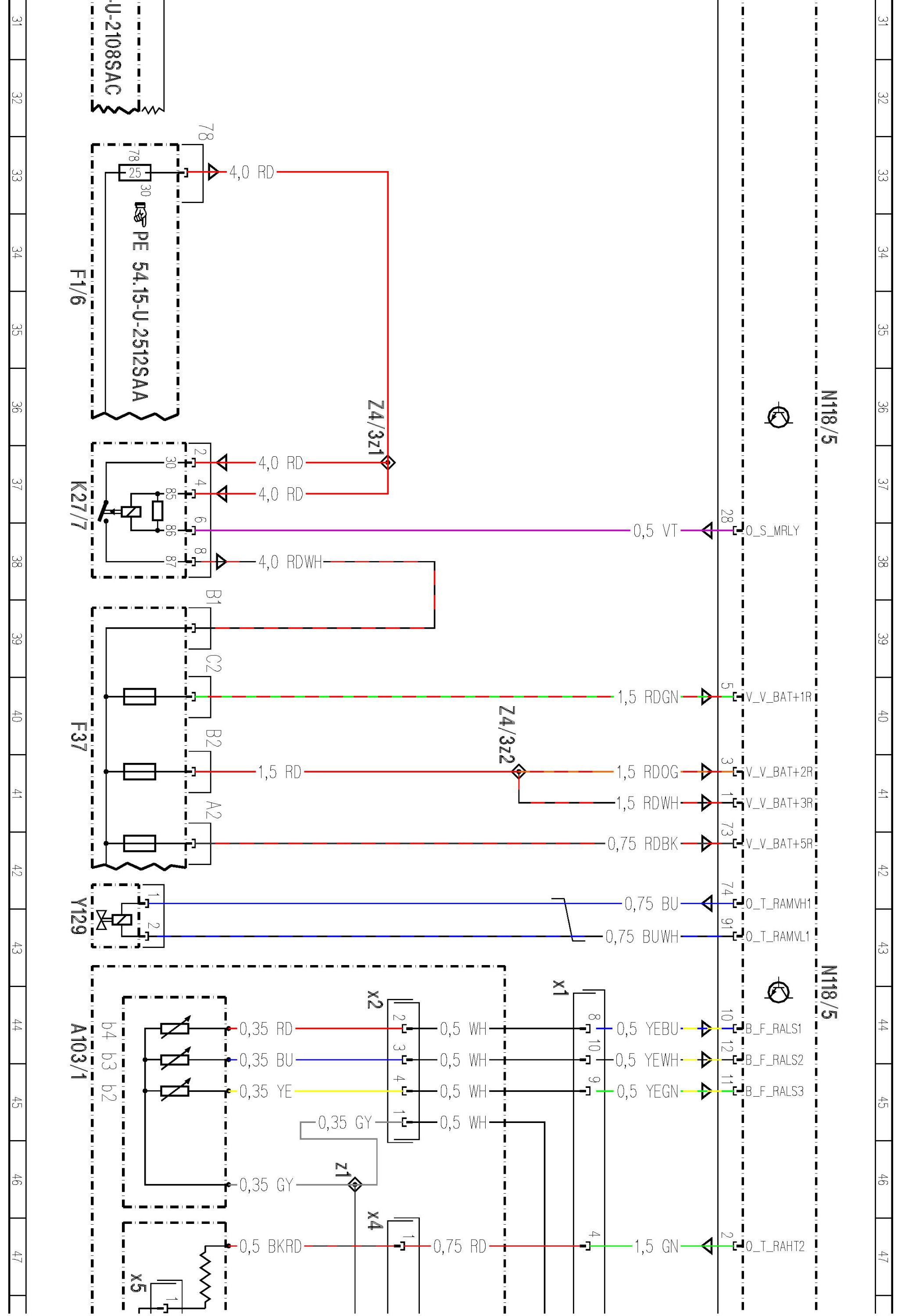

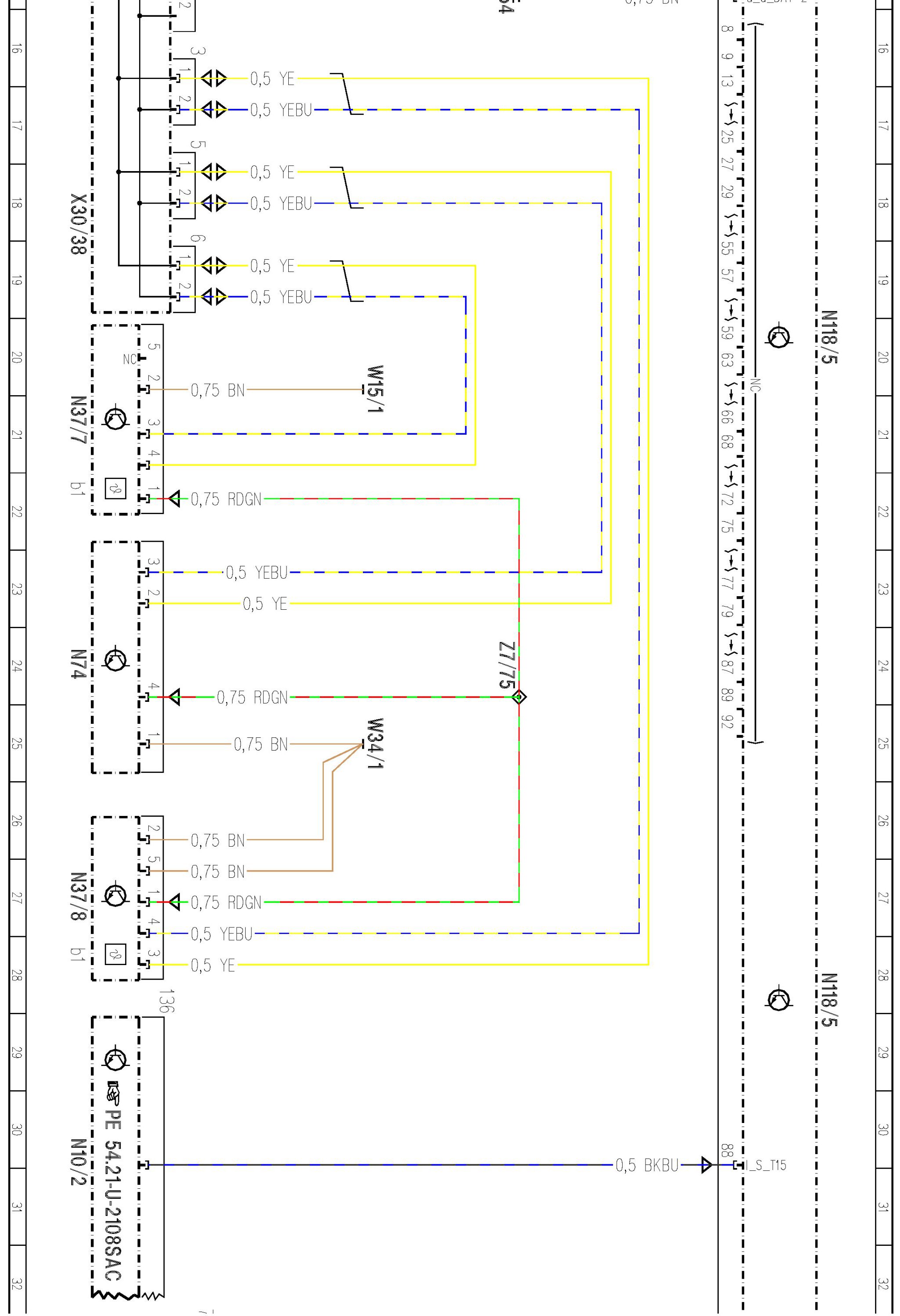

PE14.40-U-2101SAA AdBlue Control Unit

ENGINE 642.8 in MODEL 221
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)

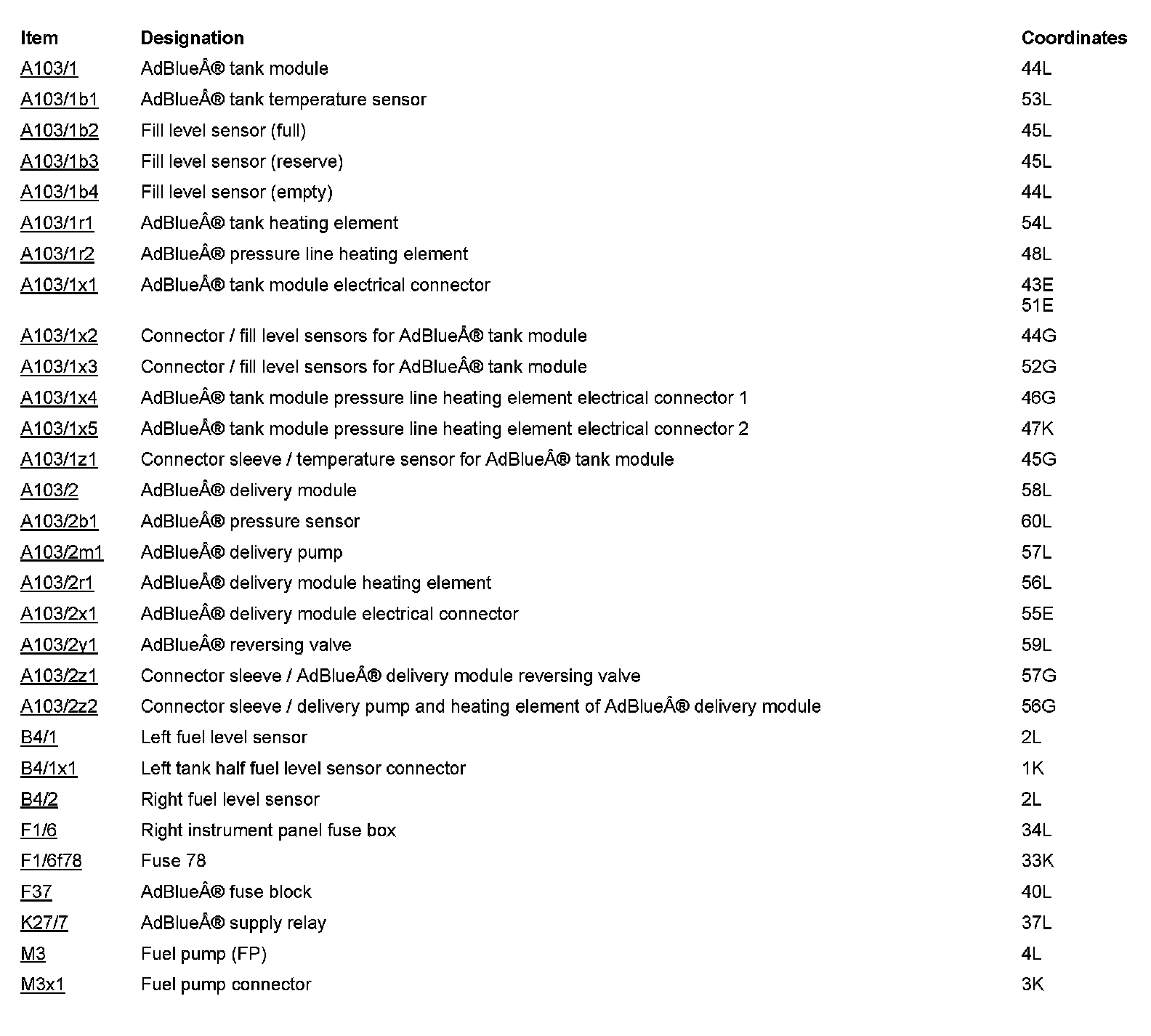

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
