GF00.19-P-0001-02SXE Overall Network (GVN), Networking of Components

GF00.19-P-0001-02SXE Overall Network (GVN), Networking Of Components







A6n1 STH control unit (model 216 with code (228) Stationary heater) STH or HB [ZUH] control unit (model 221 with code (228) Stationary heater)
M25/1 Lumbar pump M40 Multicontour seat pneumatic pump (with code (409) Left/right front multicontour seats)
M40/1 Pneumatic pump for dynamic seat control (with code (432) Left and right dynamic multicontour seat)
N2/13 WSS (Weight Sensing System) control unit (model 221 with code 494) USA version)
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N22/1 AAC [KLA] control unit
N22/6 Rear control unit (model 216)
N25/6 Rear seats control unit (model 221 with code (223) Rear seat bench with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints or for code (276) Memory in rear or with code (402) Rear comfort seats, incl. seat heating and seat ventilation or with code (872) Electrically heated left and right rear seats)
N26/9 Special vehicle multifunction control unit (SVMCU [MSS]) (model 221 with code (450) Taxi version)
N26/14 Special vehicle multifunction control unit (SVMCU [MSS]) (special-purpose vehicles model 221)
N28/1 Trailer recognition control unit (model 221 with code (550) Trailer hitch)
N32/1 Left front seat control unit
N32/2 Right front seat control unit
N32/15 Left front multicontour backrest control unit (with code (409) Left/ right front multicontour seats)
N32/16 Right front multicontour backrest control unit (with code (409) Left/ right front multicontour seats)
N32/19 Left front dynamic seat control unit (with code (432) Left and right dynamic multicontour seat)
N32/20 Left rear multicontour backrest control unit (model 221 with code (406) Rear multicontour seat)
N32/21 Right rear multicontour backrest control unit (model 221 with code (406) Rear multicontour seat)
N32/22 Right front dynamic seat control unit (with code (432) Left and right dynamic multicontour seat)
N62 PTS control unit (with code (220) Parktronic system (PTS))
N66/2 Backup camera control unit (with code (218) Backup camera)
N69/1 Left door control unit (model 216) Left front door control unit (model 221)
N69/2 Right door control unit (model 216) Right front door control unit (model 221)
N69/3 Left rear door control unit (model 221)
N69/4 Right rear door control unit (model 221)
N69/5 Keyless Go control unit (with code (889) Keyless Go)
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N73 EIS [EZS] control unit
N88 TPM [RDK] control unit (with code (475) Tire pressure monitor (Siemens) or with code (470) Tire pressure monitor (standard) or with code (494) USA version)
N93 Central gateway control unit
N110 Weight Sensing System (WSS) control unit (model 216 with code (494) USA version)
N121 TLC [HDS] control unit (with code (881) Remote trunk closing (RTC [HDFS])
B Interior CAN
D Diagnostic CAN
E Chassis CAN
F Central CAN
G Front end CAN

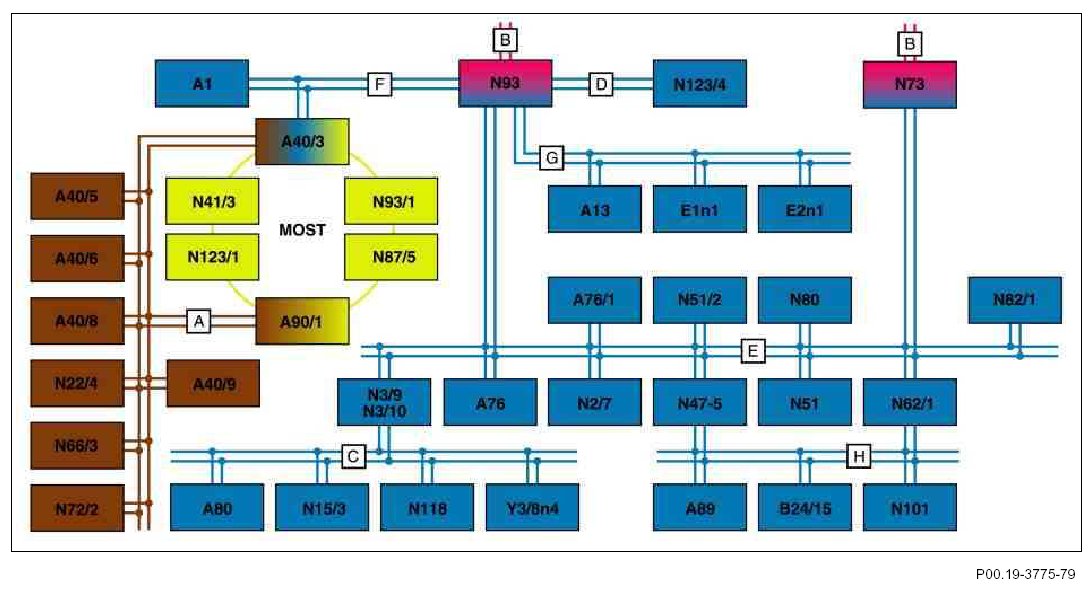

A1 Instrument cluster
A13 Electric parking brake controller unit
A40/3 COMAND controller unit
A40/5 Left rear display (model 221 with code (864) Rear entertainment system)
A40/6 Right rear display (model 221 with code (864) Rear entertainment system)
A40/8 COMAND display
A40/9 Front central operating unit
A76 Left front reversible emergency tensioning retractor (model 221)
A76/1 Right front reversible emergency tensioning retractor (model 221)
A80 Intelligent servo module for DIRECT SELECT
A89 DTR controller unit (with code (219) Distronic (DTR) or with code (233) Distronic Plus)
A90/1 TV combination tuner (analog/ digital) (for code (863) Digital/ analog TV tuner)
B24/15 Yaw rate, lateral and longitudinal acceleration sensor
E1n1 Xenon headlamp control unit (for model 221 with code (615) Bi- xenon headlamp unit with integrated curve illumination or model 216)
E2n1 Xenon headlamp control unit (for model 221 with code (615) Bi- xenon headlamp unit with integrated curve illumination or model 216)
N2/7 Restraint systems control unit
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N15/3 ETC control unit (with transmission 722.6)
N22/4 Rear air conditioning control unit (model 221 with code (582) Rear air conditioner)
N41/3 Voice control system control unit (VCS [SBS]) (with code (390-396) Linguatronic or with code (813) Voice control system (VCS [SBS]))
N47-5 ESP control unit
N51 AIRmatic with ADS control unit (model 221 without code (487) Active Body Control (ABC))
N51/2 ABC control unit (model 221 with code (487) Active Body Control (ABC) or model 216)
N62/1 Radar sensors control unit (SGR) (with code (233) Distronic Plus)
N66/3 Audio/video controller control unit (model 221 with code (864) Rear entertainment system)
N72/2 RCP [HBF] control unit (for model 221 with code (406) Rear multicontour seat or with code (864) Rear entertainment system)
N73 EIS [EZS] control unit
N80 Steering column module
N82/1 Vehicle power supply control unit
N87/5 SDAR control unit (with code (536) SIRIUS satellite radio and code (494) USA version)
N93 Central gateway control unit
N93/1 Audio tuner control unit
N101 Night View Assist control unit (with code (610) Night View Assist)
N118 Fuel pump control unit
N123/1 Universal Portable CTEL Interface (UPCI [UHI]) control unit (with code (386) Preinstallation for telephone "Handy", UPCI system or code (387) Preinstallation for telephone "Handy", UPCI system, USA/Canada or code (388) Telephone "Handy", UPCI system or code (389) Mobile phone preinstallation with universal interface, USA/Canada)
N123/4 Emergency call system control unit (with code (494) USA version)
Y3/8n4 Fully integrated transmission control (VGS) control unit (with transmission 722.9)
A Telematics CAN
B Interior CAN
C Drive train CAN
D Diagnostic CAN
E Chassis CAN
F Central CAN
G Front end CAN
H Vehicle dynamics CAN
MOST Media Oriented System Transport (MOST)
