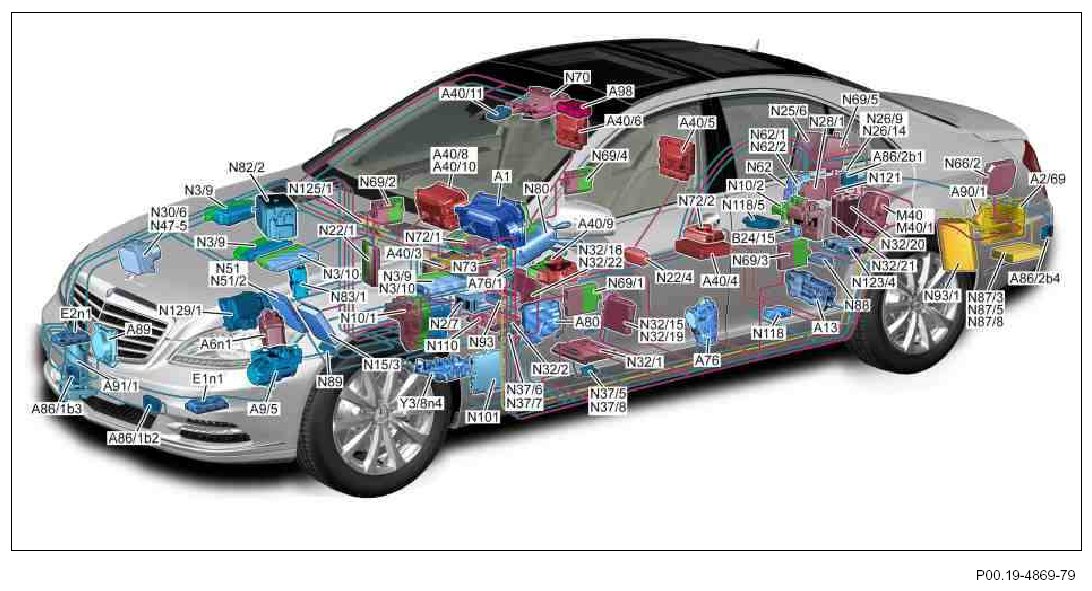

GF00.19-P-0001-01LEA Overall Network (GVN), Location of Components

GF00.19-P-0001-01LEA Overall Network (GVN), Location Of Components







A1 Instrument cluster
A2/69 Digital sound processor (with code (811) Advanced sound system)
A6n1 STH or HB control unit (with code (228) Stationary heater)
A9/5 Electric A/C compressor (Model 221.095/195)
A13 Electric parking brake control unit
A40/3 COMAND control unit
A40/4 DVD player (with code (864) Rear entertainment system)
A40/5 Left rear display (with code (864) Rear entertainment system)
A40/6 Right rear display (with code (864) Rear entertainment system)
A40/8 COMAND display (without (867) SPLITVIEW)
A40/9 Front central operating unit
A40/10 SPLITVIEW display (with code (867) SPLITVIEW)
A40/11 Multifunction camera (with code (238) Active Lane Keeping Assist, code (476) Automatic Lane Recognition, code (513) Speed Limit Assist or code (608) Adaptive Highbeam Assist)
A76 Left front reversible emergency tensioning retractor
A76/1 Right front reversible emergency tensioning retractor
A80 Intelligent servo module for DIRECT SELECT
A86/1b2 Front bumper, inner left radar sensor (with code (233) DISTRONIC PLUS or code (237) Active Blind Spot Assist)
A86/1b3 Front bumper, inner right radar sensor (with code (233) DISTRONIC PLUS or code (237) Active Blind Spot Assist)
A86/2b1 Rear bumper, outer right radar sensor (with code (234) Blind Spot Assist or code (237) Active Blind Spot Assist) A86/2b4 Rear bumper, outer left radar sensor (with code (234) Blind Spot Assist or code (237) Active Blind Spot Assist)
A89 DTR controller unit (with code (219) Distronic (DTR) or code (233) DISTRONIC PLUS, code (237) Active Blind Spot Assist or code (239) Adaptive Cruise Control Plus Light)
A90/1 TV combination tuner (analog/ digital) (for code (863) Digital/ analog TV tuner)
A91/1 Electrohydraulic power steering (for model 221.003/026/057/073/ 074/082/083/094/103/126/ 157/173/174/182/183/194, for model 221.054/056/080/084/ 086/087/154/156/180/184/186/ 187 as of 1.6.09, for model 221.070/ 170 as of 1.6.09 up to 31.8.10 without code (487) Active Body Control (ABC), for model 221.070/170 as of 1.9.10, for model 221.071/171 as of 1.6.09 without code (487) Active Body Control (ABC))
A98 Panoramic sliding roof control module (model 221.1 with code (413) Panoramic glass sunroof with top sliding sunroof )
B24/15 Yaw rate, lateral and longitudinal acceleration sensor
E1n1 Xenon headlamp control unit
E2n1 Xenon headlamp control unit
M40 Multicontour seat pneumatic pump (with code (409) Left/right front multicontour seats or code (406) Multicontour seats in rear)
M40/1 Pneumatic pump for dynamic seat control (with code (432) Left and right dynamic multicontour seat)
N2/7 Restraint systems control unit
N3/9 CDI control unit (diesel engine, with engine 629 located on left, with engine 642 located on right, with engine 651 located in center)
N3/10 ME-SFI [ME] control unit (gasoline engine, with engine 157, 272, 273, 278 located in center, with engine 156, 275, 276 located on left)
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N15/3 EGS control unit (with transmission 722.6) N22/1 AAC [KLA] control unit
N22/4 Rear AC control unit (with code (582) Rear air conditioner)
N25/6 Rear seat control unit (with code (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE- positioning function for outer seats and outer head restraints or Code (402) Rear head restraints including seat heater and seat ventilation or code (872) Left and right electric seat heater for rear seat )
N26/9 Special vehicle multifunction control unit (MSS) (with code (965) Electrical equipment for rental cars)
N26/14 Special vehicle multifunction control unit (SVMCU [MSS]) (Model 221.1 with code (Z07) Top protection, code (Z21) Fire extinguishing system, code (Z22) Panic alarm system (PAS [GAS]) or code (Z25) Emergency fresh air system incl. device carrier plate)
N28/1 Trailer recognition control unit (with code (550) trailer hitch)
N30/6 Regenerative braking system control unit (model 221.095/195)
N32/1 Left front seat control unit
N32/2 Right front seat control unit
N32/15 Left front multicontour backrest control unit (with code (409) Left/right front multicontour seats)
N32/16 Right front multicontour backrest control unit (with code (409) Left/right front multicontour seats)
N32/19 Left front dynamic seat control unit (with code (432) Left and right dynamic multicontour seat)
N32/20 Left rear multicontour backrest control unit (with code (406) Rear multicontour seats)
N32/21 Right rear multicontour backrest control unit (with code (406) Rear multicontour seats)
N32/22 Right front dynamic seat control unit (with code (432) Left and right dynamic multicontour seat)
N37/5 Left NOx sensor control unit (with engine 276.9, with engine with stratified-charge mode)
N37/6 Right NOx sensor control unit (with engine 276.9, with engine with stratified-charge mode)
N37/7 NOx sensor control unit downstream of diesel particulate filter (with engine 642.862/868 and code (U42) BlueTEC (SCR) diesel exhaust treatment)
N37/8 NOx sensor control unit downstream of SCR catalytic converter (with engine 642.862/868 and code (U42) BlueTEC (SCR) diesel exhaust treatment)
N47-5 ESP control unit (except Model 221.095/195)
N51 AIRmatic with ADS control unit (without code (487) Active Body Control (ABC) without code (Z07) Top protection)
N51/2 ABC control unit (with code (487) Active Body Control (ABC))
N62 PTS control unit (with code (220) PARKTRONIC or code (230) Exclusive parking assist)
N62/1 Radar sensors control unit (SGR) (with code (233) DISTRONIC PLUS up to 31.8.10, with code (234) Blind Spot Assist, with code (239) Adaptive Cruise Control Plus Light)
N62/2 Video and radar sensor system control unit (with code (233) DISTRONIC PLUS as of 1.9.10, code (237) Active Blind Spot Assist or code (238) Active Lane Keeping Assist)
N66/2 Reversing camera control unit (with code (218) Reversing camera and code (498) Japan version)
N69/1 Door control module front left
N69/2 Door control module front right
N69/3 Door control module rear left
N69/4 Door control module rear right
N69/5 Keyless-Go control unit (with code (889) Keyless-Go)
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N72/2 HBF control unit (with code (406) Multicontour seats in rear or code (864) Rear entertainment system)
N73 EZS control unit
N80 Steering column module
N82/2 Battery management system control unit (model 221.095/195)
N83/1 DC/DC converter control unit (model 221.095/195)
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N87/5 SDAR control unit (with code (536) SIRIUS satellite radio)
N87/8 High definition tuner control unit (with code (517) HD radio)
N88 TPM [RDK] control unit (with code (475) Tire pressure monitor (Premium), Schrader company) N89 Gear oil auxiliary pump control unit (Model 221.095/195, model 221.074/174)
N93 Central gateway control unit
N93/1 Audio tuner control unit
N101 Night View Assist control unit (for code (610) Night View Assist)
N110 WSS (Weight Sensing System) control unit (with code (494) USA version)
N118 Fuel pump control unit
N118/5 AdBlue� control unit (with engine 642.862/868 with code (U42) BlueTEC (SCR) diesel exhaust treatment)
N121 TLC [HDS] control unit (with code (881) Remote trunk closing (RTC [HDFS]))
N123/4 Emergency call system control unit (with code (359) TELE AID emergency call system)
N125/1 Media interface control unit (with code (518) Media interface)
N129/1 Power electronics control unit (model 221.095/195)
Y3/8n4 Fully integrated transmission control unit (VGS) (with transmission 722.9)
