AR33.20-P-0310-03SXS Install radial sealing ring into front wheel hub
- with CODE (Z07) Top protection

Special Tools:

Component Identification:

1 Clamp front wheel hub (9) in vise.
2 Pry old radial shaft sealing ring (1) out of front wheel hub (9) using screwdriver.

Do not damage the seat of the radial shaft sealing ring (1) otherwise the front wheel hub (9) must be replaced.

3 Clean seat of radial shaft sealing ring (1) in front wheel hub (9).

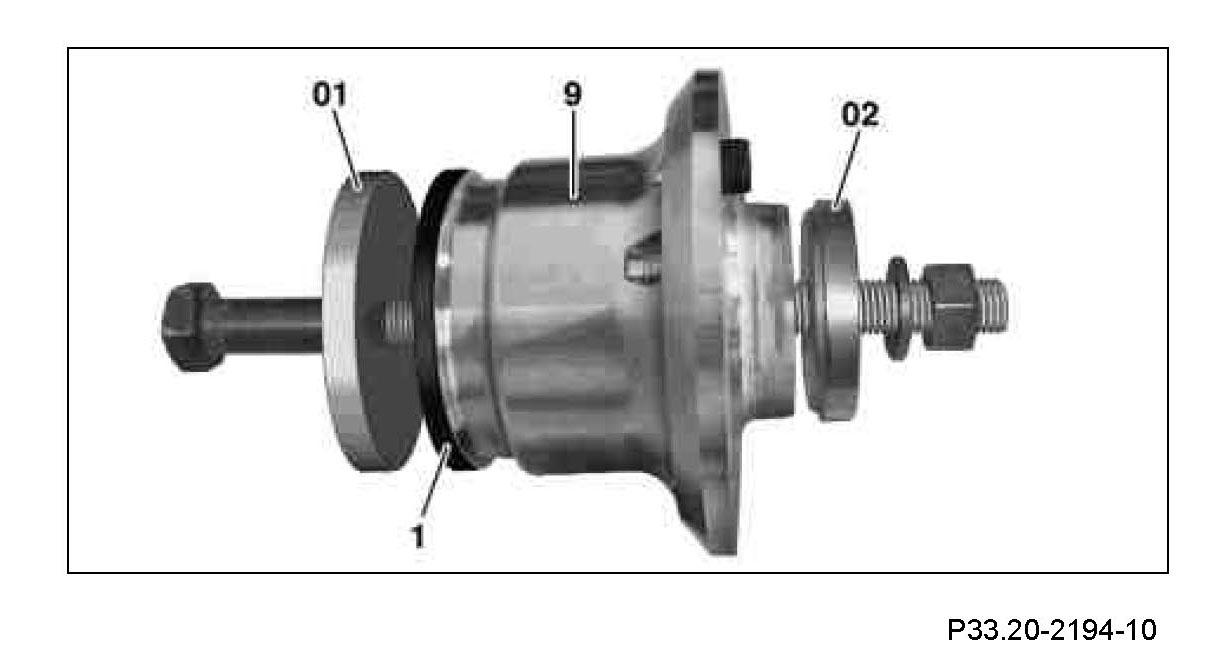

4 Using pressure plate (01) for pulling in radial shaft sealing ring (1) and pressure plate (02) for counter holding at front wheel hub (9), pull new radial shaft sealing ring (1) into front wheel hub (9) until flush.

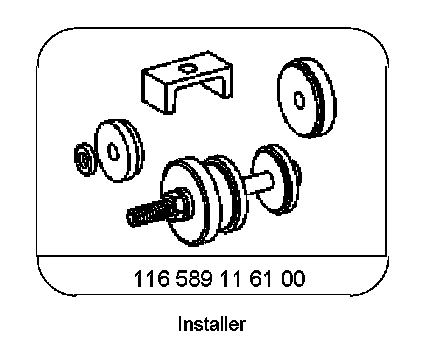

Insertion device 116 589 11 61 00 includes:
- pressure plate (01), part number 116 589 11 61 05
- pressure plate (02), part number 116 589 11 61 03
