Wheel Bearing: Adjustments

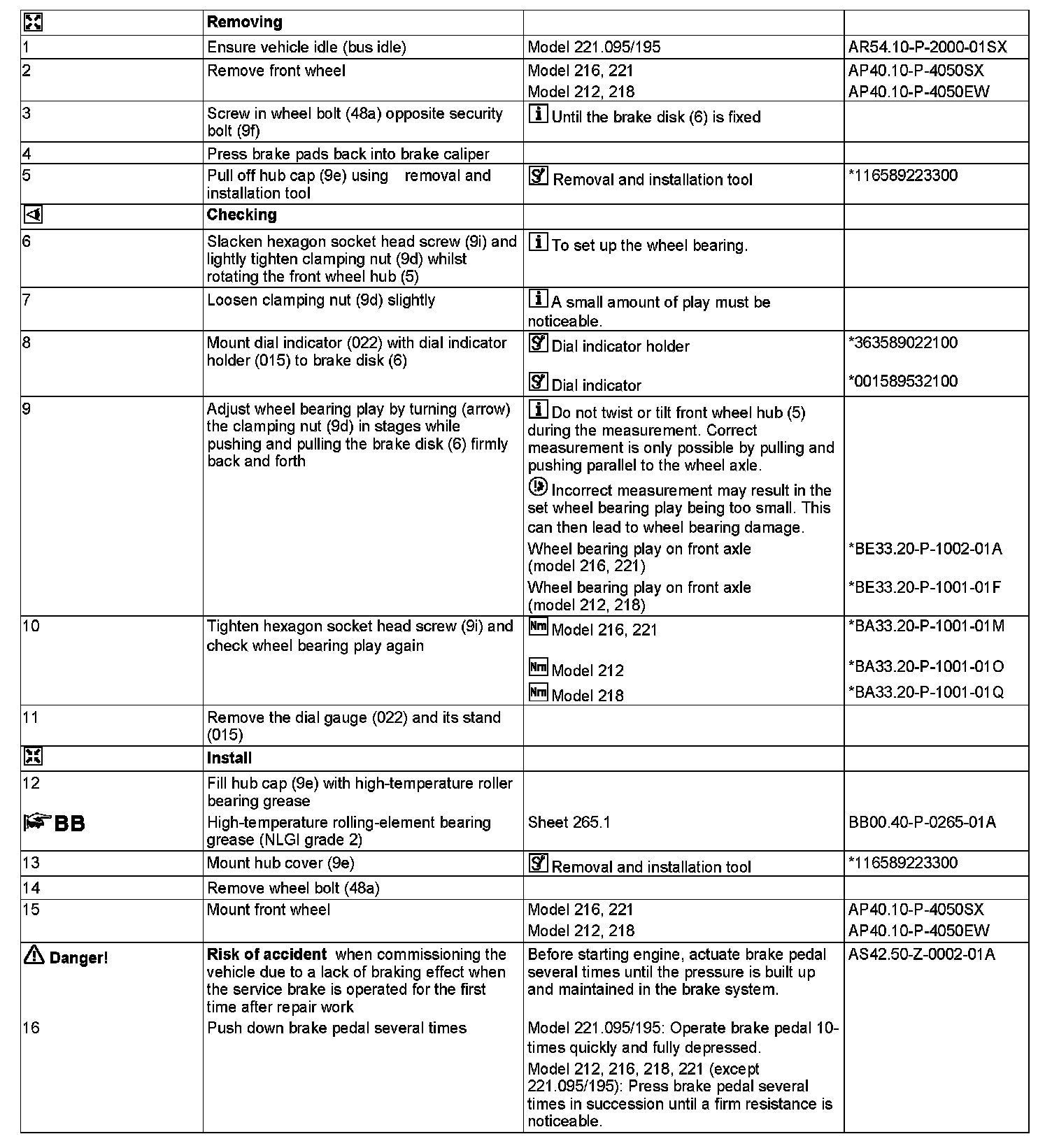

AR33.20-P-0300SX Adjust Wheel Bearing Play
MODEL 221
- except CODE (Z07) Top protection without 4MATIC
MODEL 216 without 4MATIC
MODEL 212 (except 212.08 /09 /28 /29)
MODEL 218 (except 218.39)

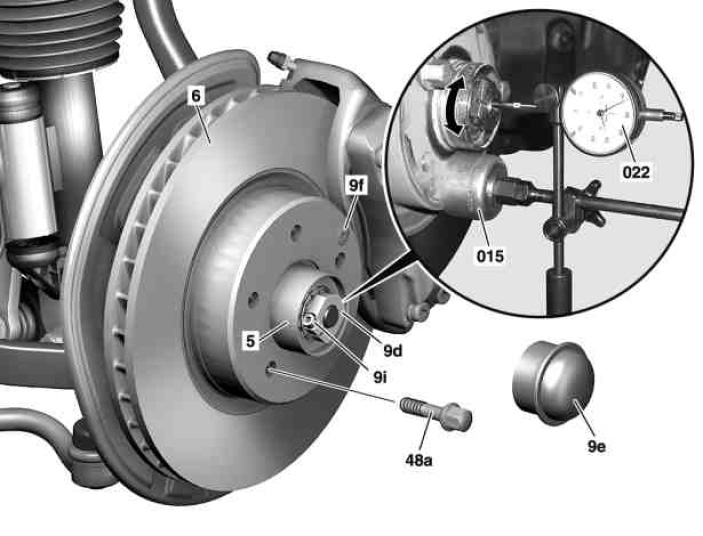

015 Dial indicator holder
022 Dial indicator
5 Front wheel hub
6 Brake disk
9d Clamp nut
9e Hub cover
9f Security bolt
9i Hexagon socket head screw
48a Wheel bolt

















116 589 22 33 00
Removal and installation tool





363 589 02 21 00
Dial indicator holder





001 589 53 21 00
Dial indicator
