AR46.25-P-3015SXH Remove/Install Hydraulic Line of Power Steering
AR46.25-P-3015SXH Remove/install hydraulic line of power steering
- with electrohydraulic power steering (EHPS)

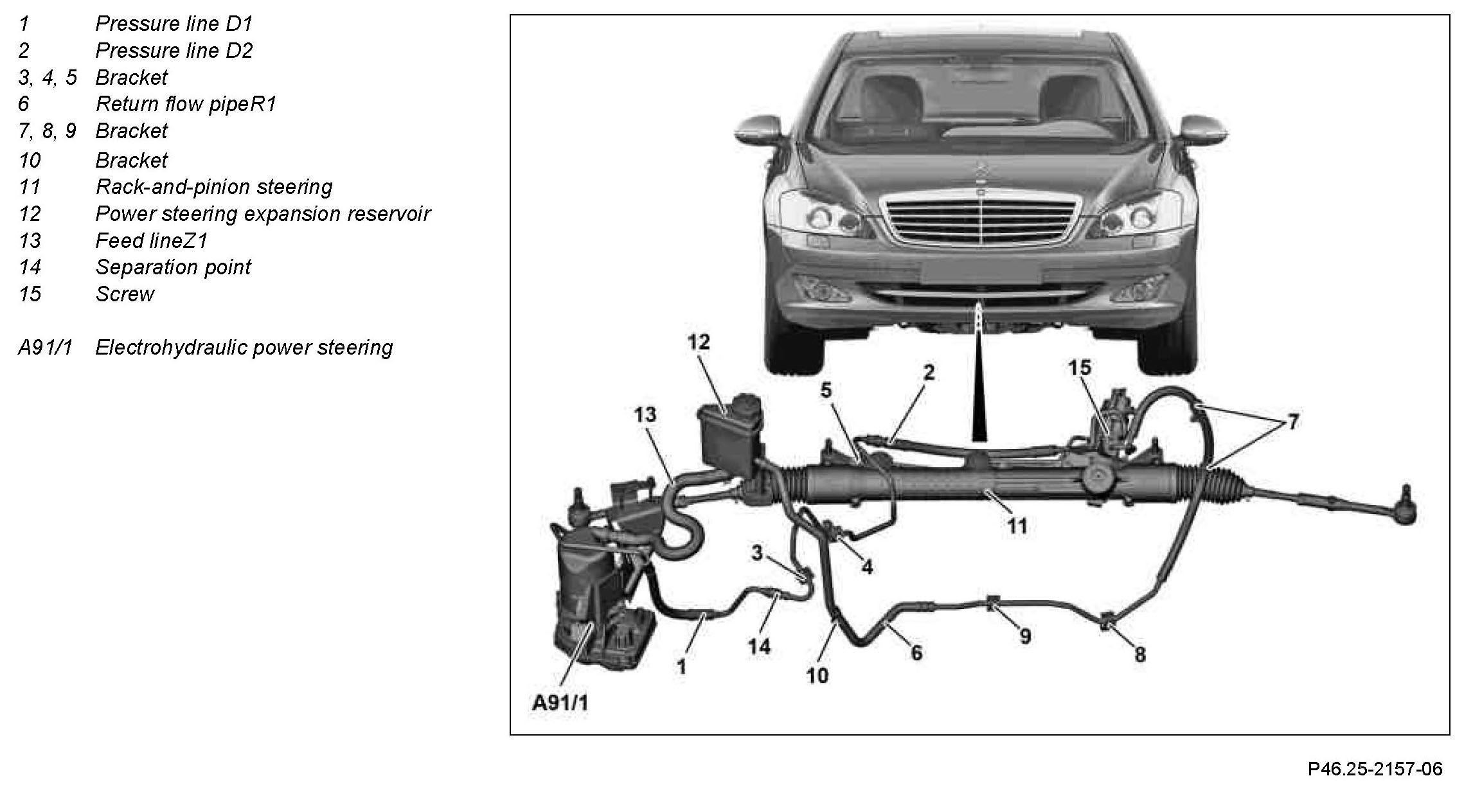

Component Identification:

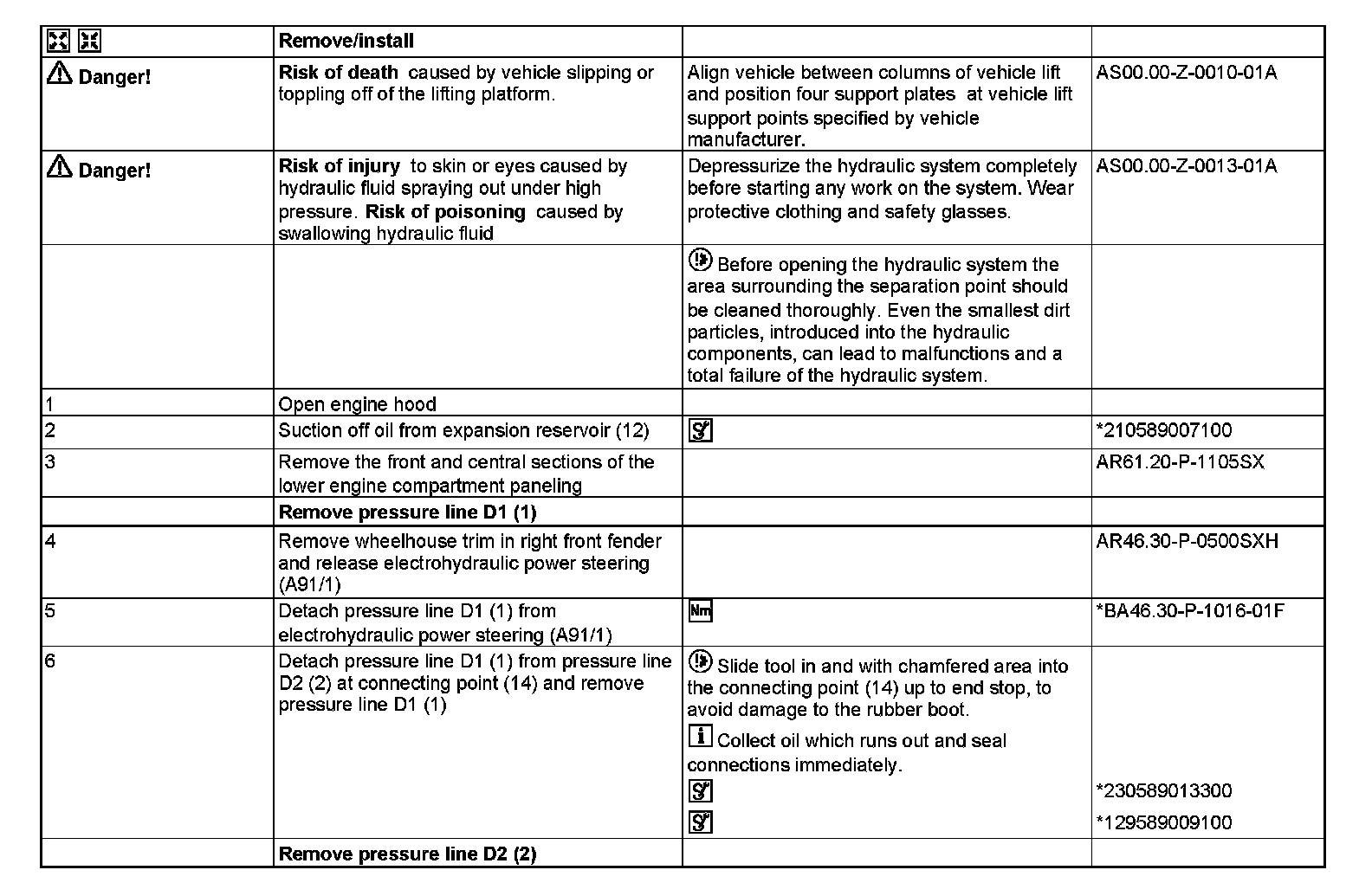

Steps 1-6:

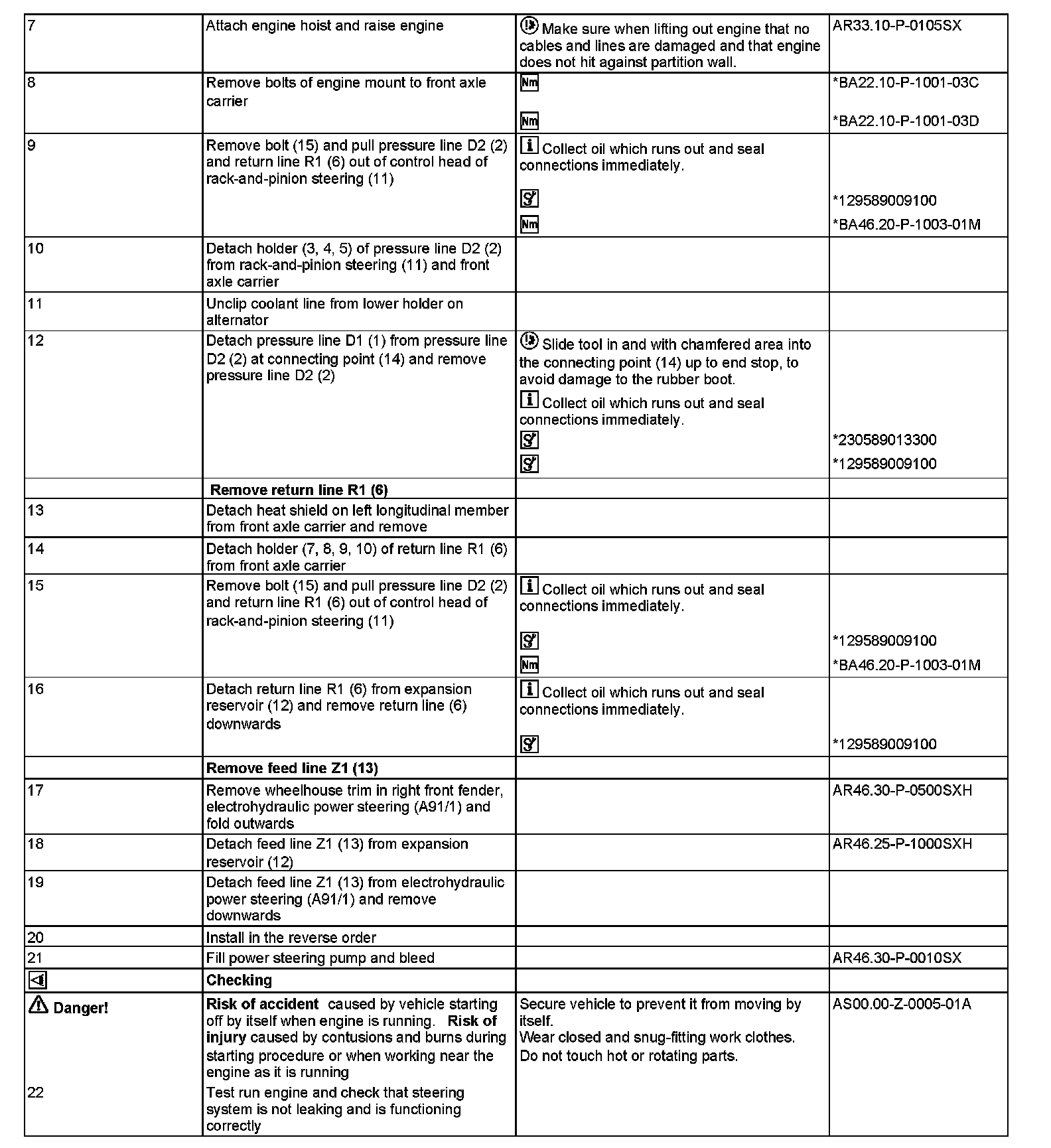

Steps 7-22:

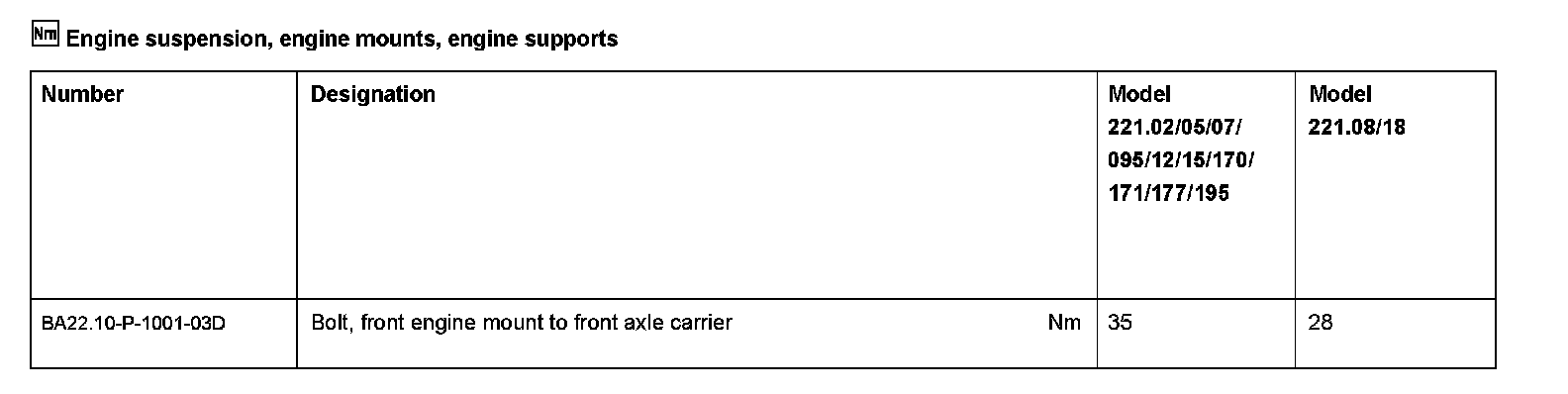

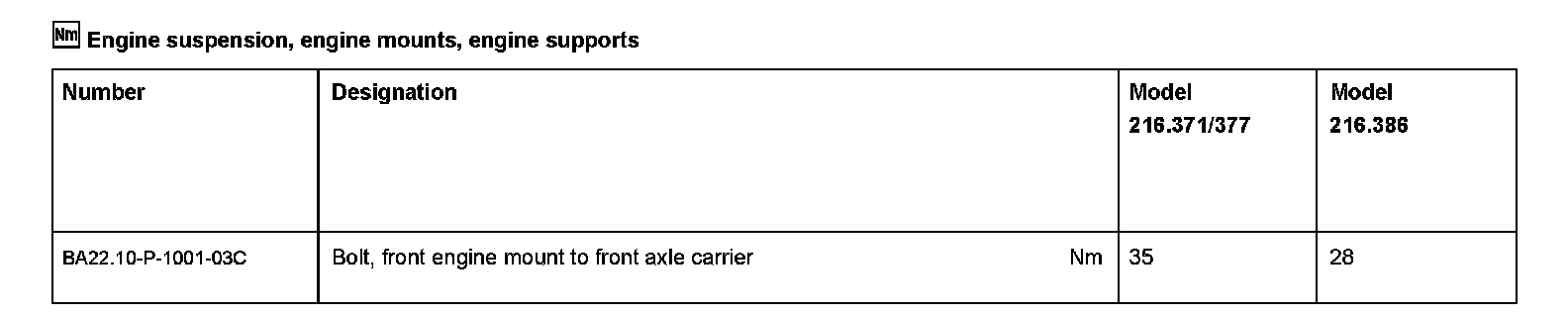

Engine Suspension, Engine Mounts, Engine Supports:
Engine Suspension, Engine Mounts, Engine Supports:

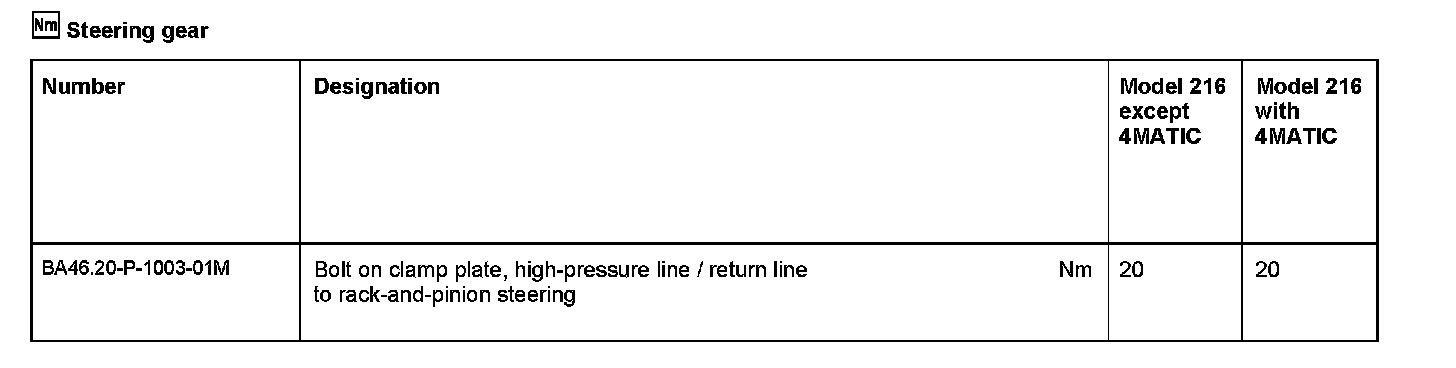

Steering Gear:

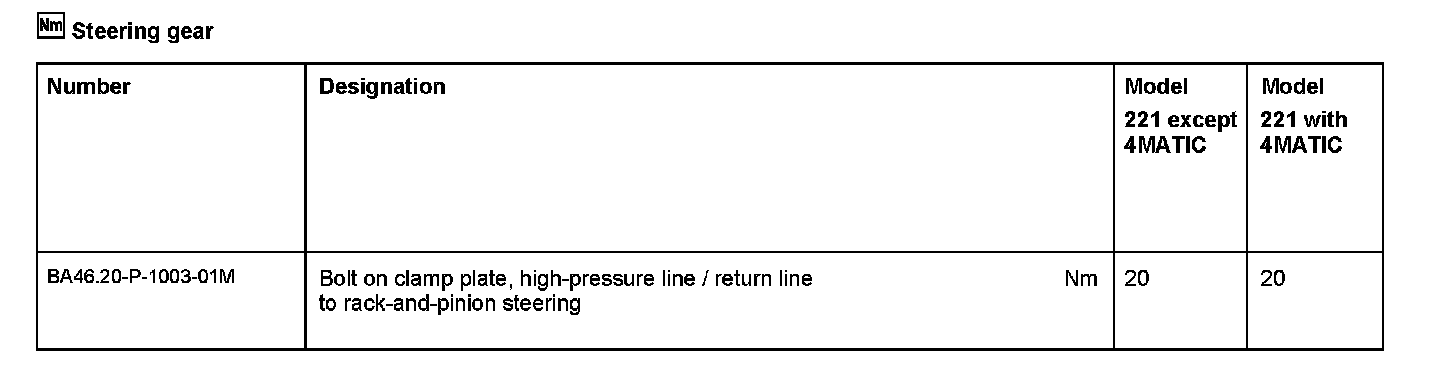

Steering Gear:

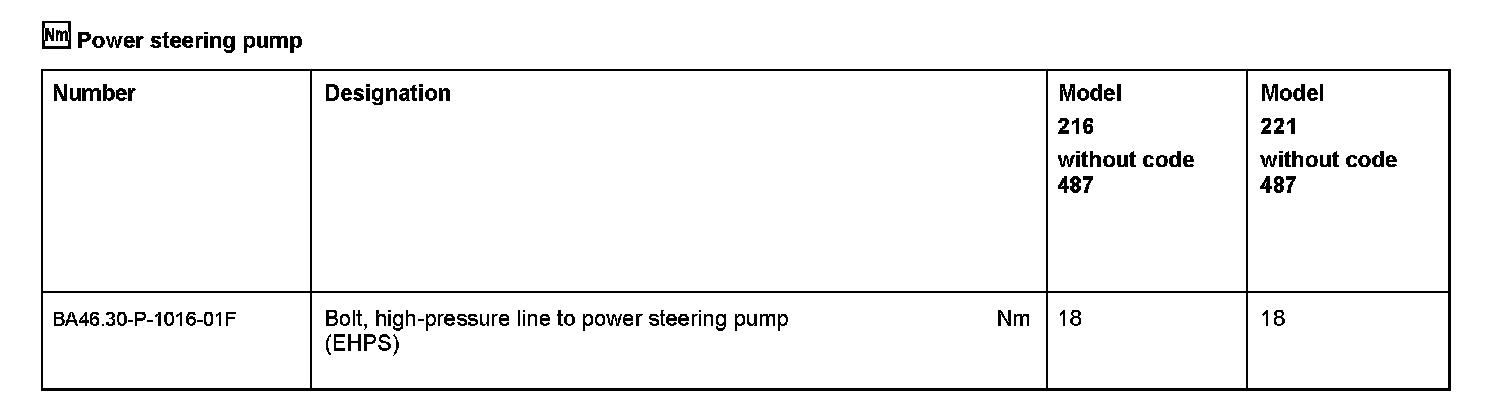

Power Steering Pump:

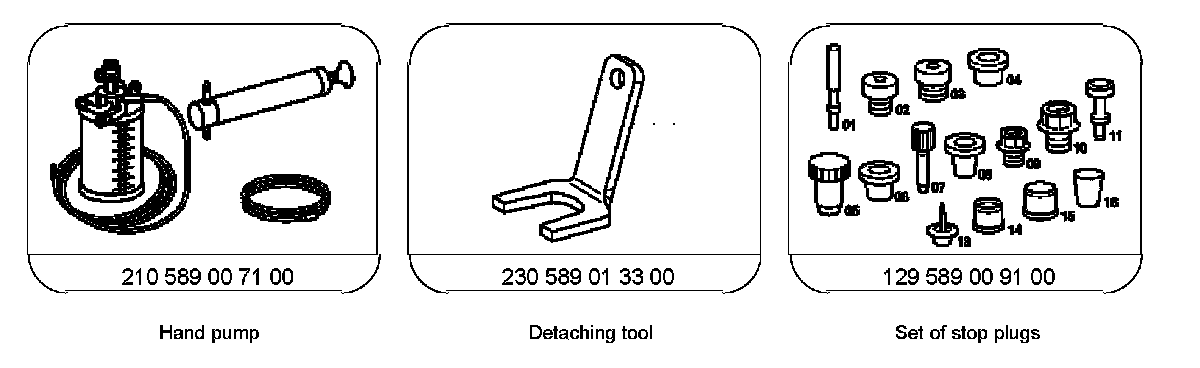

Special Tools:
