AR46.25-P-3015SXA Remove/Install Hydraulic Line of Power Steering



AR46.25-P-3015SXA Remove/install hydraulic line of power steering
- power steering pressure line

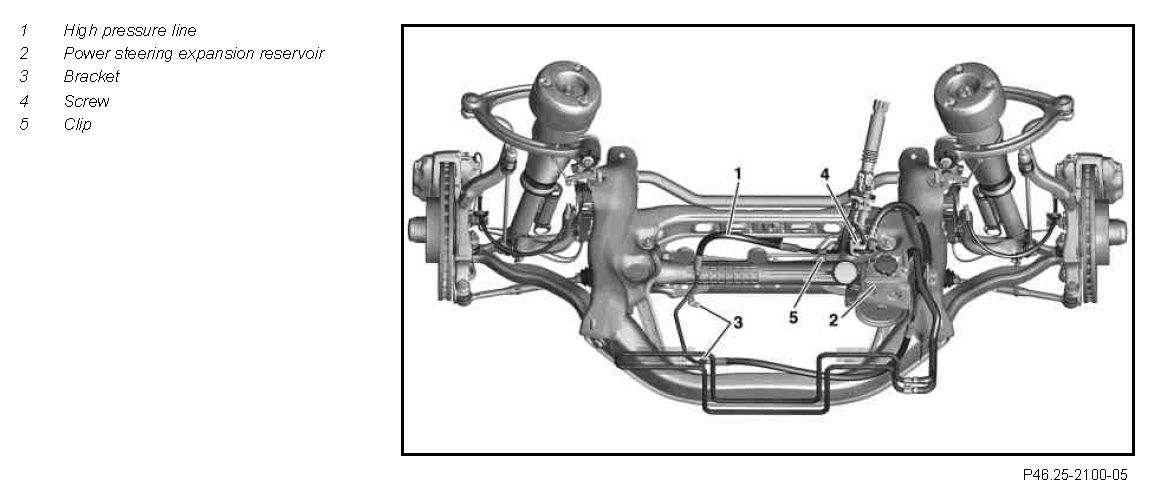

Component Identification:

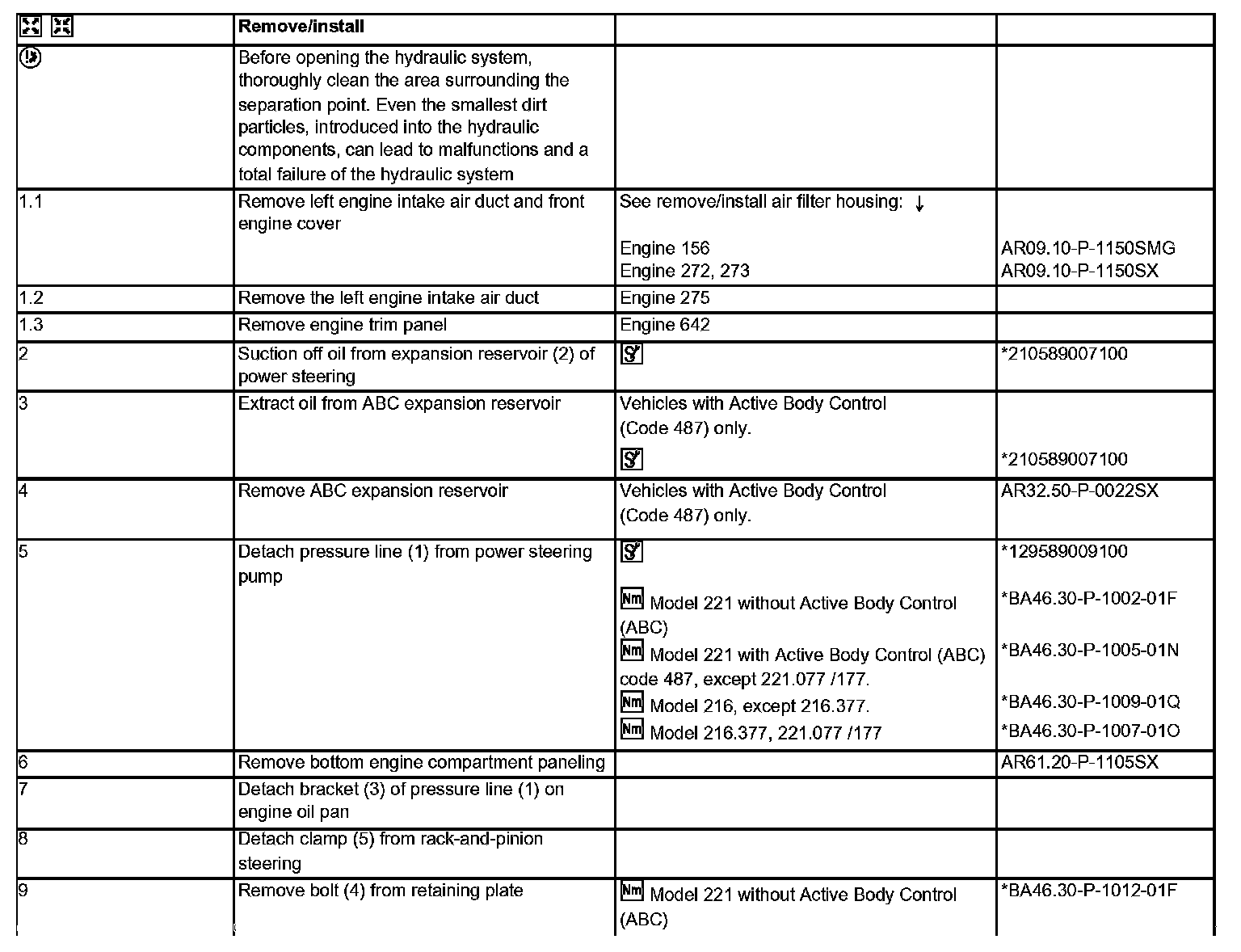

Remove/install Steps 1.1-9:

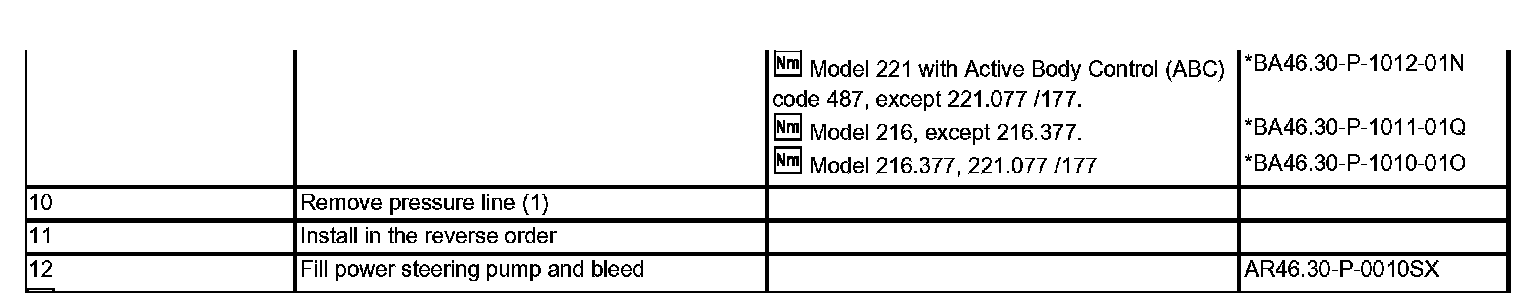

Remove/install Steps 9 (Continued)-12:

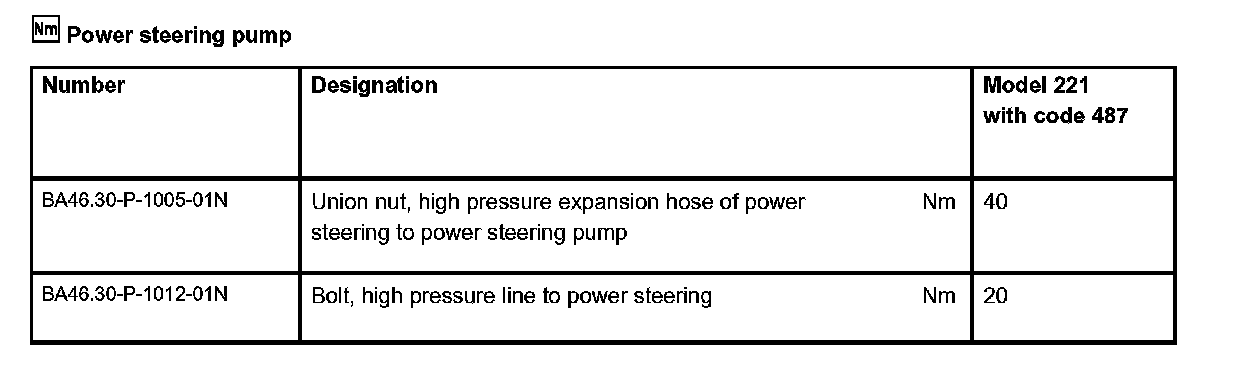

Power steering pump:

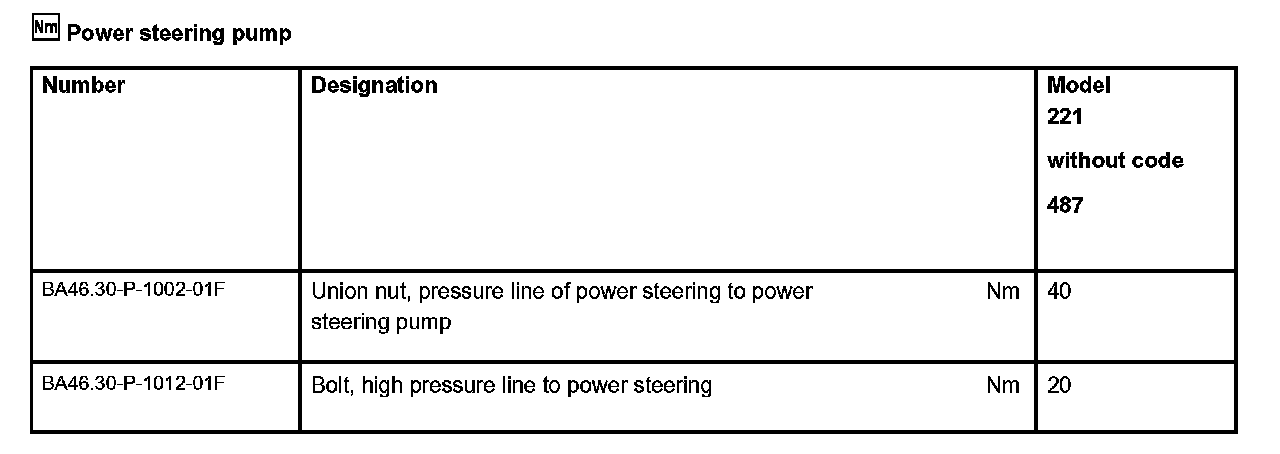

Power steering pump:

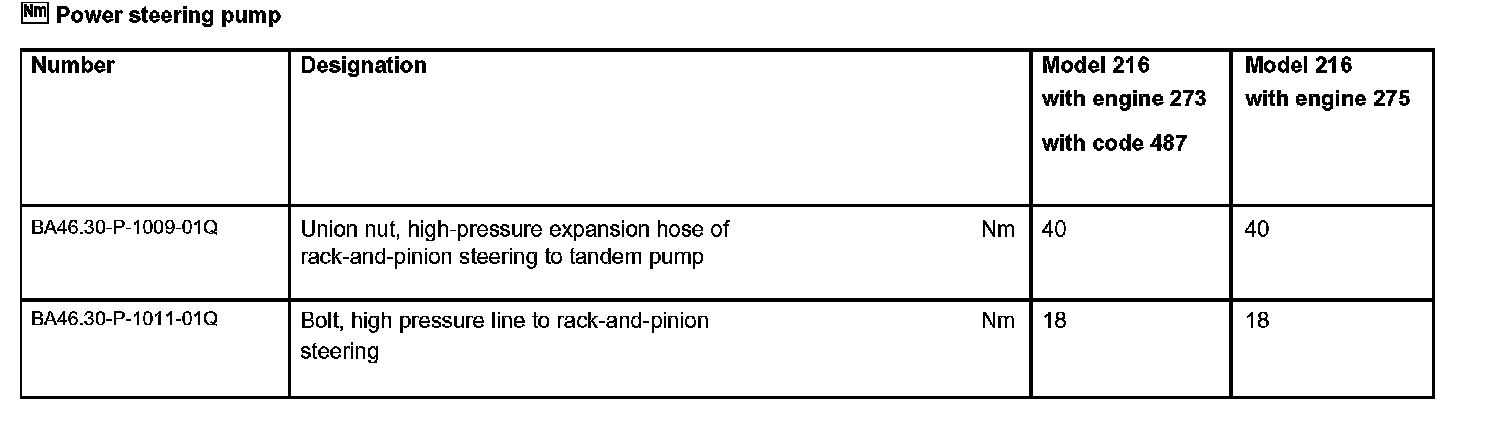

Power steering pump:

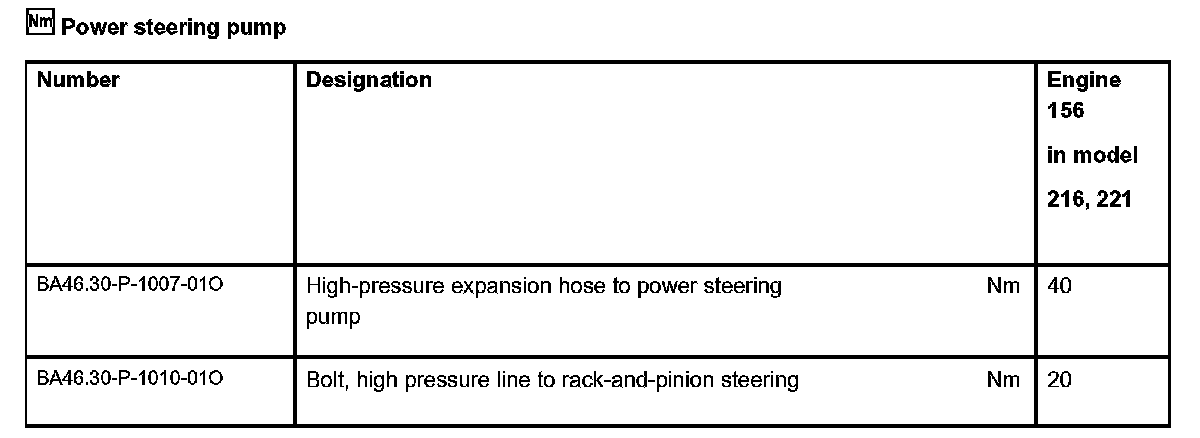

Power steering pump:

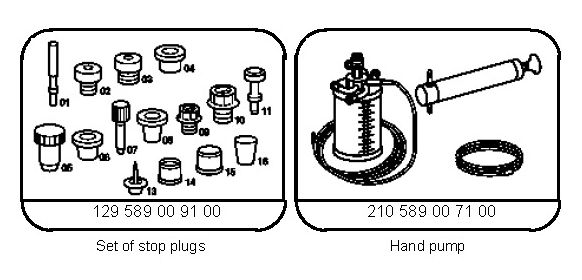

Special Tools:
