Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Maintenance >> Fluids >> Refrigerant Oil >> Service and Repair >> AR83.30-P-5253PB Correct Oil Level In Air Conditioning System If System Is Suddenly Drained

AR83.30-P-5253PB Correct Oil Level In Air Conditioning System If System Is Suddenly Drained



AR83.30-P-5253PB Correct Oil Level In Air Conditioning System If System Is Suddenly Drained

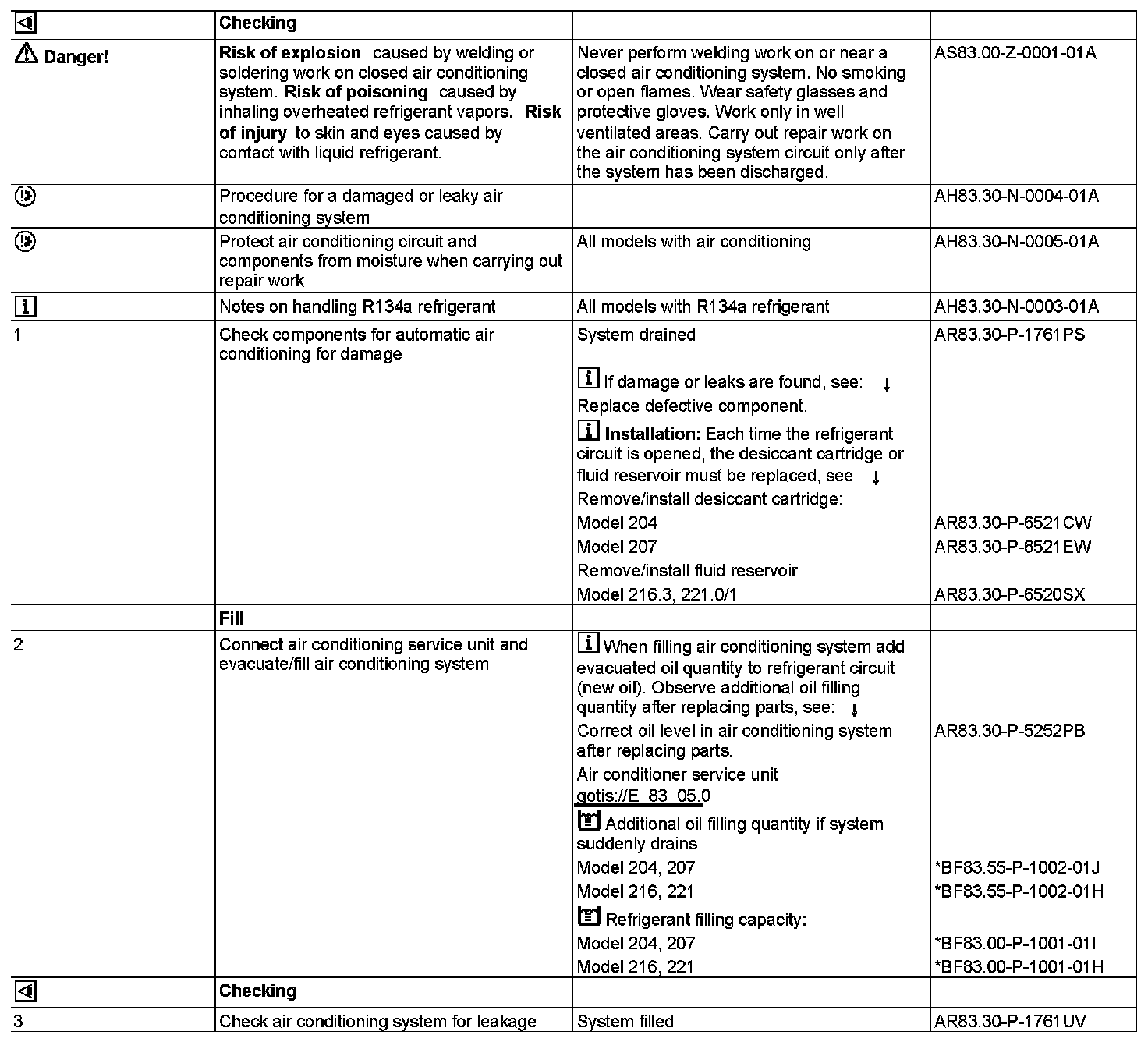

Steps 1-3:






Air conditioning system/automatic air conditioning


Air Conditioning System/automatic Air Conditioning:






Refrigerant compressor


Refrigerant Compressor:
