Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Maintenance >> Fluids >> Refrigerant Oil >> Service and Repair >> AR83.30-P-5252PB Correct Oil Level In Air Conditioning System After Replacing Parts

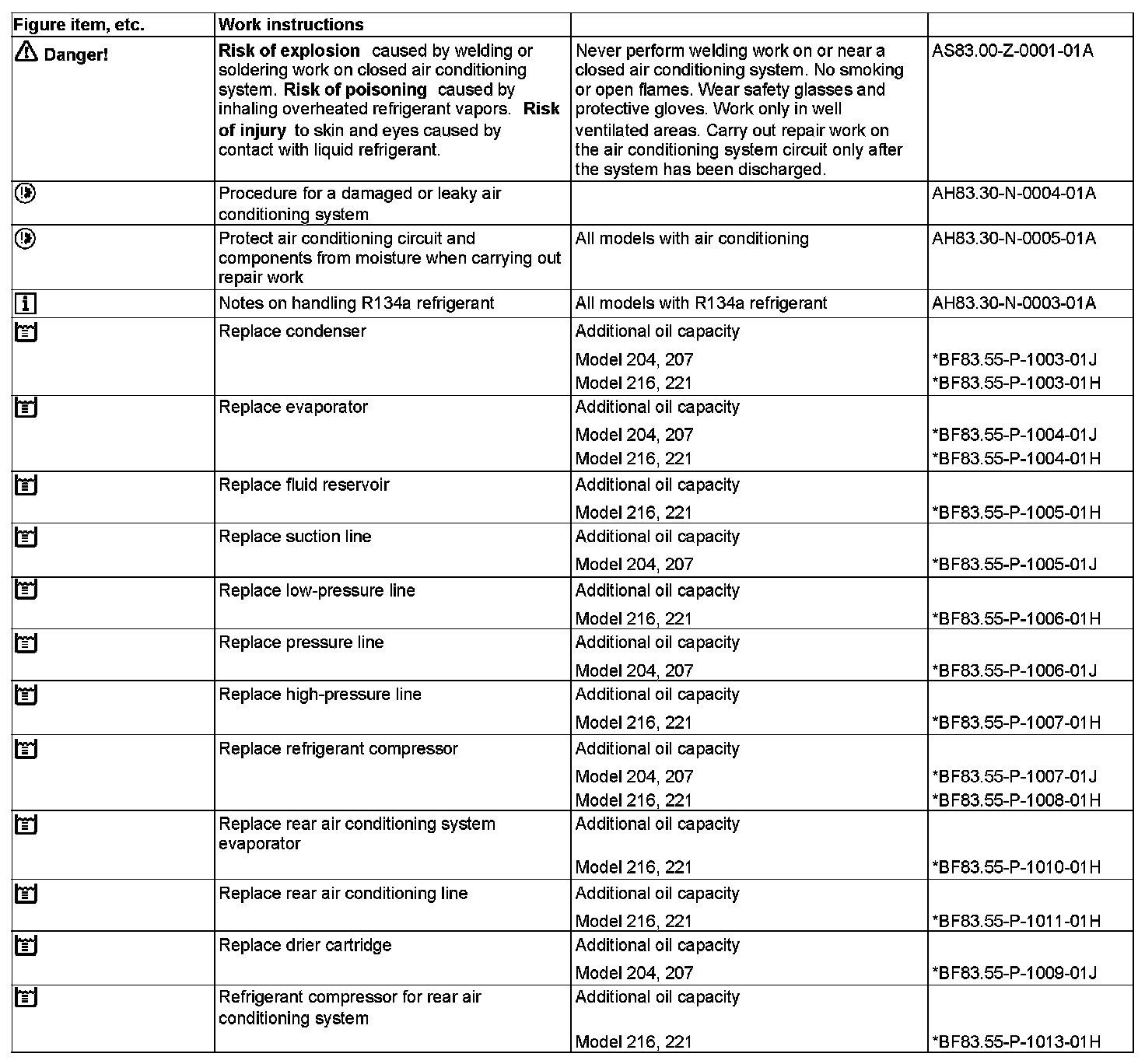

AR83.30-P-5252PB Correct Oil Level In Air Conditioning System After Replacing Parts



AR83.30-P-5252PB Correct Oil Level In Air Conditioning System After Replacing Parts

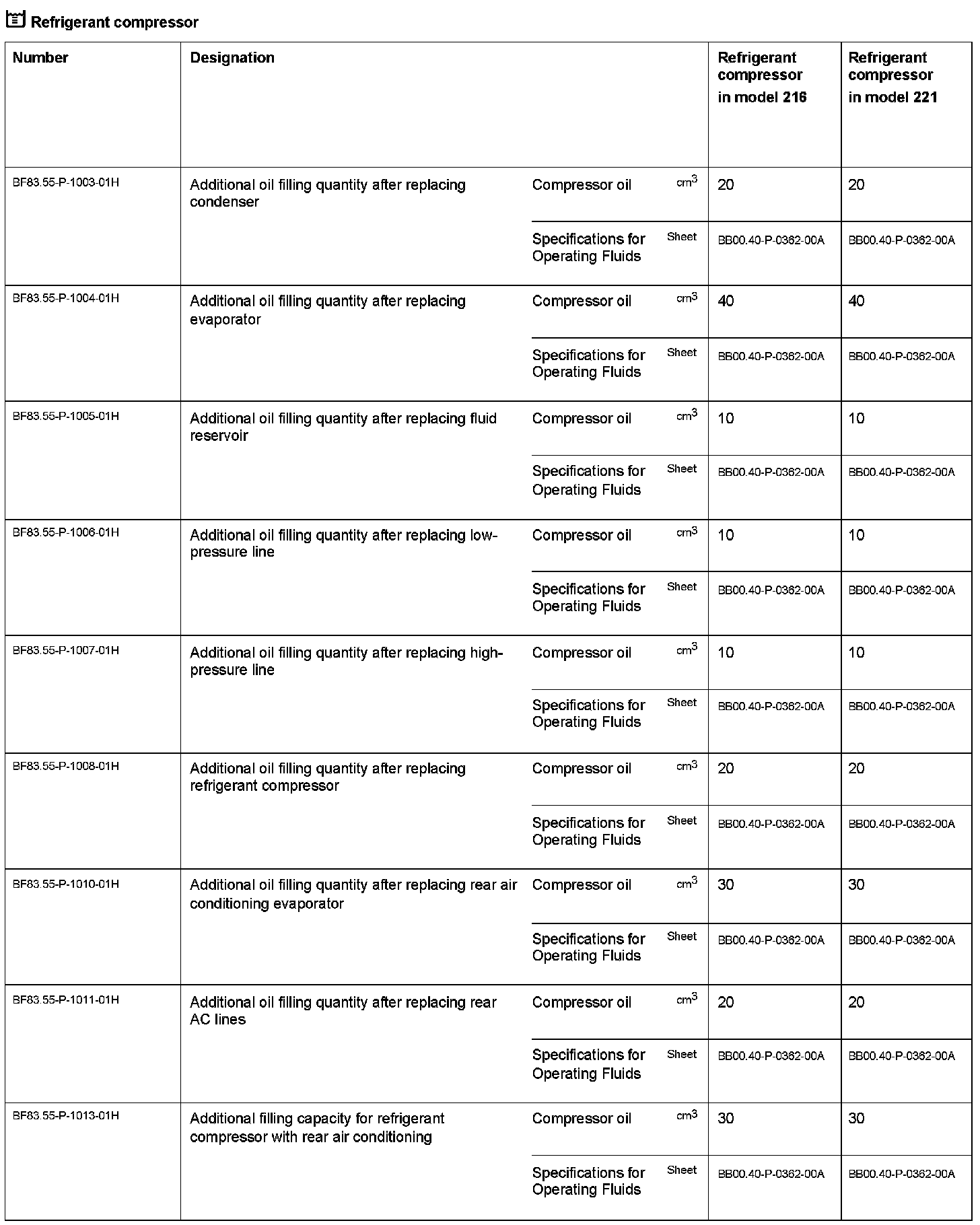

Refrigerant compressor


Refrigerant Compressor:




Refrigerant Compressor:
