Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Maintenance >> Fluids >> Refrigerant Oil >> Service and Repair >> AR83.30-P-5251PB Correct Oil Level In Air Conditioning System In the Event of Repair or Slow Refrigerant Loss

AR83.30-P-5251PB Correct Oil Level In Air Conditioning System In the Event of Repair or Slow Refrigerant Loss



AR83.30-P-5251PB Correct Oil Level In Air Conditioning System In The Event Of Repair Or Slow Refrigerant Loss

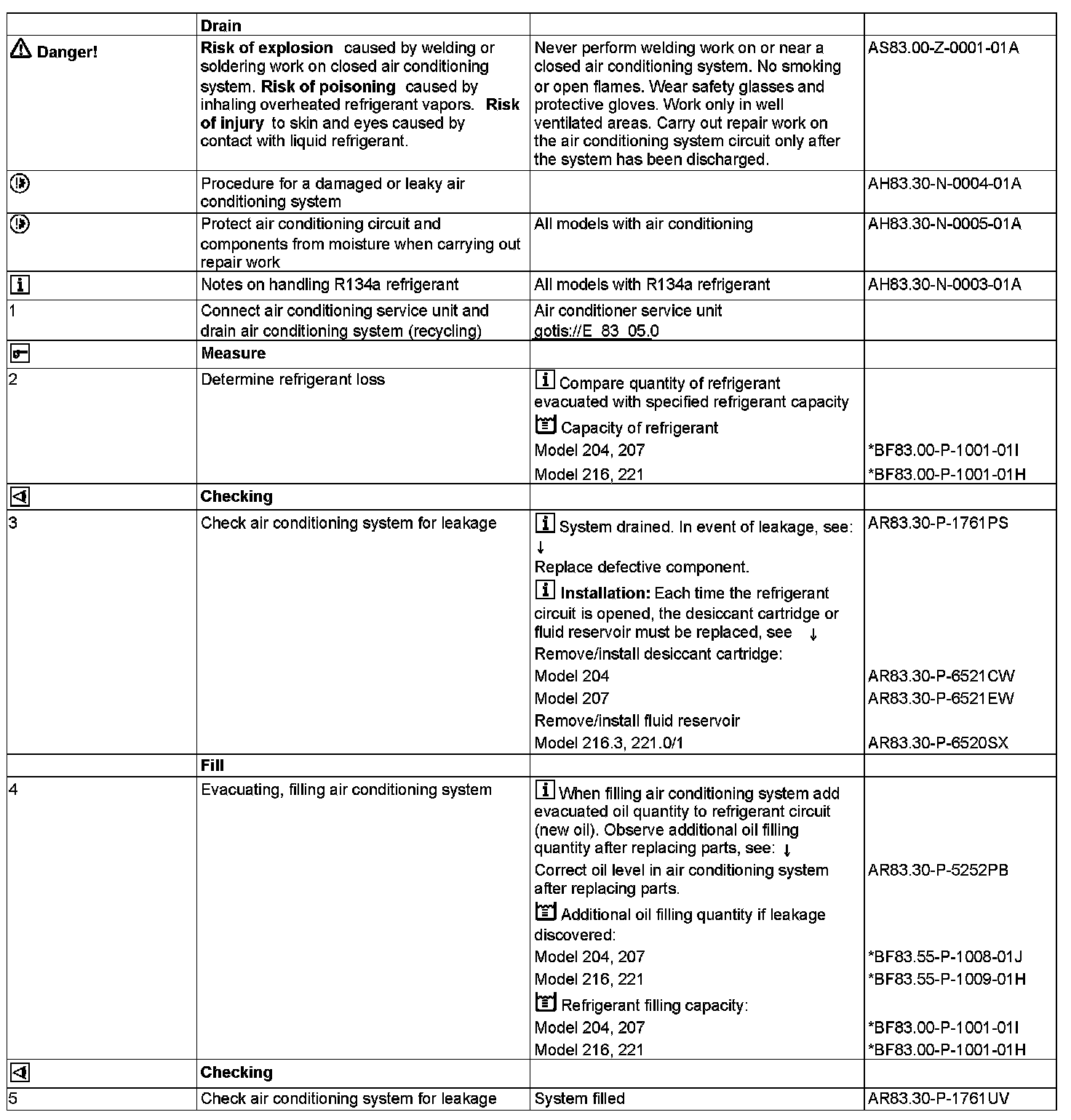

Steps 1-5:






Air conditioning system/automatic air conditioning


Air Conditioning System/automatic Air Conditioning:

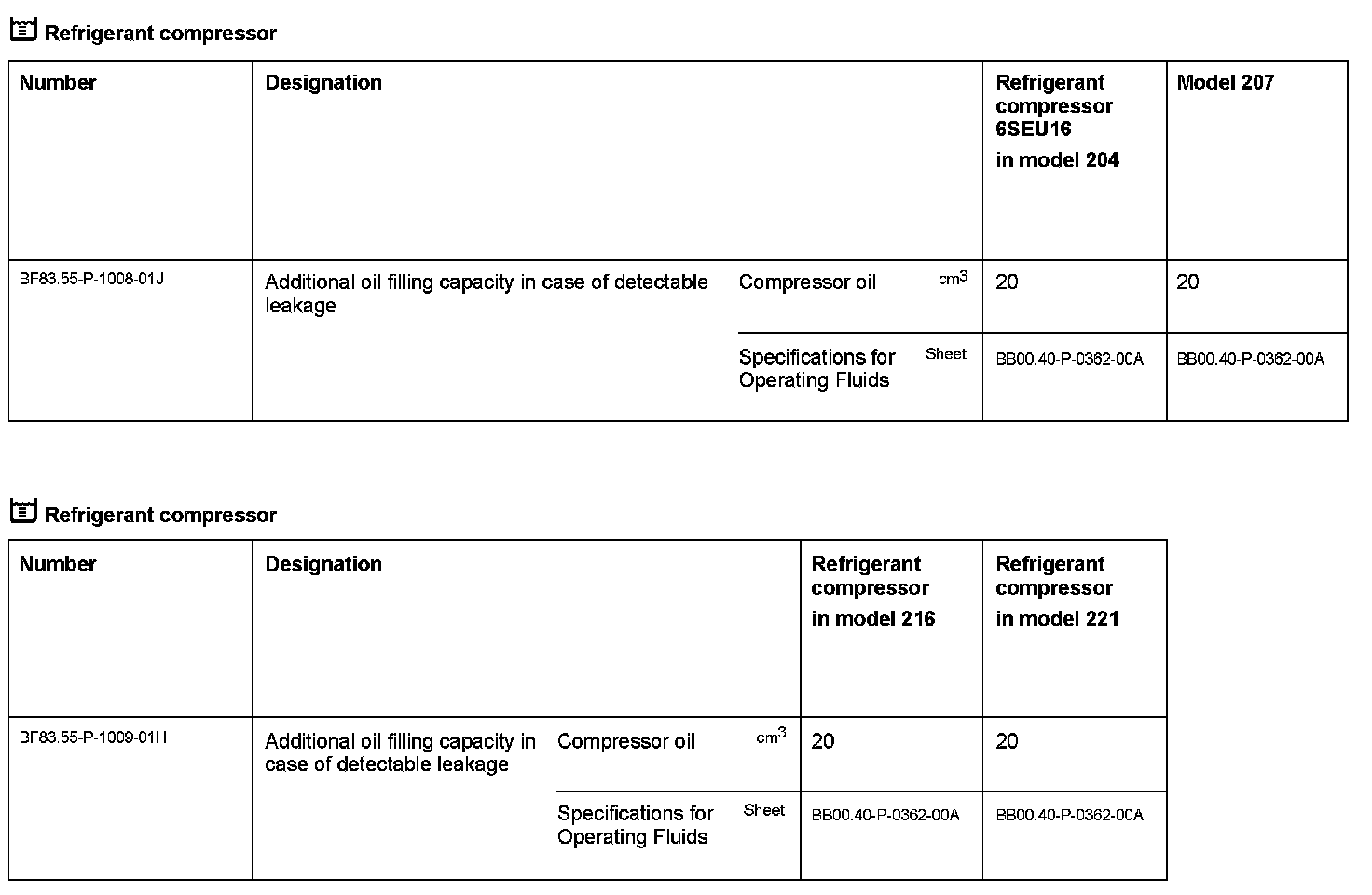

Refrigerant compressor


Refrigerant Compressor:
