S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Maintenance
>>
Fluids
>>
Power Steering Fluid
>>
Adjustments
Power Steering Fluid: Adjustments
AP46.00-P-4611SX Check and correct
power steering fluid
level

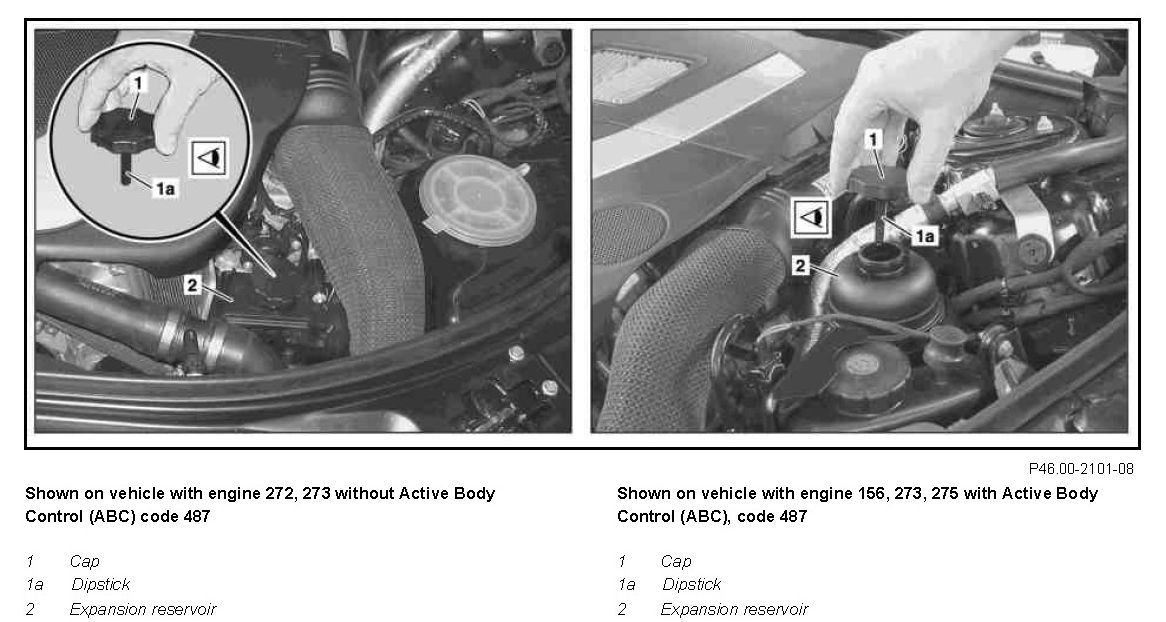

Component Identification:

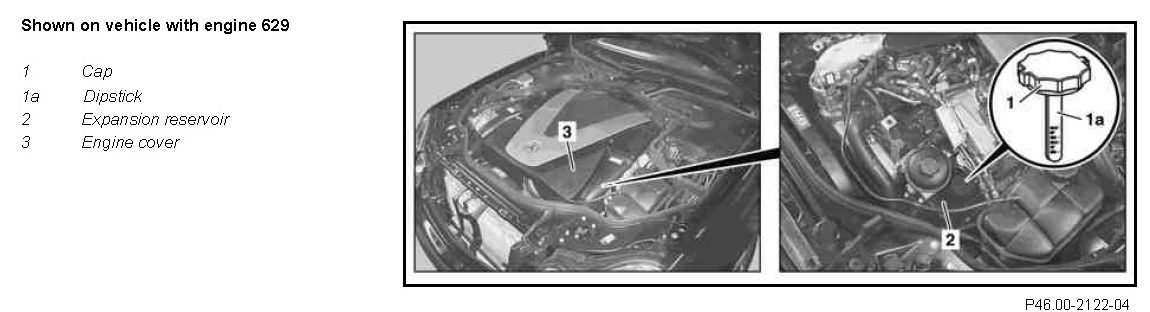

Component Identification:

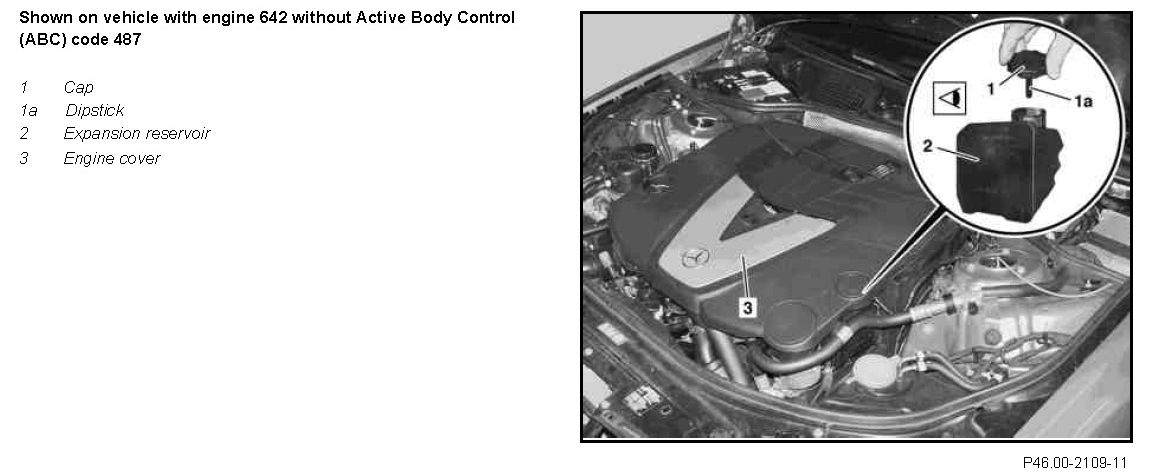

Component Identification:

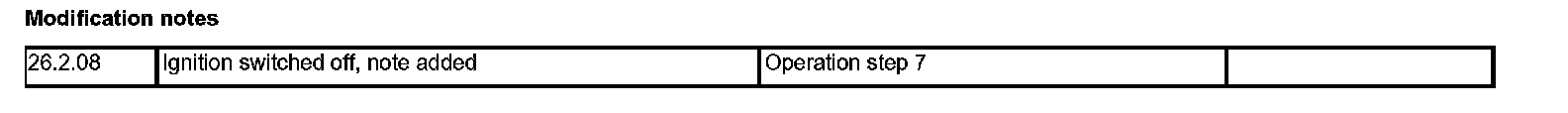

Modification notes:

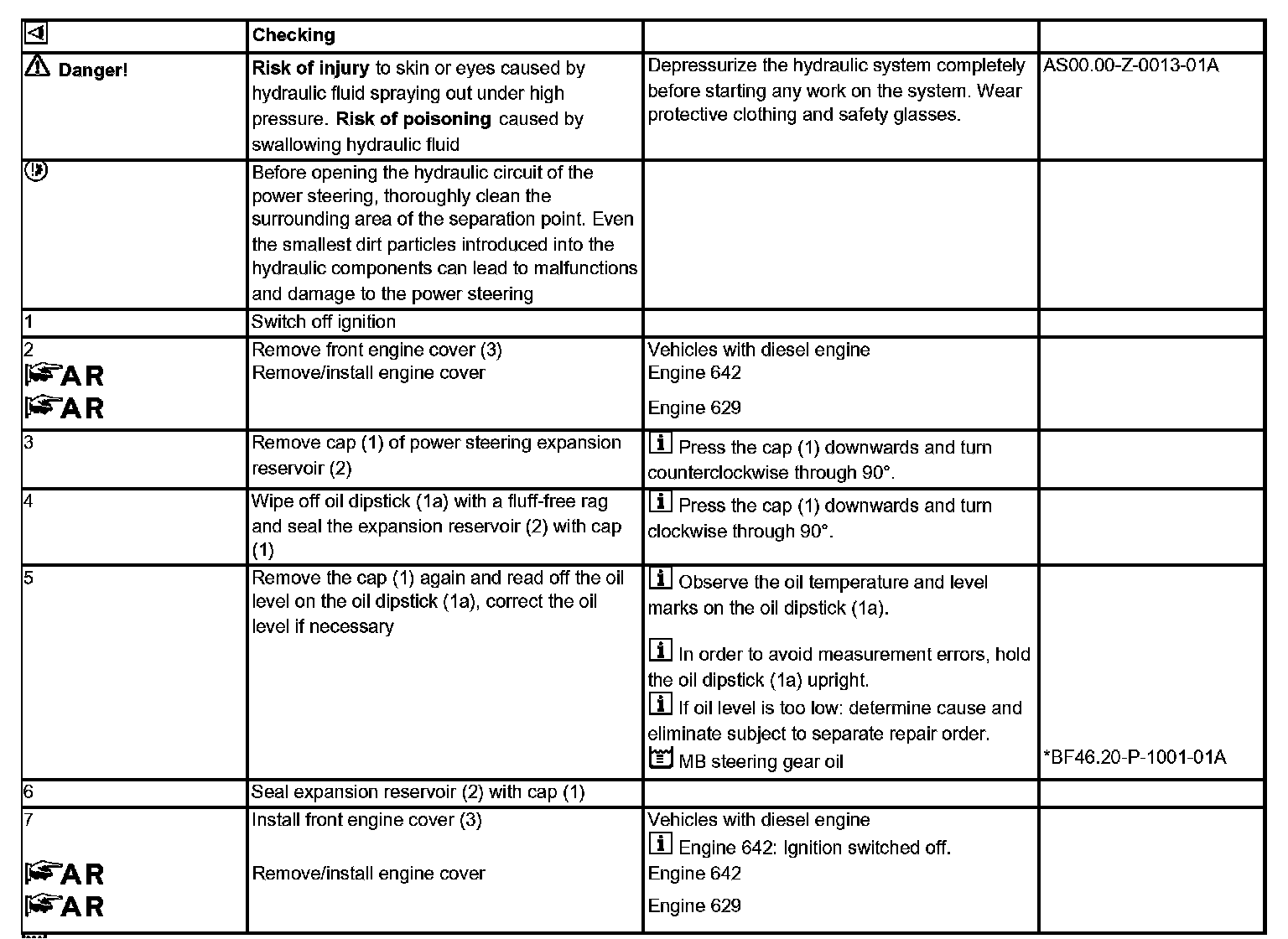

Steps 1-7:

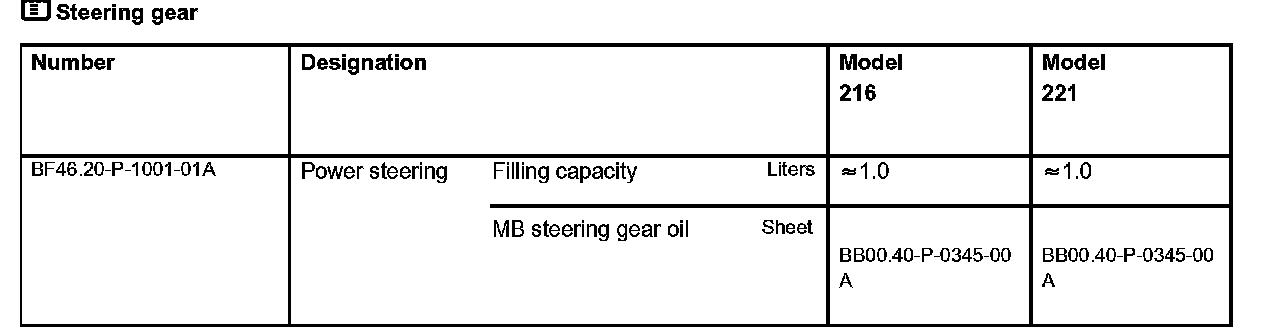

Steering gear:
