Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Maintenance >> Fluids >> Brake Fluid >> Testing and Inspection

Brake Fluid: Testing and Inspection



AP42.10-P-4210SX Brake system - inspect fluid level

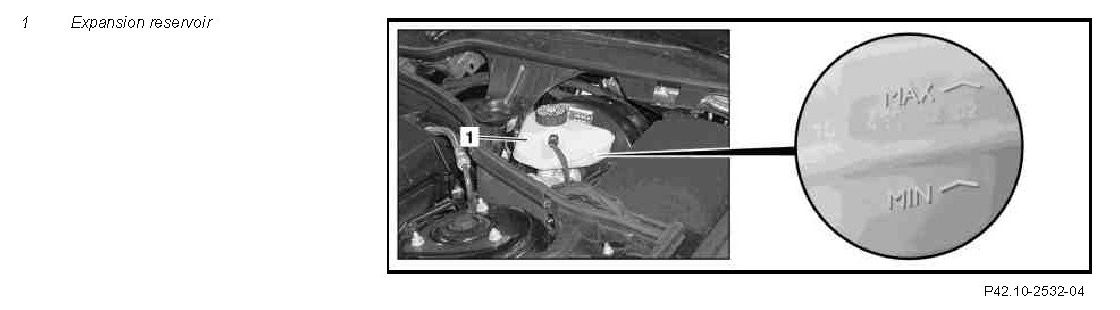

Component Identification:

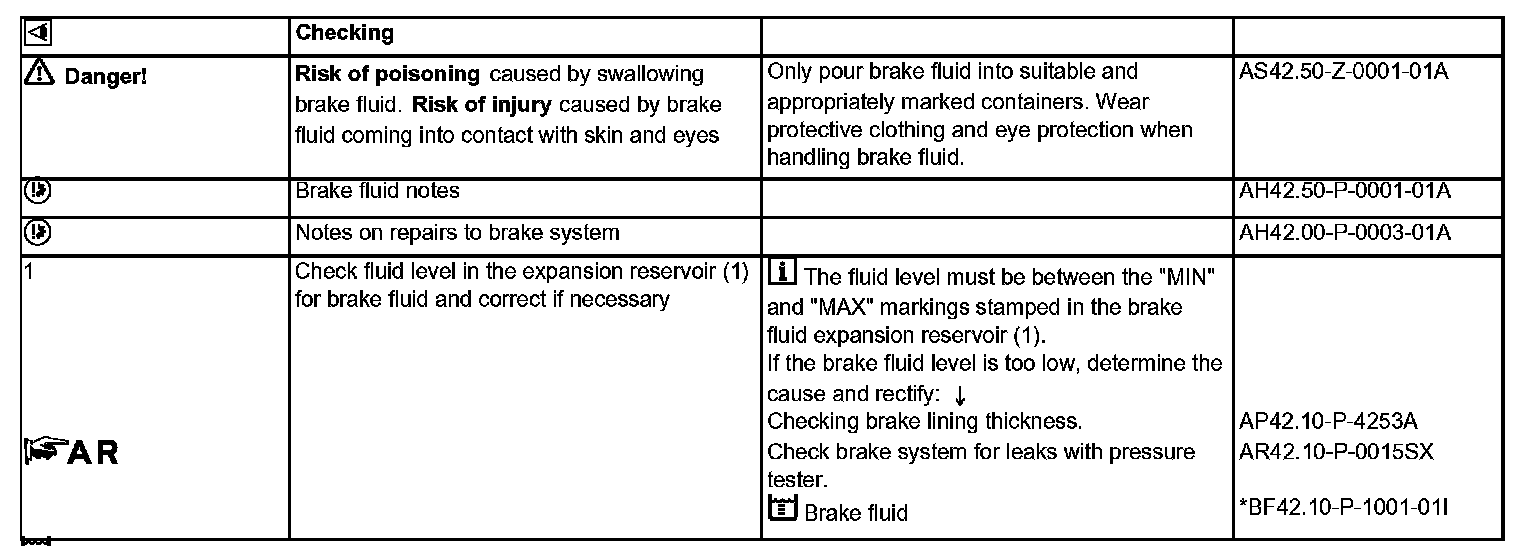

Step 1:




Brake fluid:
