Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Maintenance >> Fluids >> Brake Fluid >> Service and Repair

Brake Fluid: Service and Repair



AP42.00-P-4280SX Replace brake fluid

Component Identification:

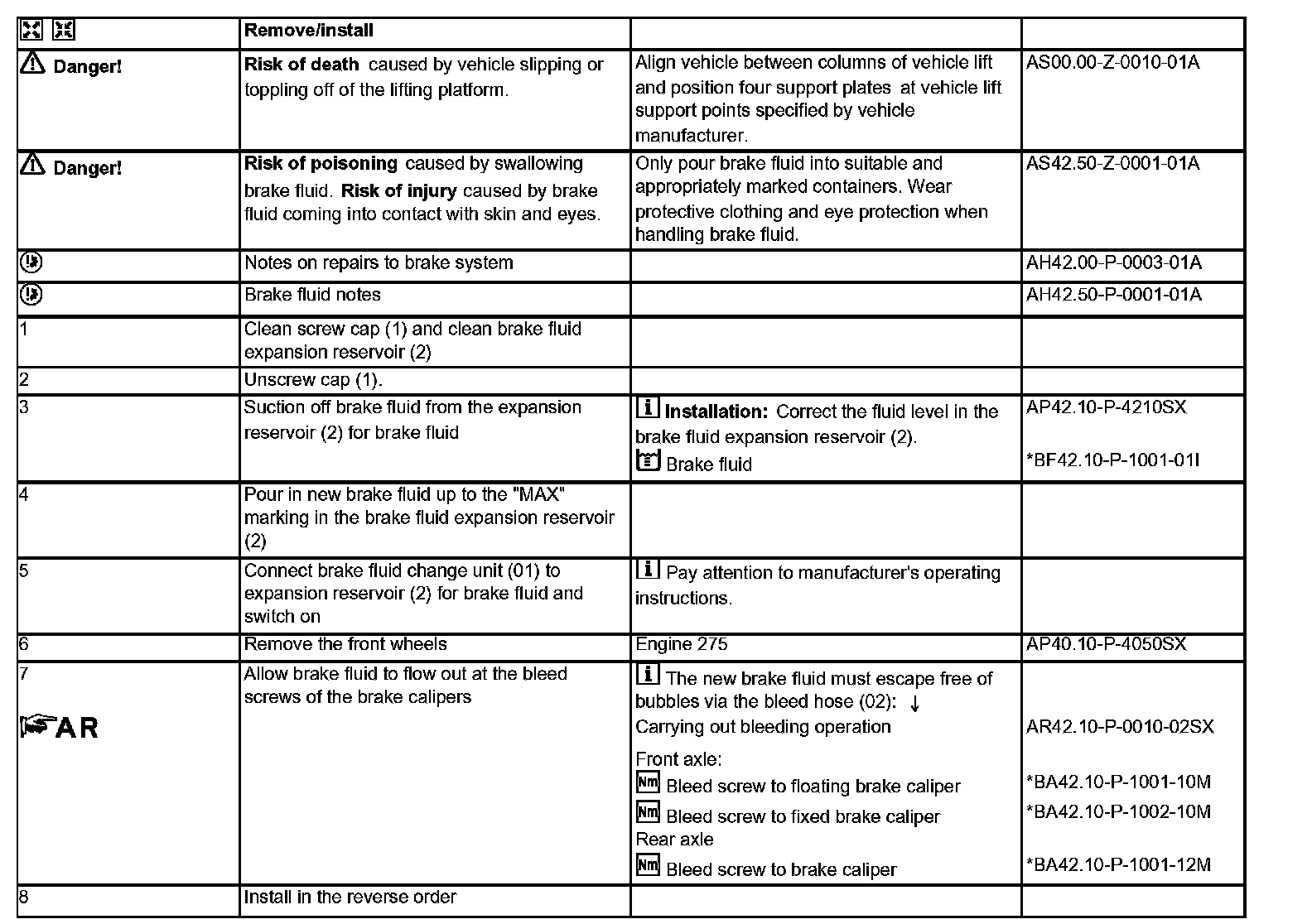

Remove/install Steps 1-8:

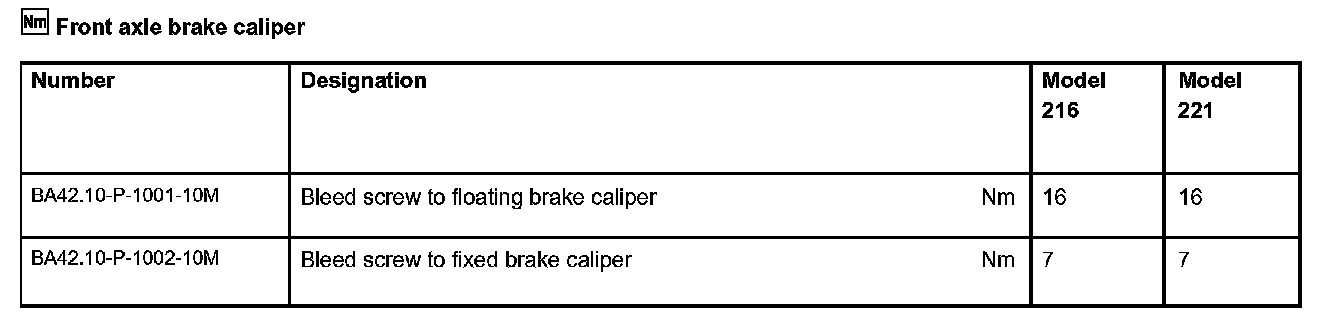

Front axle brake caliper:

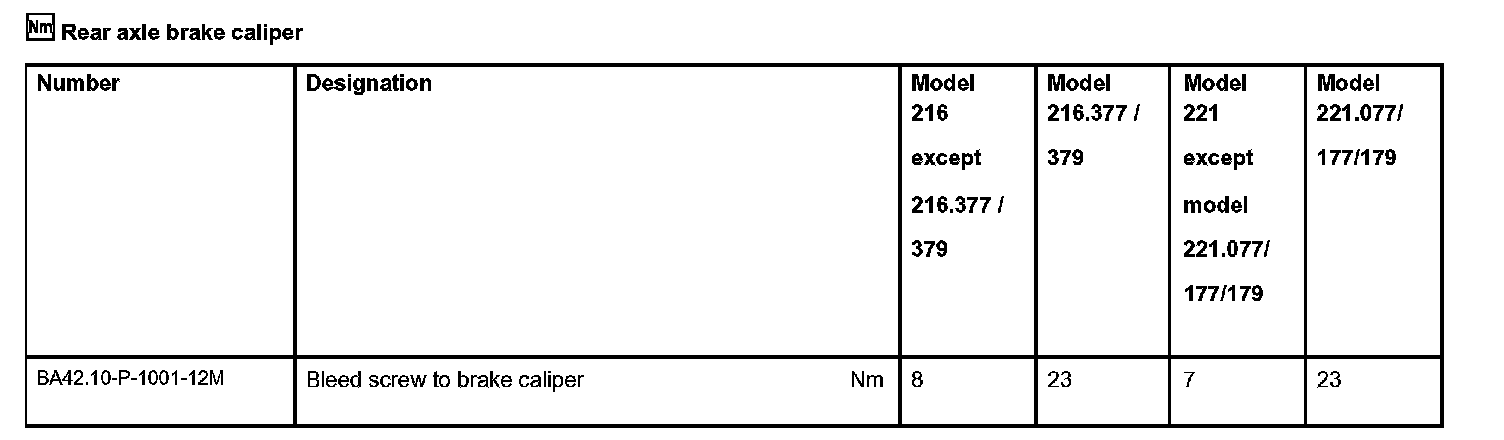

Rear axle brake caliper:




Brake fluid:
