Oil Filter: Service and Repair

AP18.00-P-0101-06TI Replace oil filter element, drain oil filter

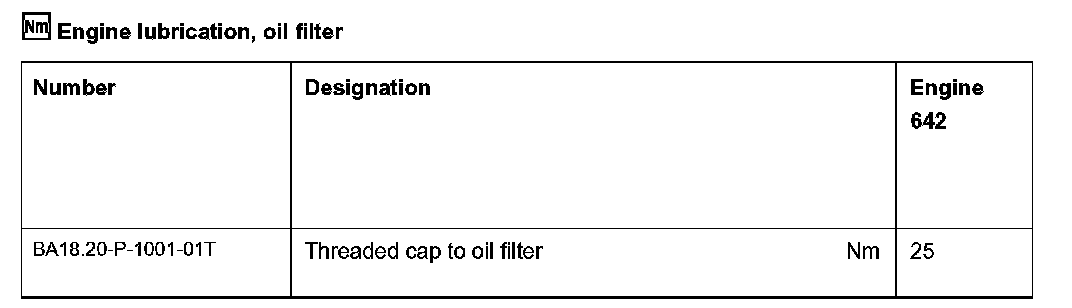

Engine lubrication, oil filter:

Special Tools:

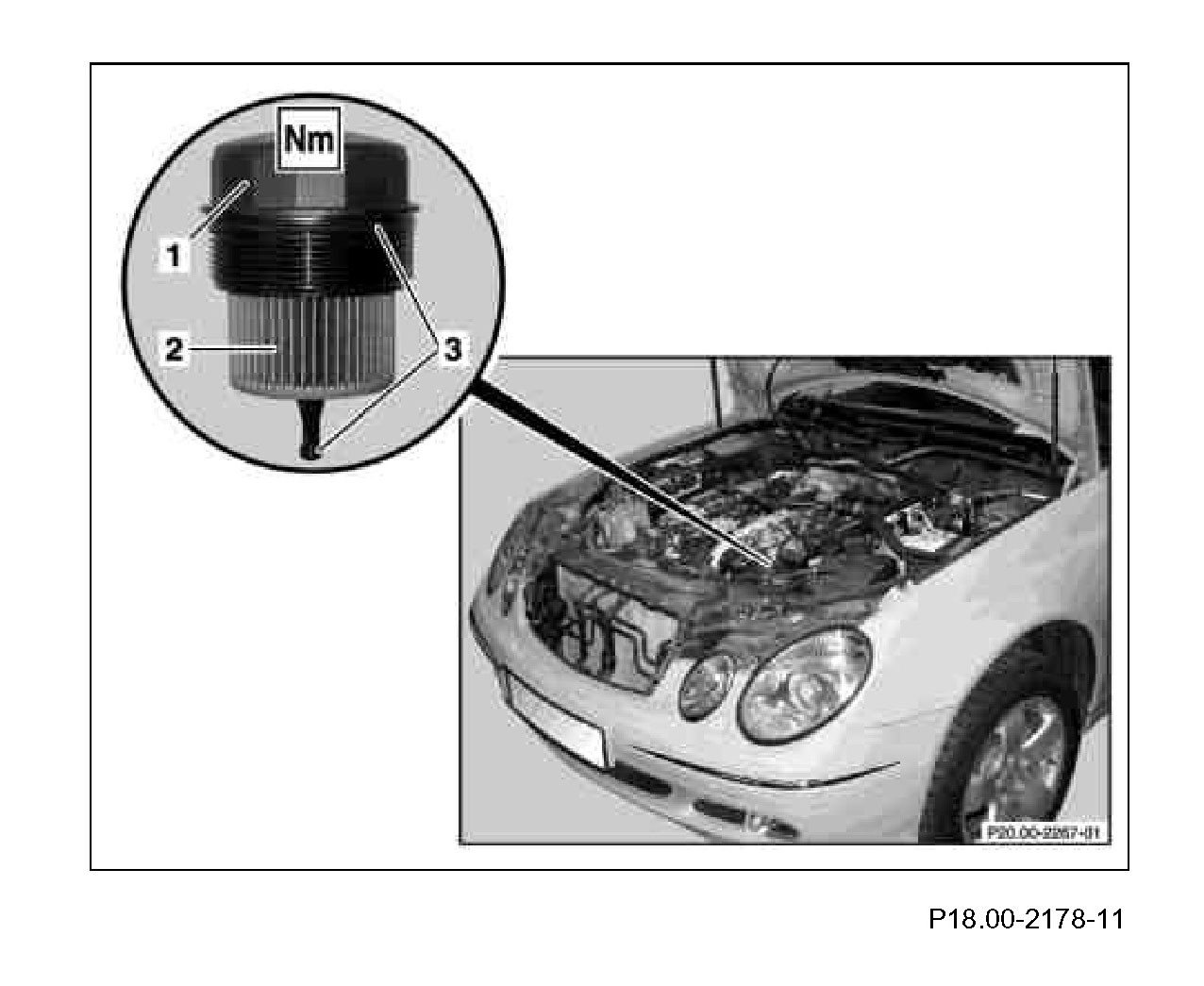

Component Identification:

1 Remove screw cap (1) using socket and remove oil filter element (2).

Use a drain pan to catch the dripping oil.

2 Replace sealing rings (3).
3 Insert new oil filter element (2) in oil filter housing.
4 Screw the screw cap (1) into the oil filter housing using socket.
