AR40.30-P-0402-01SX Carrying Out Distance and Comparison Measurements on Front Axle

AR40.30-P-0402-01SX Carrying out distance and comparison measurements on front axle

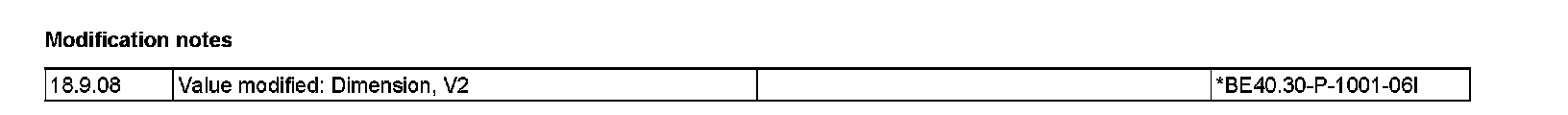

Modification notes:

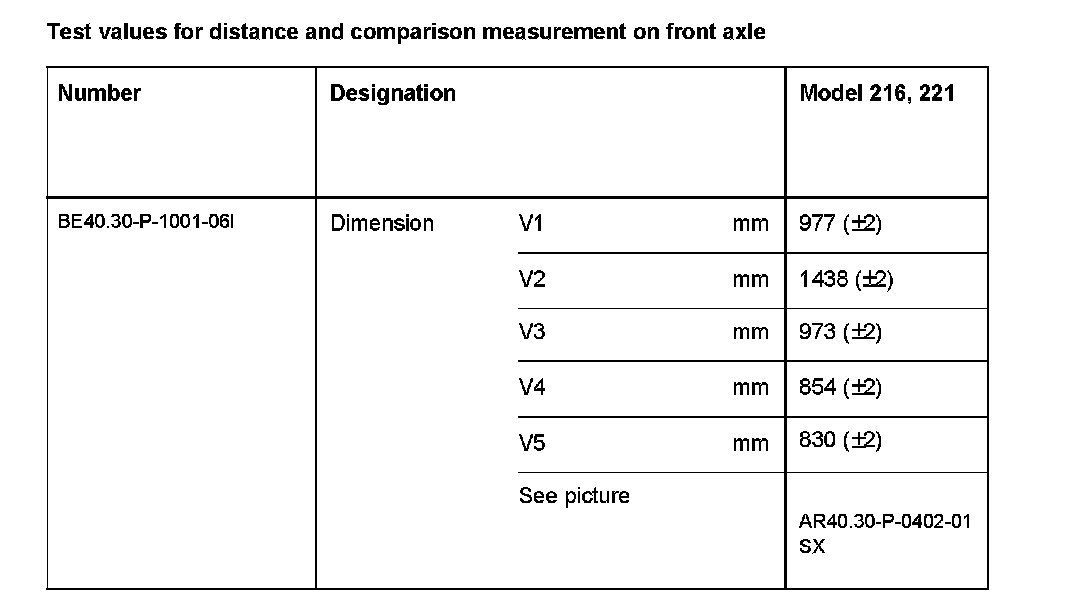

Test values for distance and comparison measurements on front axle:

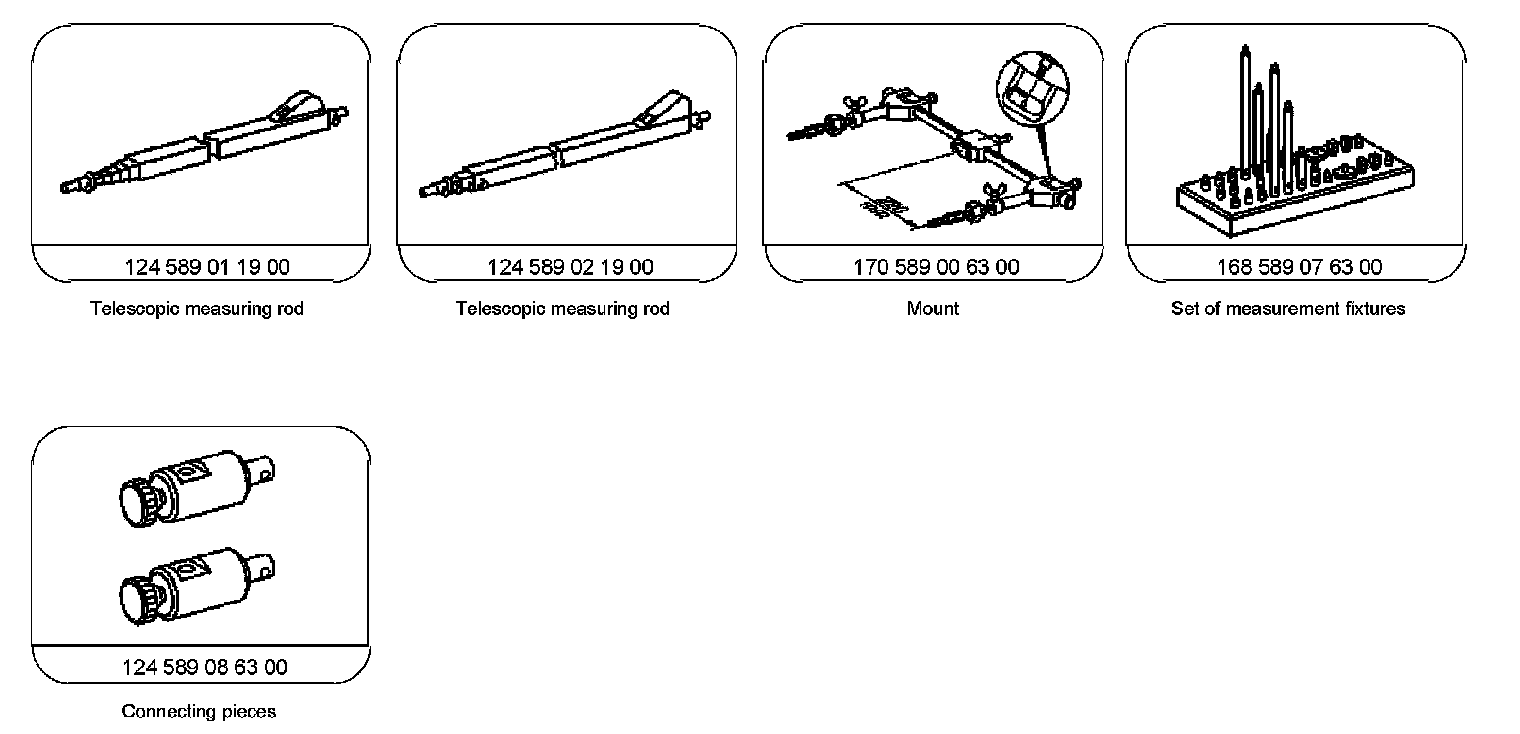

Special Tools:

The measuring set is designed in such a way, that the measuring bolts, according to the measuring points at the vehicle, can be screwed together out of mounting bolts, extensions and measuring tips/bolts.

The configuration of the measuring bolts is shown in the table, where the digits in the column headed "Measuring bolt configuration" are the special tool end numbers.
For example: 02/08/10 = 168 589 07 63 02 (support stud) 168 589 07 63 08 (extension) 168 589 07 63 10 (measuring tip)

Component Identification:

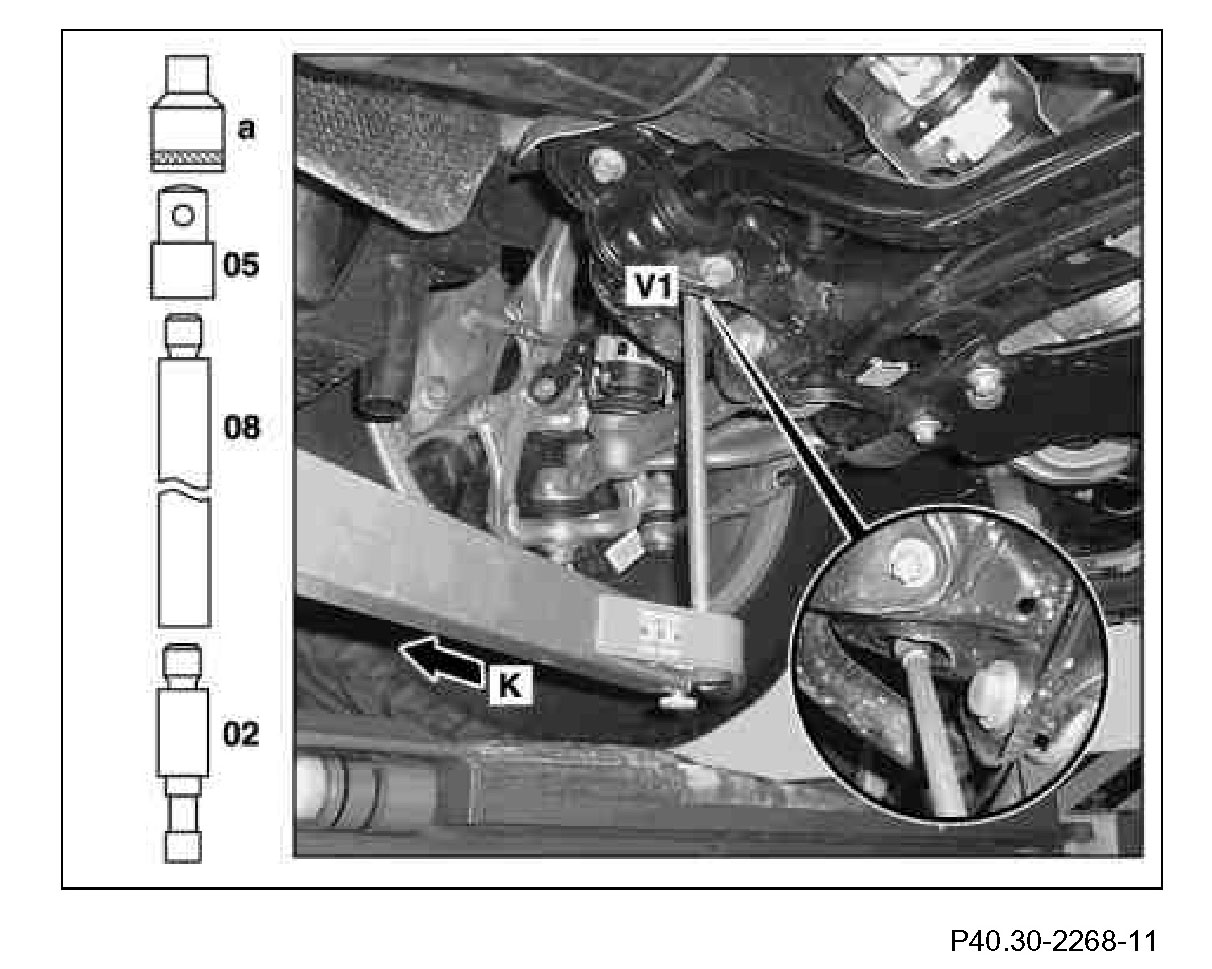

1 Measure distance dimension (V1) from check point (K) to center of Torx(R) bolt head of rear mount of front axle carrier. Measure on the left and right side in each case.

If necessary, unscrew and screw in Torx(R) bolts and check for deformation.

Shown on model 221

Component Identification:

2 Measure distance dimension (V2) from check point (K) to center of Torx(R) bolt head of front mount of front axle carrier. Measure on the left and right side in each case.

If necessary, unscrew and screw in Torx(R) bolts and check for deformation.

Shown on model 221

Component Identification:

3 Measure distance dimension (V3) diagonally to the centering point of the Torx(R) bolt heads between the front and rear bearing of the front axle carrier. Measure on the left and right side in each case.

Shown on model 221

Component Identification:

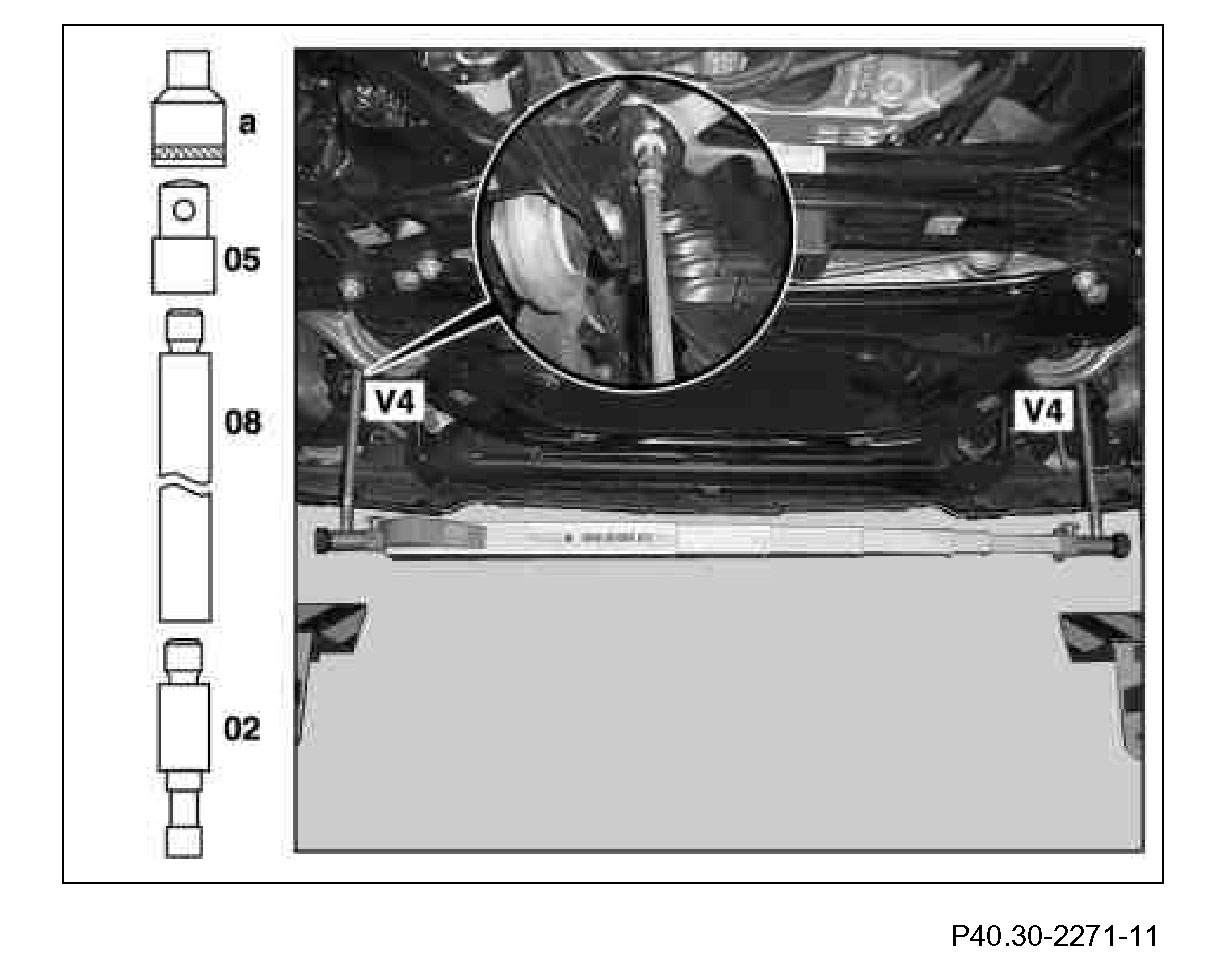

4 Measure distance dimension (V4) from the centering point of the Torx(R) bolt heads between the front bearings of the front axle carrier.

Shown on model 221

Component Identification:

5 Measure distance dimension (V5) from the centering point of the Torx(R) bolt heads between the rear bearings of the front axle carrier.

Shown on model 221
