AR40.30-P-0401-01SX Adjusting Fixtures For Distance and Comparison Measurement According to the Model Concerned

AR40.30-P-0401-01SX Adjusting Fixtures For Distance and Comparison Measurement According to The Model Concerned








170 589 00 63 00
Mount

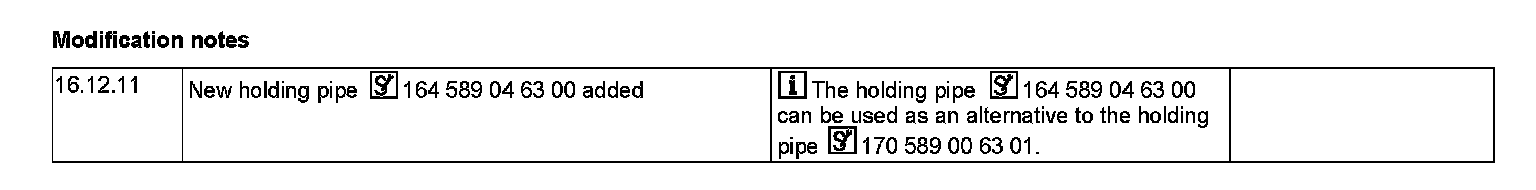

164 589 04 63 00
Retaining tube





Shown here is holding pipe 170 589 00 63 01

06 Telescopic measuring rod
07 Mount
07n Threaded stud
07r Left support
07s Right support
08 Retaining tube
024 Measuring tip
024b Retaining bolt with bubble level

a Specified adjustment dimension for left-side support
b Specified adjustment dimension for right-side support





1 Insert holding pipes (08) into suspension (07).
Both holding pipes (08) can be used.

Shown here is holding pipe 164 589 04 63 00

06 Telescopic measuring rod
07 Mount
07n Threaded stud
07r Left support
07s Right support
08 Retaining tube
024 Measuring tip
024b Retaining bolt with bubble level

a Specified adjustment dimension for left-side support
b Specified adjustment dimension for right-side support





2 Slide suspension (07) as far as the end stop on the threaded bolts.
3 Align suspension (07) horizontally
4 Set dimensions (a) and (b) on mounts (07r, 07s), see following table.
The suspension (07) enables the vehicle center to be displayed with the check point (K).

shown on model 221

07 Mount
07r Left support
07s Right support
024b Retaining bolt with bubble level

K Reference point (centered)
