AR40.20-P-0263SX Adjust Camber and Caster at the Front Axle

AR40.20-P-0263SX Adjust Camber And Caster At The Front Axle
MODEL 216, 221.0 /1

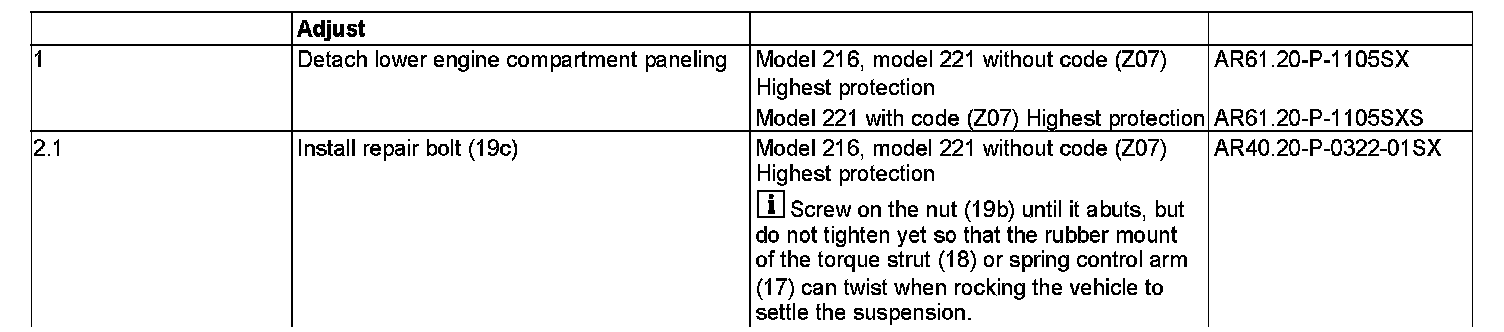

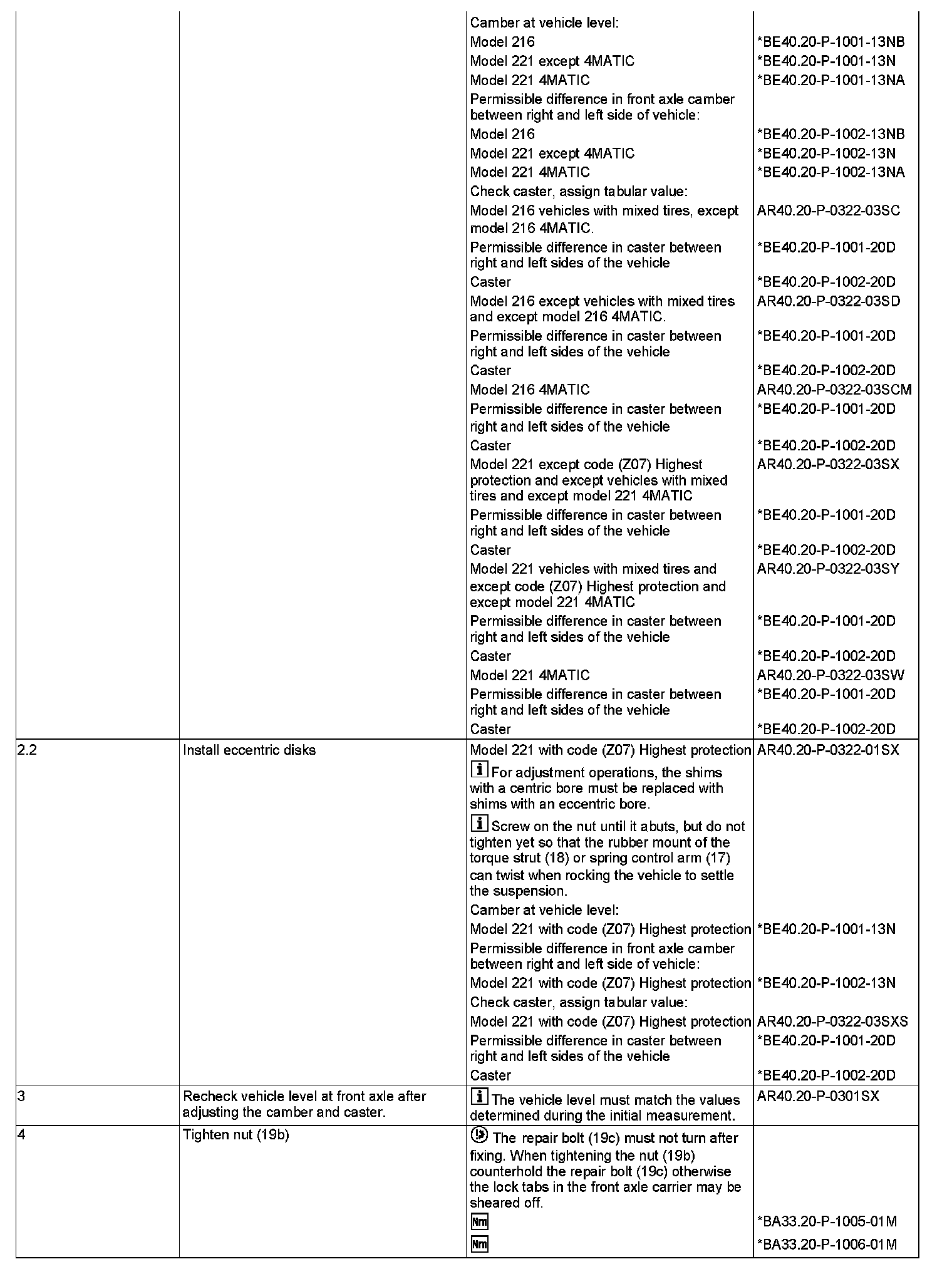

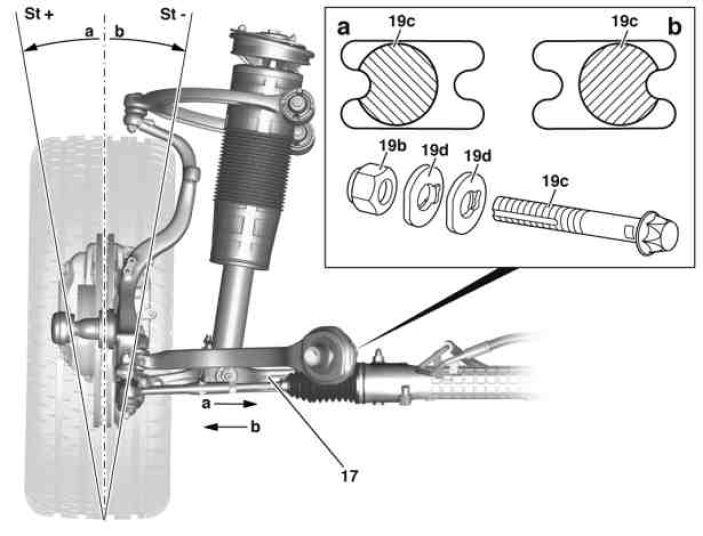

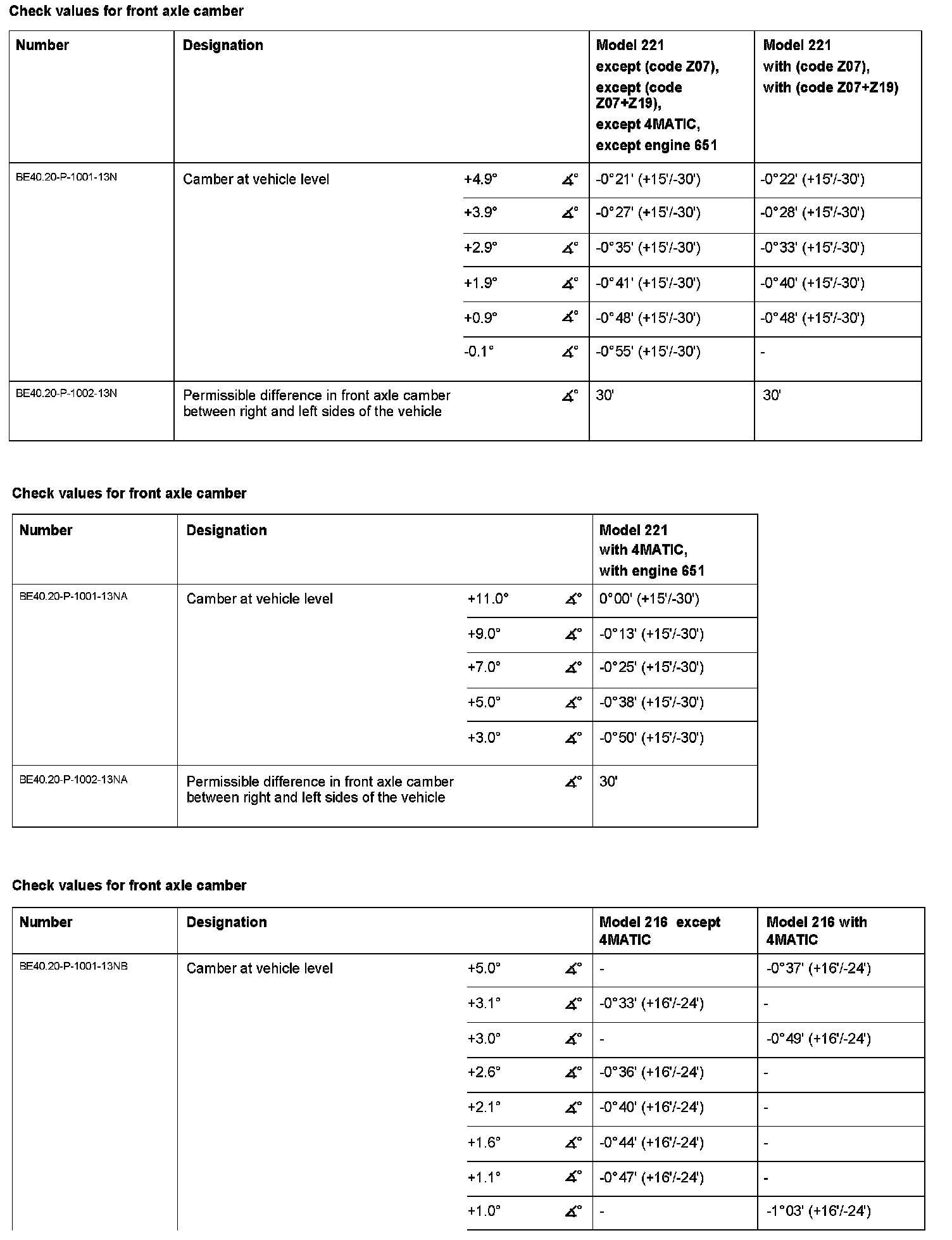

Camber, shown on model 221 without 4MATIC, without code (Z07) Highest protection

17 Spring control arm
19b Repair kit nut
19c Repair bolt
19d Shims

St+ positive camber
St- negative camber

a Adjusting the spring control arm towards the vehicle center causes a positive camber change
b Adjusting the spring control arm towards the outside of the vehicle causes a negative camber change

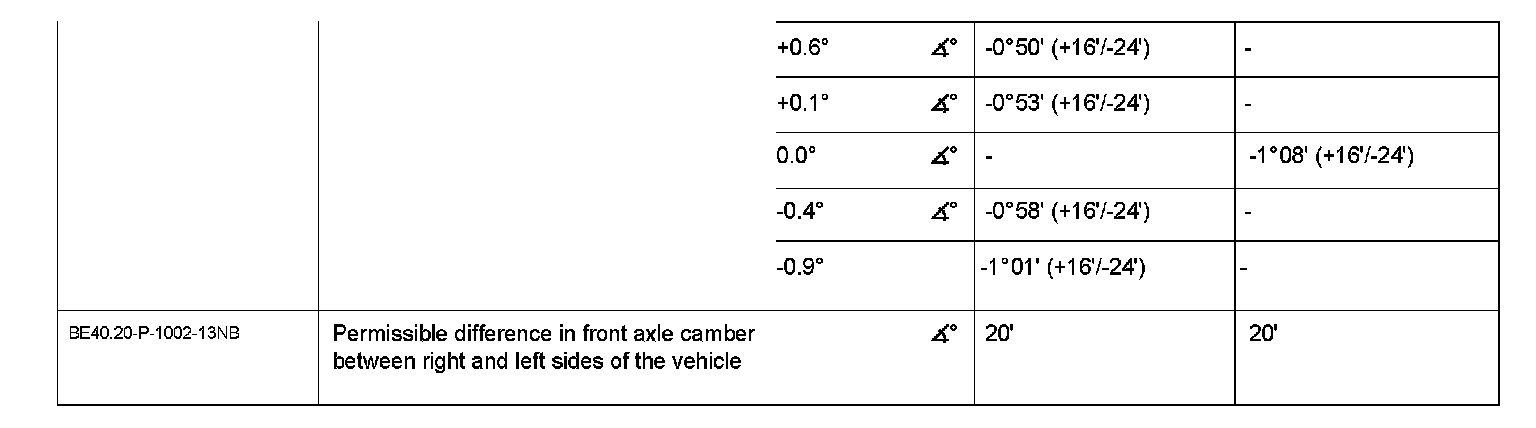

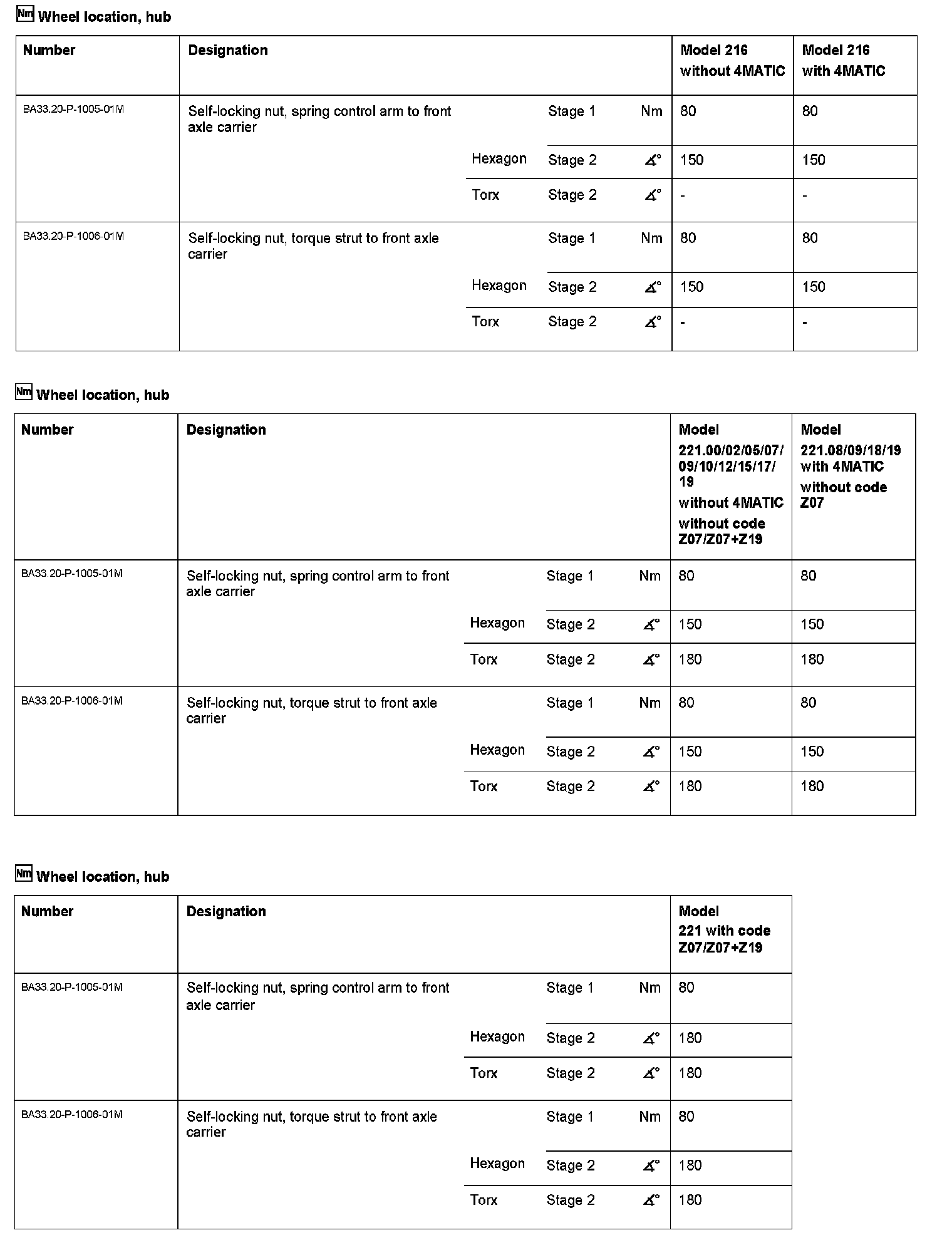

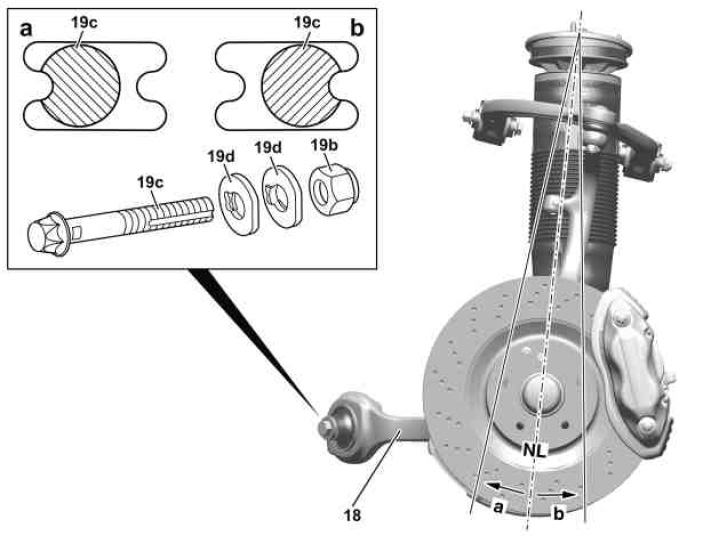

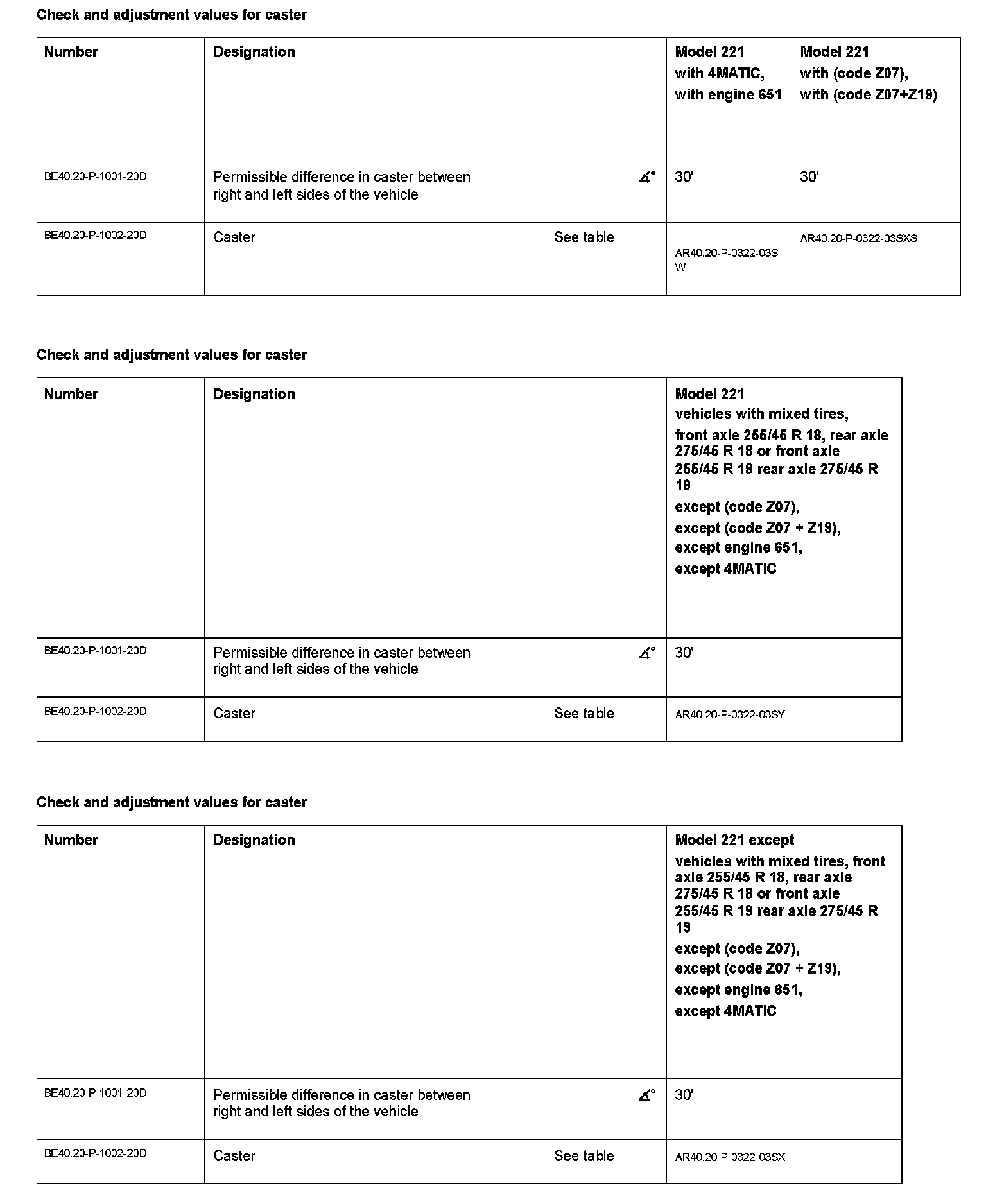

Caster, shown on model 221 without 4MATIC, without code (Z07) Highest protection

18 Torque strut
19b Repair kit nut
19c Repair bolt
19d Shims

NL Caster

a Adjusting the torque strut towards the center of the vehicle increases the caster:
b Adjusting the torque strut towards the outside of the vehicle reduces the caster
