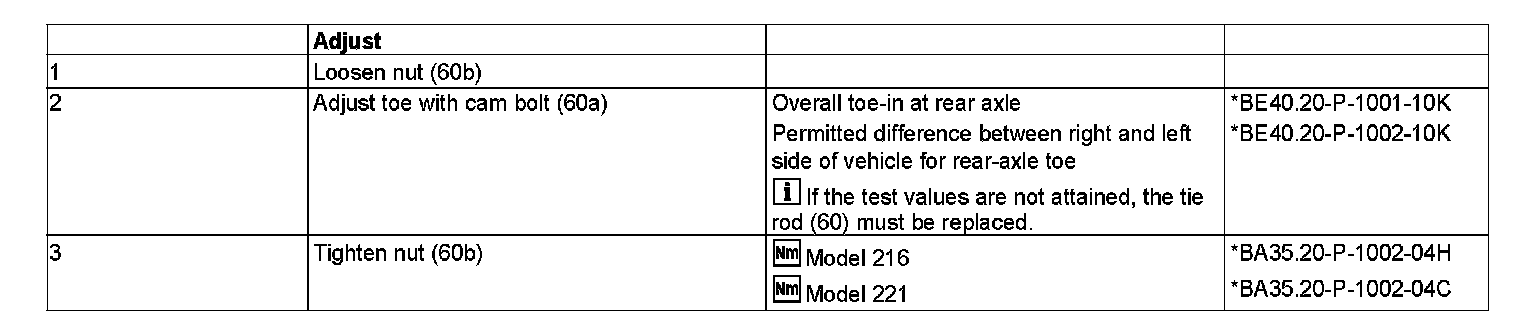

AR40.20-P-0261SX Adjust Rear-Axle Toe
AR40.20-P-0261SX Adjust Rear-Axle Toe
AR40.20-P-0261SX Adjust Rear-Axle Toe
MODEL 216, 221.0 /1
60 Tie rod
60a Cam bolt
60b Nut
