AR82.10-P-0004SX Remove/Install Front Axle Level Sensors
AR82.10-P-0004SX Remove/Install Front Axle Level Sensors
AR82.10-P-0004SX Remove/Install Front Axle Level Sensors

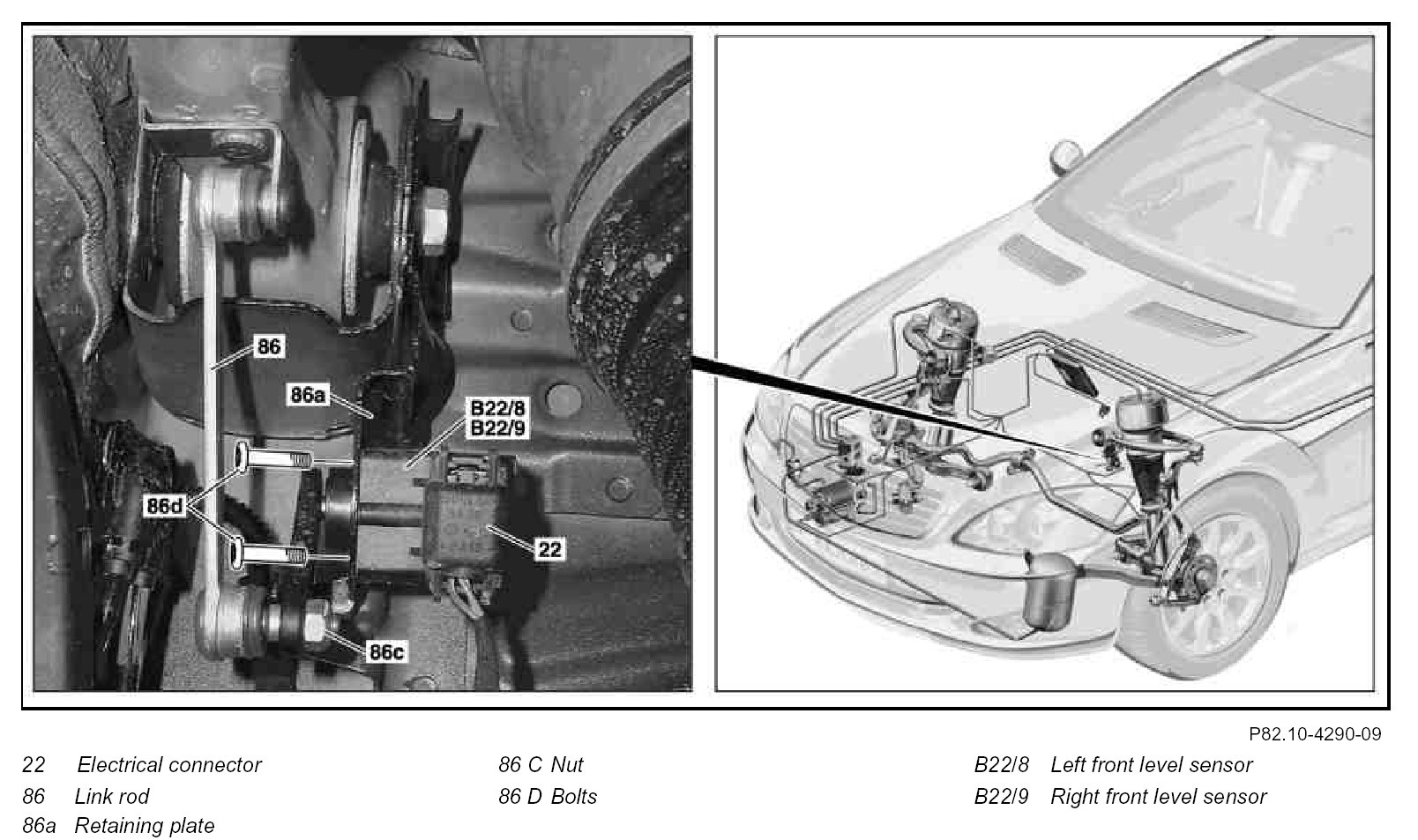

Component Identification:
Modification Notes:

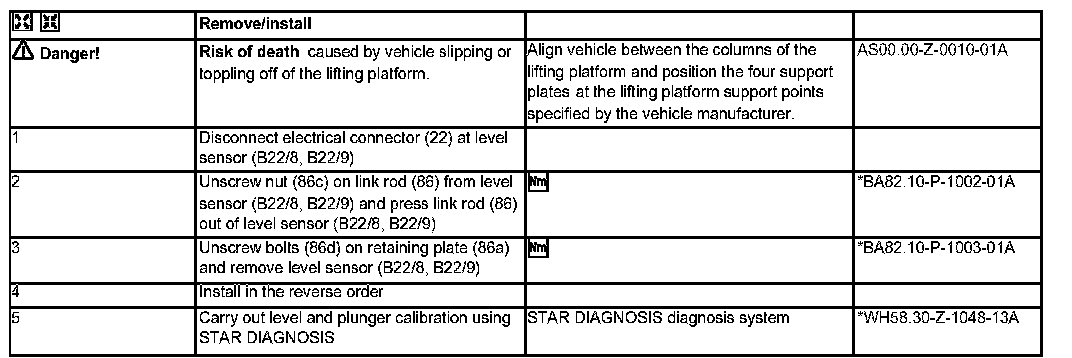

Steps 1 - 5:

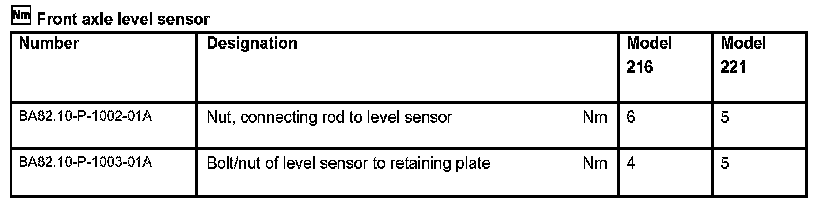

Front Axle Level Sensor:

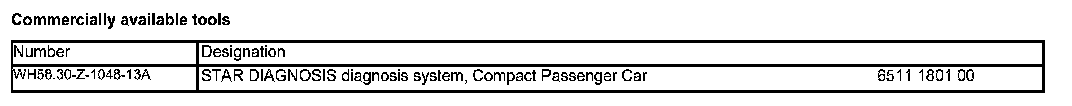

Commercially Available Tools:
