AR82.10-P-4730SX Remove/Install Lamp Unit

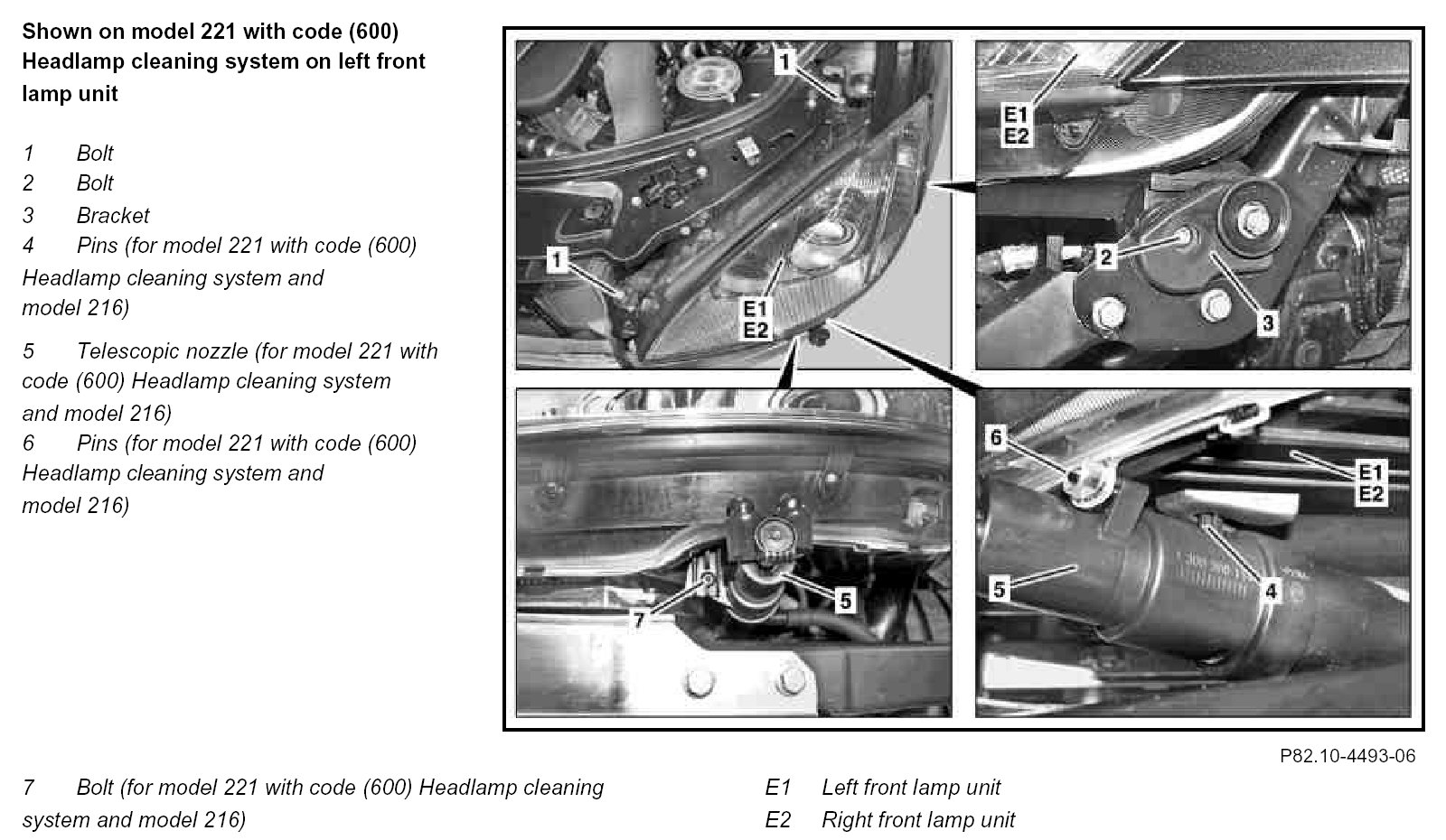

Component Identification:

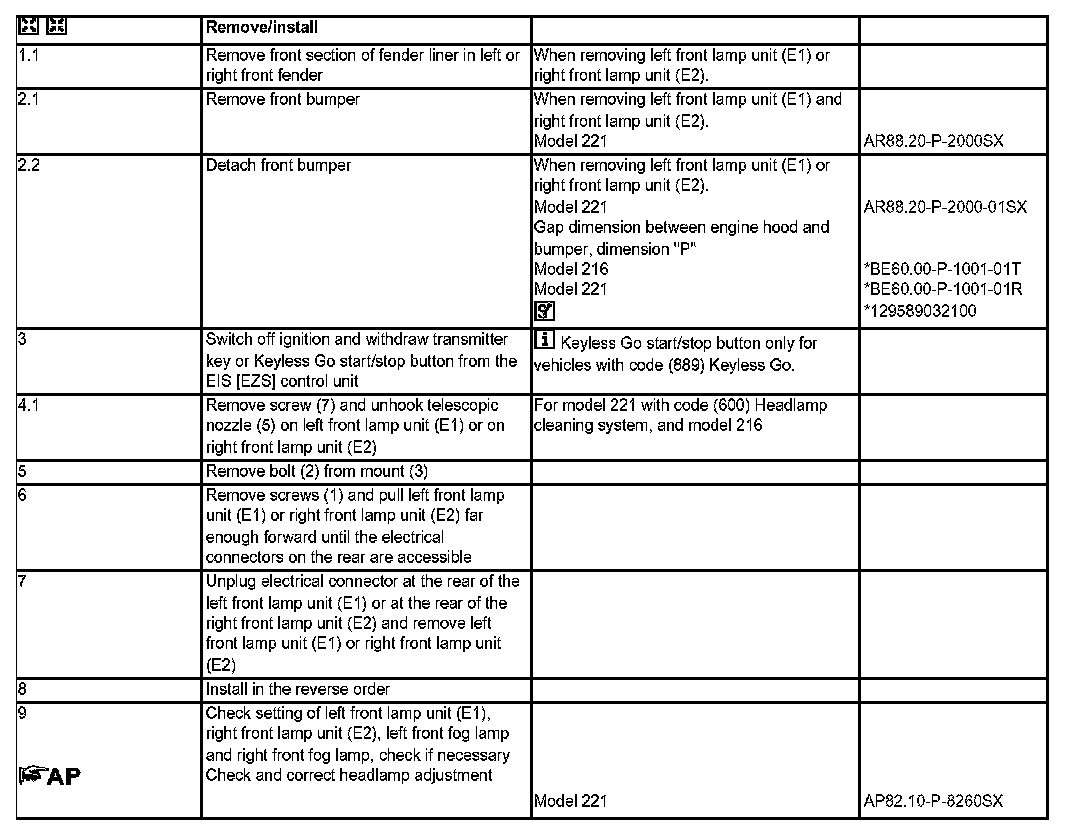

Steps 1.1 - 9:

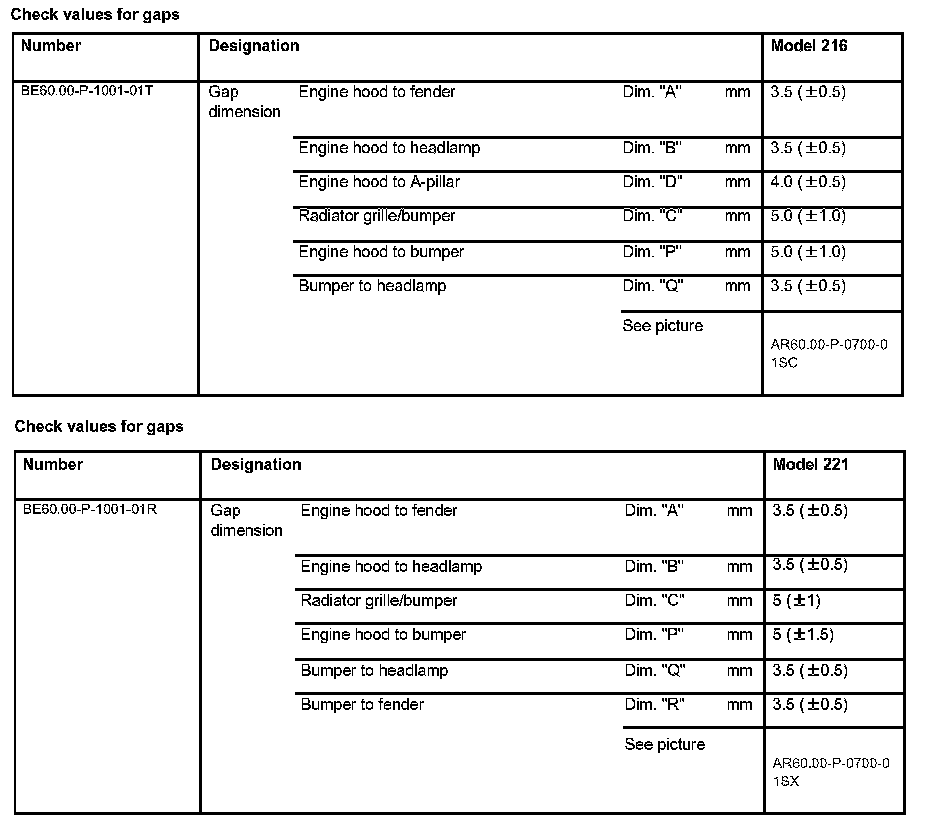

Check Values For Gaps:
Special Tools:
