Fog/Driving Lamp: Service and Repair
AR82.10-P-5103SX Remove/Install Fog Lamp

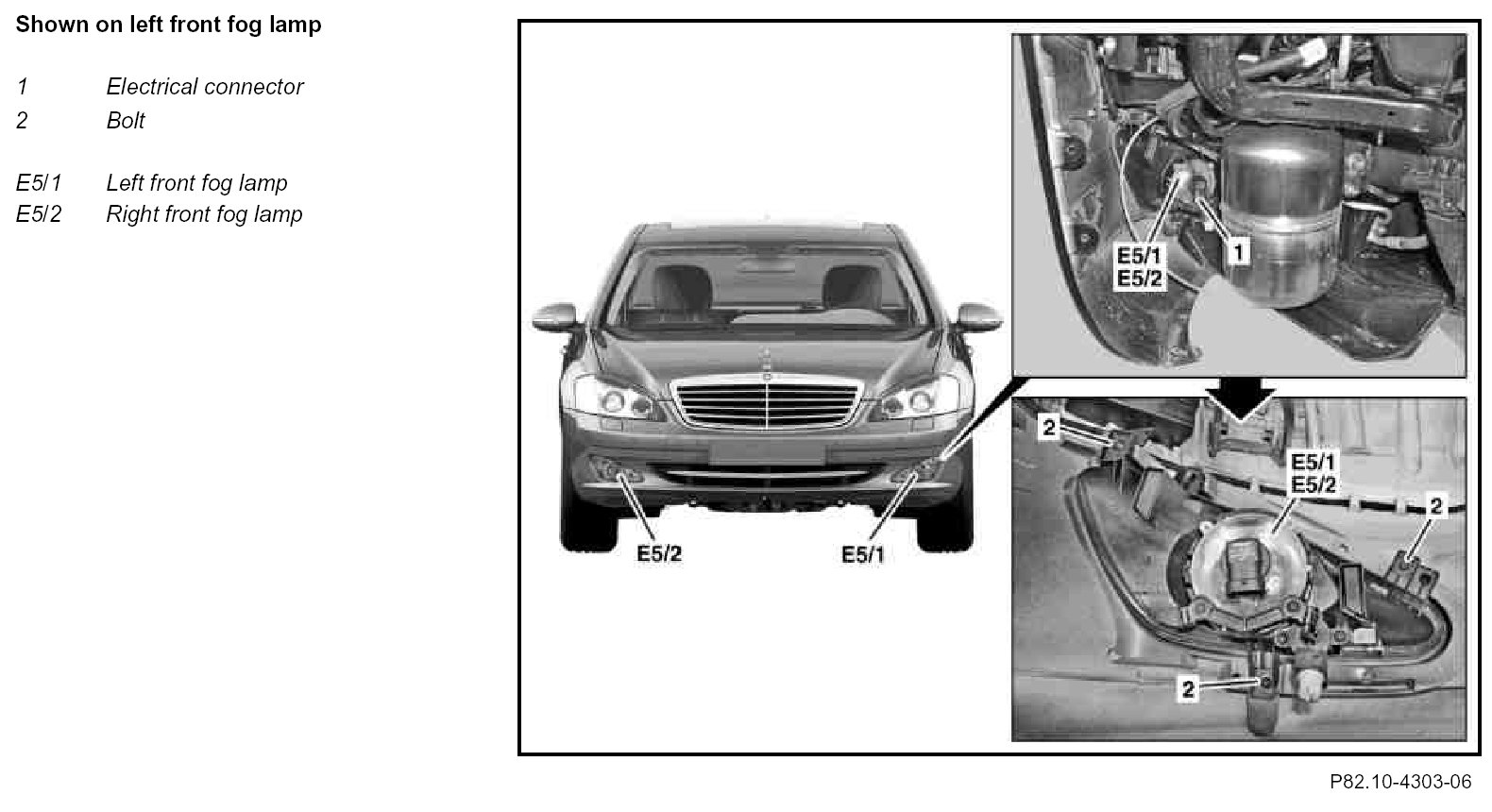

Component Identification:

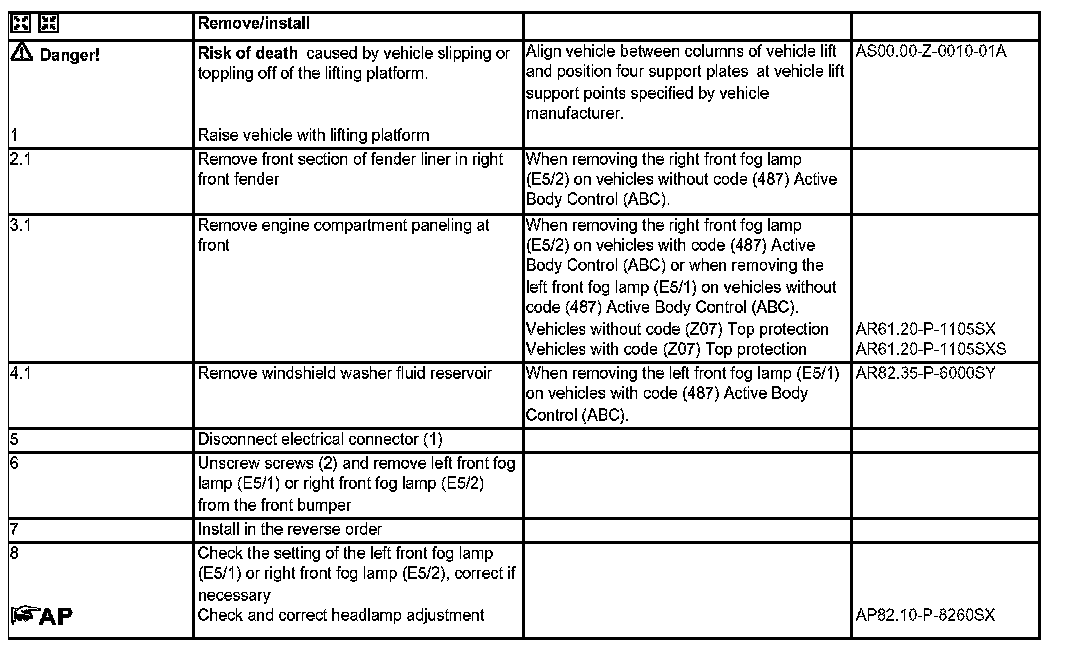

Steps 1 - 8:
