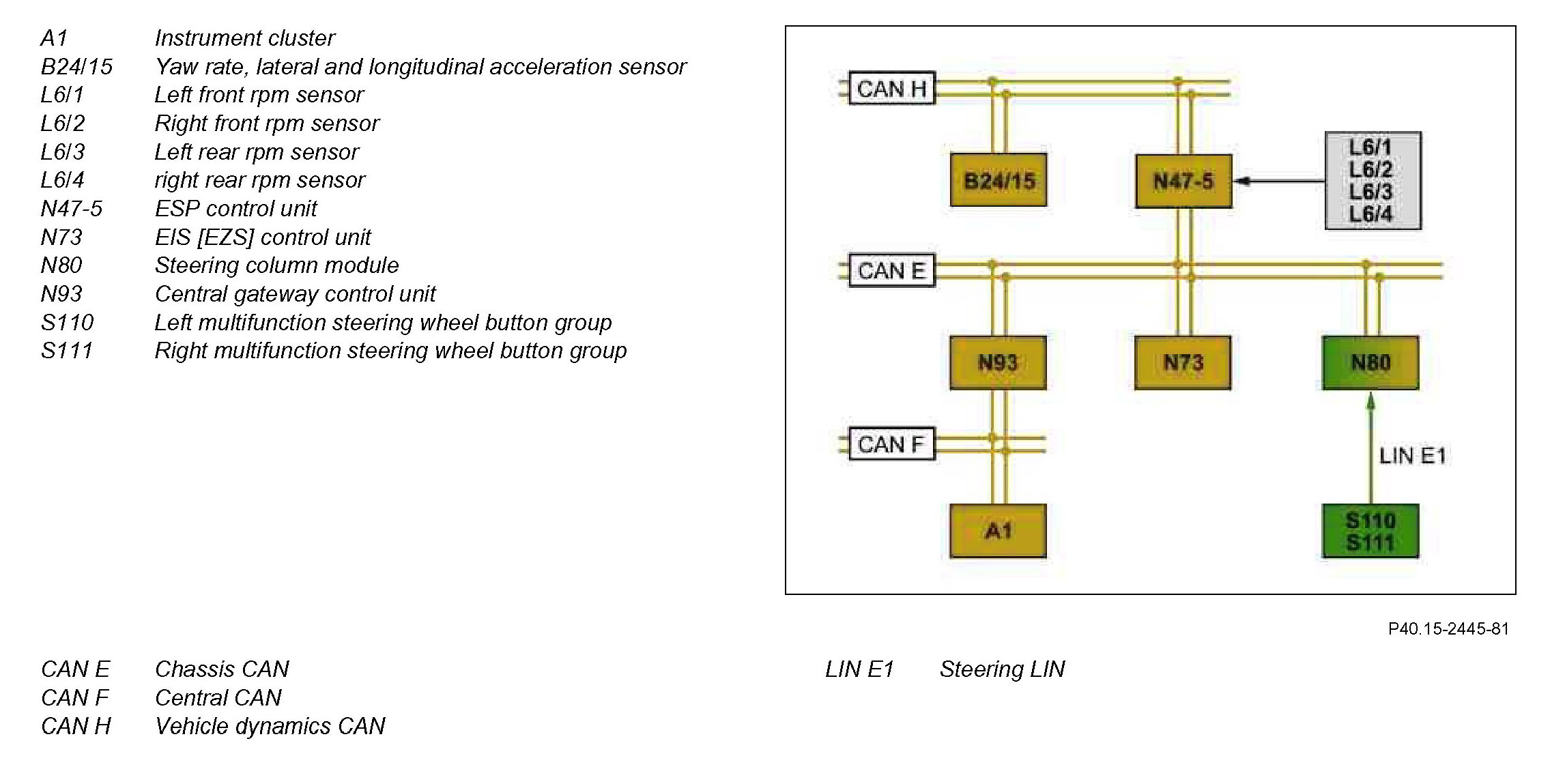

GF40.15-P-0002-02LE Tire Pressure Loss Warning (RDW), Block Diagram



GF40.15-P-0002-02LE Tire pressure loss warning (RDW), block diagram
- except CODE (494) USA version


Component Identification:
