Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Tire Monitoring System >> Description and Operation >> GF40.15-P-0001-07LEA Tire Pressure Monitor (TPM (RDK)) Block Diagram

GF40.15-P-0001-07LEA Tire Pressure Monitor (TPM (RDK)) Block Diagram

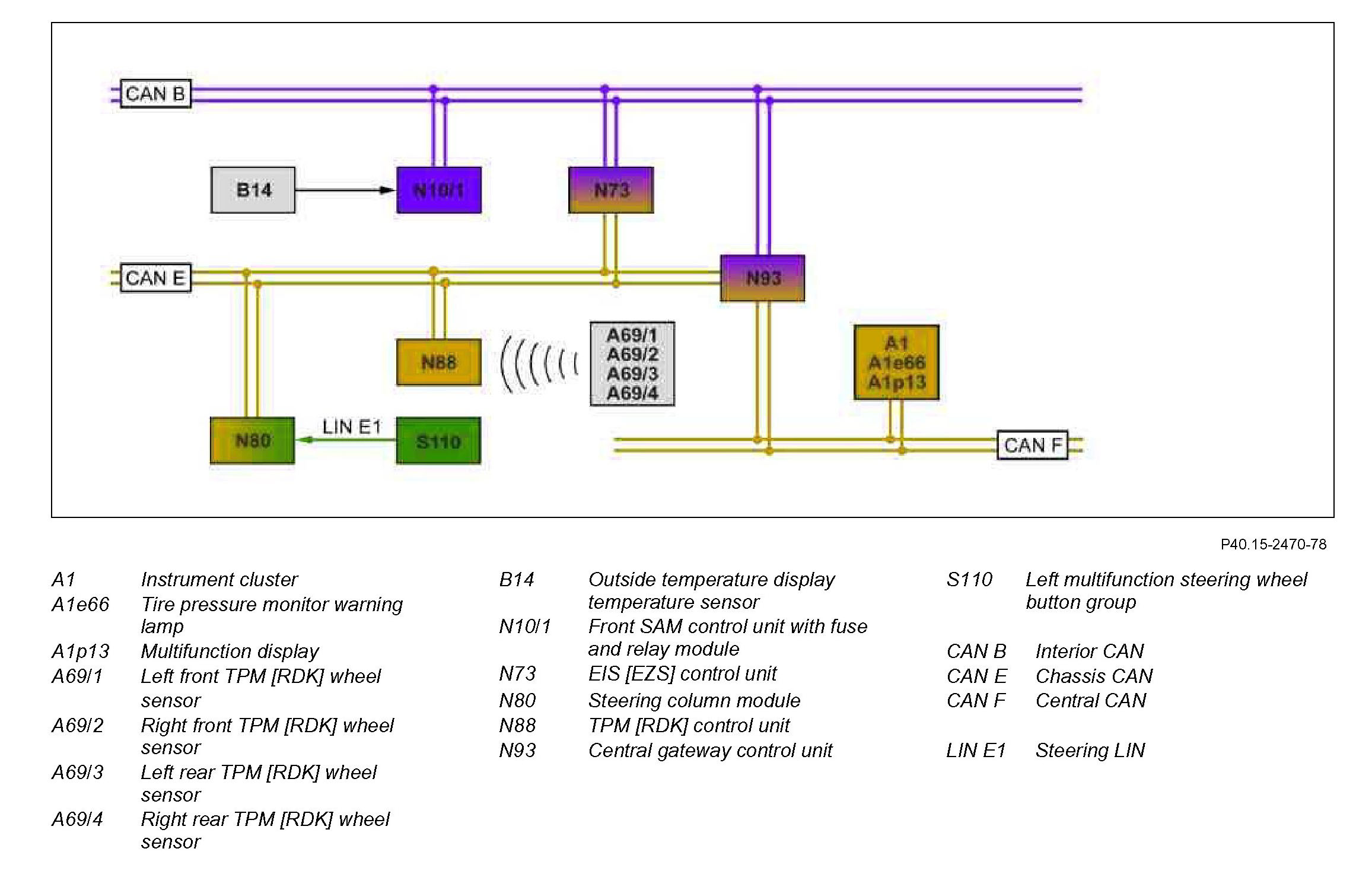

GF40.15-P-0001-07LEA Tire pressure monitor (TPM [RDK]) block diagram
- with CODE (475) Tire pressure monitor (premium)
