GF40.15-P-0001-06LEA Tire Pressure Monitor (TPM (RDK)) Location of Components

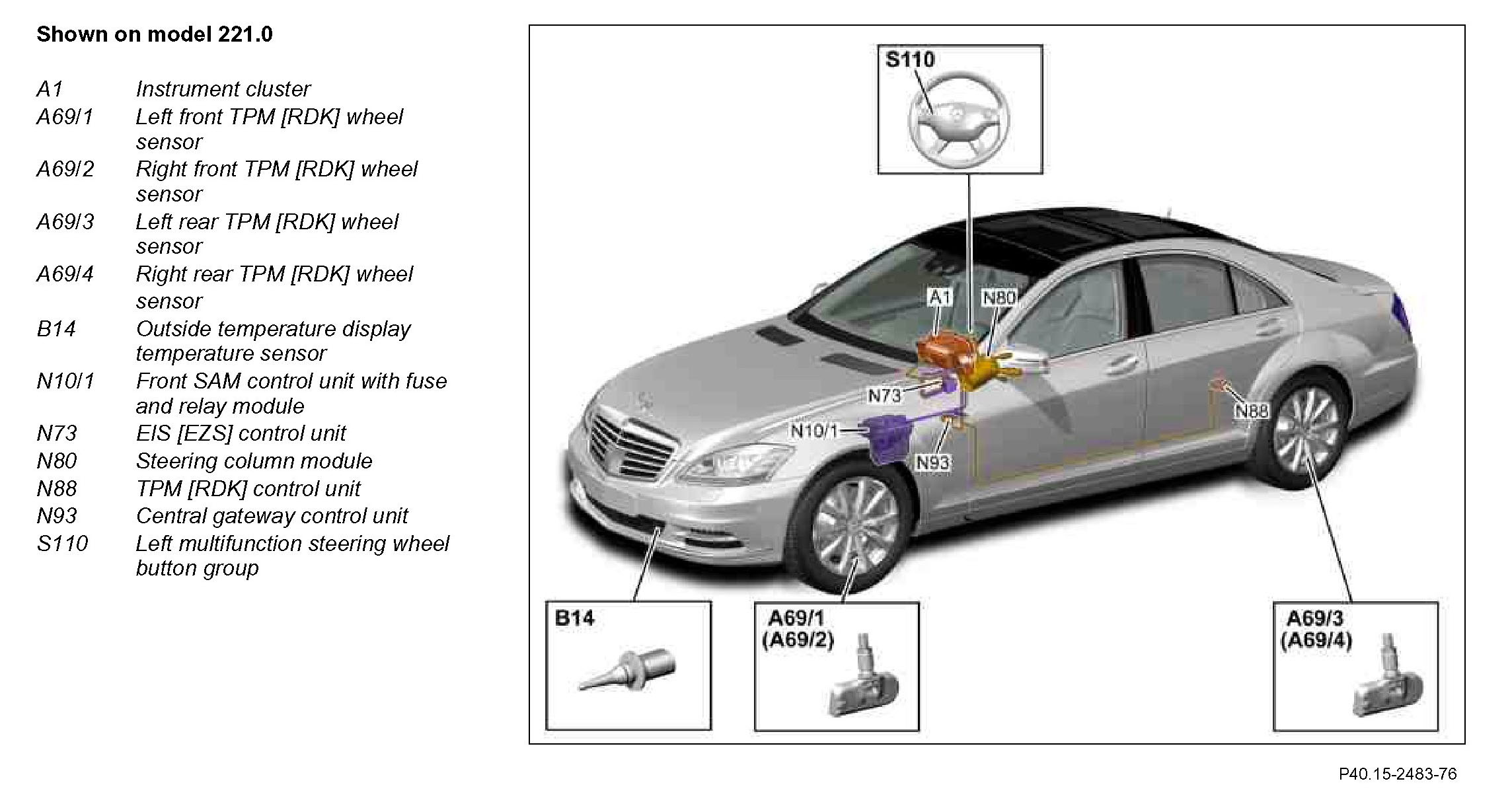

GF40.15-P-0001-06LEA Tire pressure monitor (TPM [RDK]) location of components
- with CODE (475) Tire pressure monitor (premium)


Component Identification:
